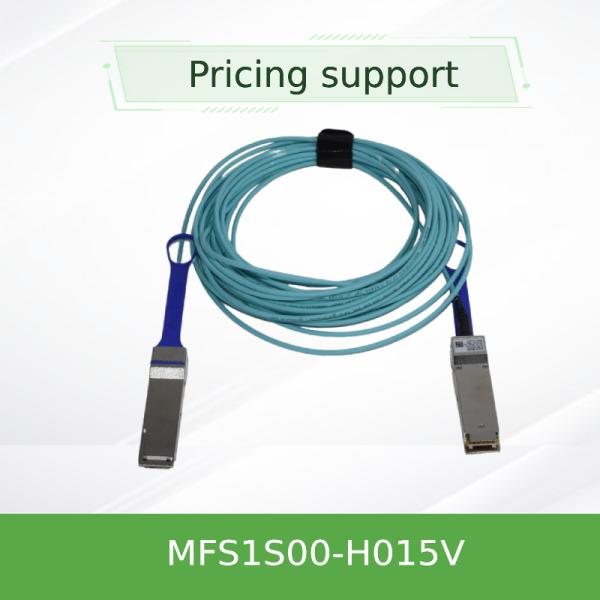

MFS1S00-H015V 200G QSFP56 Active Optical Cable

Engineered for high-speed data transmission, the NVIDIA® MFS1S00-H015V is a premium Optical Fiber Cable solution supporting 200Gb/s InfiniBand HDR and Ethernet networks. This passive fiber cable alternative delivers exceptional performance with extended reach, high reliability, and seamless integration into existing infrastructure.

Key Characteristics

• 200Gb/s bandwidth with 4x 50Gb/s PAM4 lanes
• Hot-pluggable QSFP56 form factor
• Up to 100-meter reach over multi-mode fiber
• Low power consumption: 5.0W typical per end
• Digital diagnostics monitoring (DDM) support

Core Technology

This high-performance Optical Fiber Cable adheres to SFF-8665 and SFF-8636 standards, utilizing advanced VCSEL technology for efficient optical conversion. It features programmable equalization and built-in diagnostics for optimal signal integrity.

Operation Principle

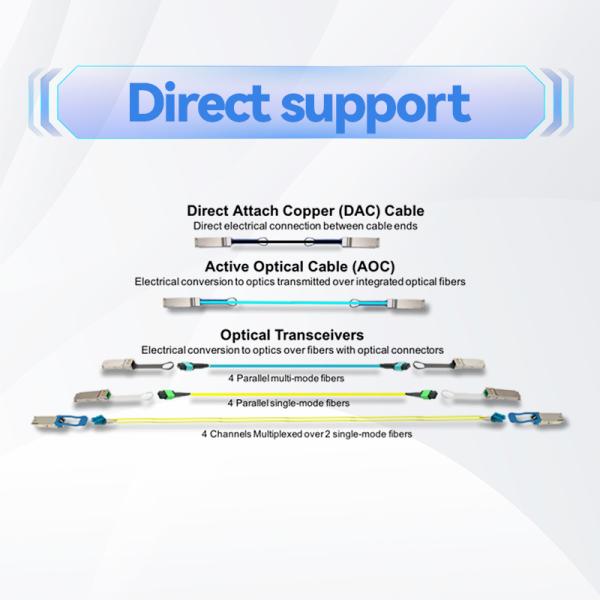

The MFS1S00 converts electrical signals to optical signals through integrated transceivers. Each cable end houses four independent fiber channels operating at 50Gb/s, ensuring robust and high-fidelity data transmission across data center environments.

Typical Applications

• Data center spine-leaf architectures
• High-performance computing clusters
• Artificial intelligence and machine learning infrastructure
• Cloud service provider networks
• Storage area networks (SAN)

Technical Specifications

Competitive Advantages

• Superior bandwidth density compared to copper solutions
• Extended reach without signal degradation
• Lower power consumption per gigabit
• Hot-swappable design for minimal downtime
• Comprehensive diagnostic capabilities

Customer Support

We provide global logistics support, 24/7 technical consultation, and full warranty coverage. Our expert team offers integration services and customized solutions to meet specific network requirements.

Frequently Asked Questions

Q: What makes this Optical Fiber Cable suitable for HDR InfiniBand?
A: It supports 200Gb/s data rates with PAM4 modulation and complies with InfiniBand HDR standards.

Q: Can this cable be used in existing 100G infrastructure?
A: Yes, it offers backward compatibility through rate selection functionality.

Q: What is the typical deployment scenario for this passive fiber cable?

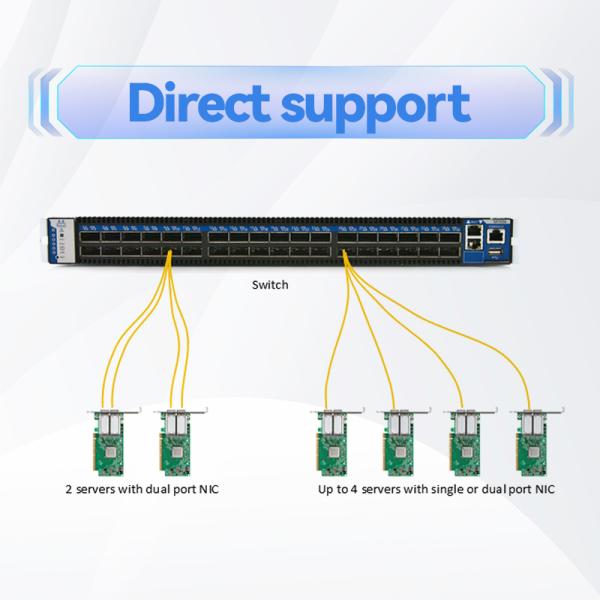

A: Ideal for connecting top-of-rack switches to aggregation layers in data centers.

Installation Guidelines

• Maintain minimum bend radius of 30mm
• Implement proper ESD protection during handling
• Verify compatibility with host equipment
• Keep protective caps installed until ready for use
