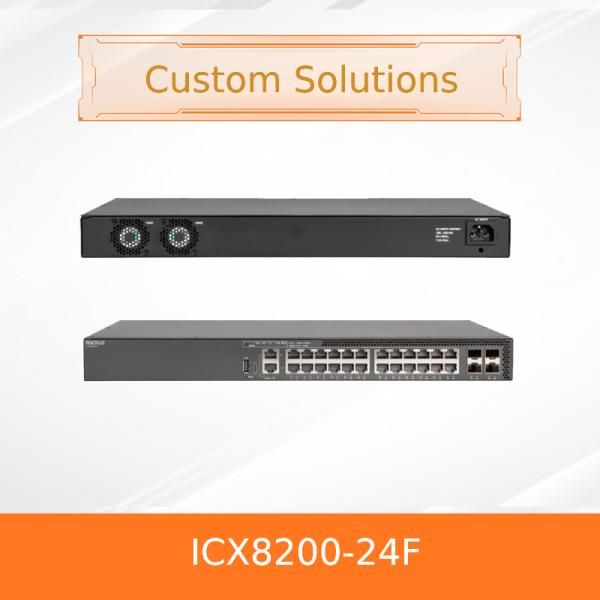

RUCKUS ICX 8200-24F Enterprise Stackable Fiber Access Switch

1. Product Overview

The RUCKUS ICX 8200-24F is an enterprise-class stackable fiber access switch designed for high-performance and scalable network deployments. It features 24x 1GbE SFP fiber ports and 4x 1/10/25 GbE SFP28 uplink/stacking ports, making it ideal for bandwidth-intensive environments. This switch supports advanced Layer 2 and Layer 3 features, VXLAN for network segmentation, and offers flexible management options including cloud, on-premises, and controllerless modes.

2. Key Features

• 24x 1GbE SFP fiber ports for high-density fiber connectivity
• 4x 1/10/25 GbE SFP28 uplink/stacking ports
• VXLAN support for enhanced security and network segmentation
• Advanced Layer 3 routing (static, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR)
• Unified management via RUCKUS SmartZone, Cloud, or Unleashed
• Stackable up to 12 units with 10km stacking distance
• Energy Efficient Ethernet (802.3az)

3. Technology

The ICX 8200-24F leverages cutting-edge technologies including VXLAN for secure network segmentation, Multigigabit Ethernet support, PoE/PoE+/PoE++ compliance, and advanced Layer 3 routing protocols. It also supports OpenFlow for SDN integration and offers high availability features such as hitless failover and in-service software updates.

4. Working Principle

The switch operates at the network edge, aggregating traffic from multiple devices and forwarding data based on MAC and IP addresses. It uses hardware-based forwarding engines to ensure low latency and high throughput. The stacking functionality allows multiple switches to operate as a single logical unit, simplifying management and increasing resiliency.

5. Applications

Ideal for enterprise campuses, data centers, educational institutions, healthcare networks, and large-scale wireless deployments. The ICX 8200-24F is particularly suited for environments requiring high-speed fiber connectivity, such as backbone networks, server farms, and aggregation layers supporting Wi-Fi 6/6E/7 Access Points.

6. Specifications

7. Advantages

• Future-proof design with 25GbE uplinks and stacking
• High availability with redundant power and fan options
• Comprehensive security features including ACLs, 802.1X, and MAC security
• Flexible management and SDN support
• Low latency and high throughput for real-time applications

8. Service & Support

All RUCKUS ICX 8200 switches come with a limited lifetime warranty and 3 years of remote TAC support. Next-business-day advanced replacement is available in eligible regions. Additional on-site and extended support options can be purchased.

9. FAQ

Q: What is the maximum stacking distance?
A: Up to 10 km between stacked switches.

Q: Does it support PoE?
A: The ICX 8200-24F is a fiber switch and does not support PoE.

Q: Can it be managed via the cloud?
A: Yes, via RUCKUS Cloud, SmartZone, or Unleashed.

Q: What Layer 3 protocols are supported?
A: Static, RIP, OSPF, VRRP, VRF, GRE, PIM, and PBR (with license).

Q: Is it compatible with Wi-Fi 6/6E Access Points?
A: Yes, it is optimized for high-density wireless deployments.

10. Precautions

• Ensure compatible SFP/SFP+ modules are used.
• Operate within specified temperature (0°C to 45°C) and humidity (10% to 90%) ranges.
• Follow local electrical and safety regulations during installation.
• Verify firmware compatibility before upgrading.
• Use approved power cords and accessories.
