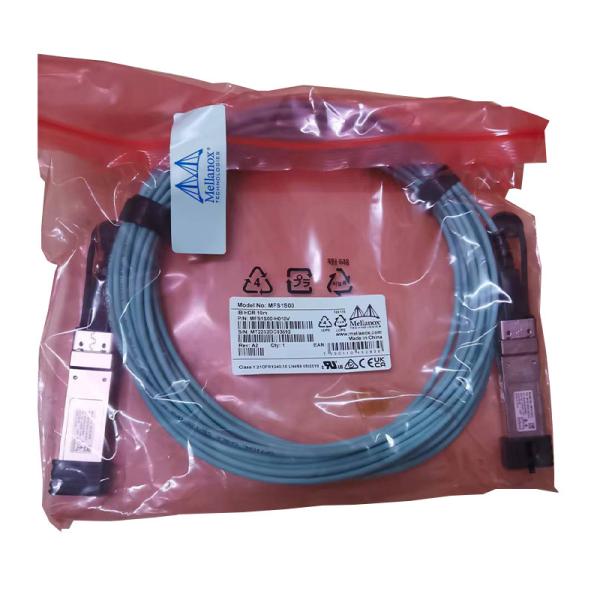

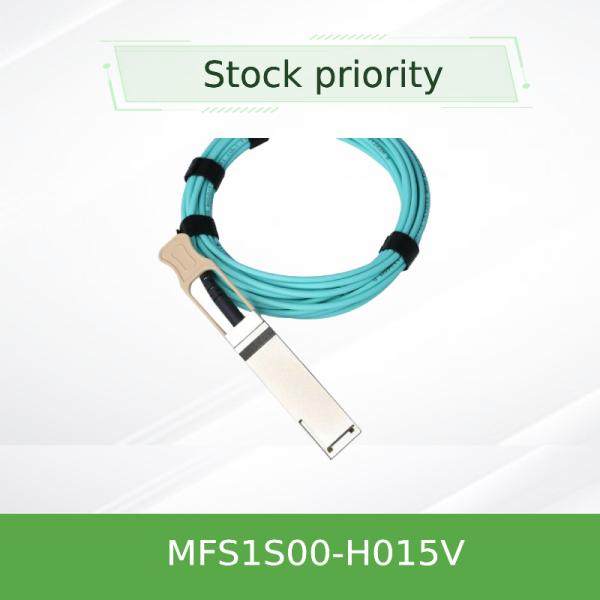

MFS1S00-H015V 200Gb/s QSFP56 Active Optical Cable

The NVIDIA® MFS1S00-H015V is a high-performance Optical Fiber Cable designed for 200Gb/s InfiniBand HDR and 200 Gigabit Ethernet applications. This passive fiber cable alternative offers superior bandwidth, low latency, and extended reach up to 100 meters. It is hot-pluggable, RoHS compliant, and ideal for modern data centers requiring high port density and energy efficiency.

Key Features

• Supports 200Gb/s InfiniBand HDR and 200GbE
• 4x 50Gb/s PAM4 modulation per lane
• Hot-pluggable QSFP56 form factor
• Low power consumption: 5.0W typical per end
• Reach up to 100m over multi-mode fiber

Technology & Standards

This Optical Fiber Cable complies with SFF-8665, SFF-8636, and InfiniBand HDR standards. It uses VCSEL-based optical technology and supports digital diagnostic monitoring (DDM) for real-time performance tracking.

How It Works

The MFS1S00 converts electrical signals into optical signals using integrated VCSEL transceivers. Each end contains four fiber channels operating at 50Gb/s, enabling aggregate bandwidth of 200Gb/s. The cable supports retiming and signal integrity features for reliable data transmission.

Applications

• Data center interconnects
• High-performance computing (HPC) clusters
• Cloud infrastructure
• Enterprise networking
• AI and machine learning platforms

Specifications

Advantages

• Higher bandwidth and lower latency than passive copper cables
• Longer reach without signal degradation
• Lower power consumption compared to alternative solutions
• Hot-pluggable for easy installation and maintenance
• Built-in diagnostics for proactive monitoring

Service & Support

We offer 24/7 technical support, worldwide shipping, and a comprehensive warranty. Our team provides integration assistance and custom configuration services to ensure seamless deployment.

Frequently Asked Questions

Q: What is the maximum length of this Optical Fiber Cable?
A: The MFS1S00 supports lengths up to 100m.

Q: Is this cable compatible with 100GbE systems?
A: Yes, it supports backward compatibility with 100GbE using rate select features.

Q: Does it require external power?
A: No, it is powered directly through the QSFP56 port.

Precautions

• Avoid bending radius less than 30mm
• Ensure ESD protection during handling
• Verify host system compatibility before installation
• Do not remove protective caps until ready to install
