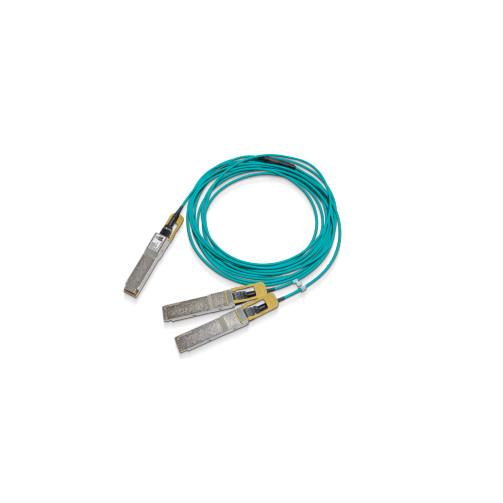

NVIDIA MFS1S50-H015V 200Gb/s to 2x100Gb/s QSFP56 Active Optical Splitter Cable

Product Overview

The NVIDIA® MFS1S50-H015V is a high-performance, low-latency Active Optical Cable (AOC) designed to split a single 200Gb/s QSFP56 port into two independent 100Gb/s QSFP56 connections. Ideal for high-density data center environments, this fiber optic cable offers reliable, power-efficient connectivity for HDR InfiniBand and 200GbE applications. With a length of 15 meters, it provides flexibility in rack and row-based deployments.

Key Features

• 200Gb/s to 2x100Gb/s bidirectional data transmission
• Low-latency multi-mode fiber (MMF) design
• Hot-pluggable QSFP56 form factor
• Supports InfiniBand HDR and 200Gb Ethernet
• Digital Diagnostic Monitoring (DDM) via I²C
• RoHS compliant and energy-efficient (4.5W typical power)

Technology & Standards

This active optical cable complies with industry standards including SFF-8665 (QSFP56), SFF-8636 (management interface), and IEEE 200GbE. It uses VCSEL-based optical technology and PAM4 modulation to achieve high data rates over multi-mode fiber with low bit error rates.

Working Principle

The cable converts electrical signals from the 200Gb/s QSFP56 port into optical signals, which are split and transmitted over four multi-mode fiber pairs. At the dual QSFP56 ends, the optical signals are converted back to electrical signals, providing two independent 100Gb/s channels. Integrated EEPROM enables real-time monitoring and management.

Applications

• Data center spine-leaf architectures
• High-performance computing (HPC) clusters
• Cloud infrastructure and hyperscale networking
• Storage area networks (SAN) and network-attached storage (NAS)
• AI and machine learning training networks

Specifications & Selection Guide

Advantages

• Lower latency compared to passive DAC cables
• Higher bandwidth density and flexibility
• Better signal integrity over longer distances
• Integrated diagnostics for proactive maintenance
• Compatible with major switch and server platforms

Service & Support

We offer a 3-year warranty, global technical support, and fast shipment from our $10M+ inventory. Our team provides 24/7 consultation and integration services to ensure seamless deployment.

FAQ

Q: What is the maximum distance supported?
A: Up to 30 meters over OM4 multi-mode fiber.

Q: Is this compatible with 100GbE switches?
A: Yes, it supports both InfiniBand HDR and Ethernet protocols.

Q: Can I use this cable in a high-temperature environment?
A: Operating temperature range is 0°C to 70°C.

Precautions

• Avoid bending radius below 30mm to prevent fiber damage.
• Ensure clean connectors before insertion to avoid signal loss.
• Use ESD protection during handling.
• Verify host system compatibility before purchase.
