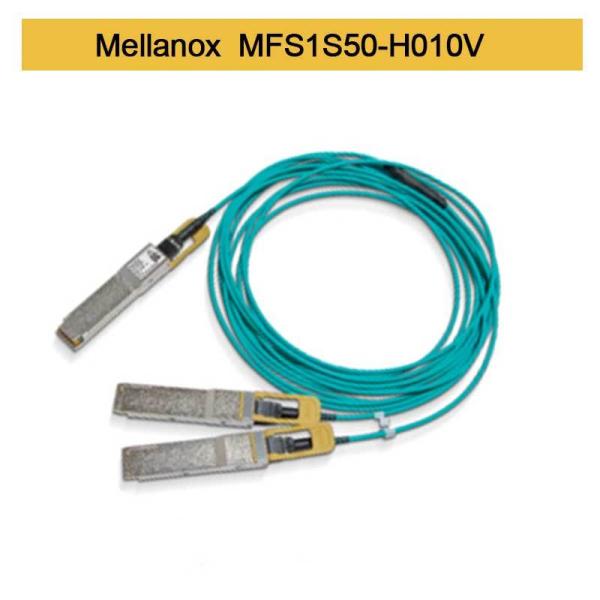

NVIDIA MFS1S50-H010V 200G to 2x100G QSFP56 Active Optical Splitter Cable

Product Overview

The NVIDIA® MFS1S50-H010V is a high-performance, cost-effective Active Optical Cable (AOC) designed for next-generation data center interconnects. This innovative optical fiber cable splits a single 200Gb/s port into two independent 100Gb/s channels, enabling flexible and efficient network architecture. It is an essential component for high-speed InfiniBand HDR and 200GbE systems, providing reliable, low-latency connectivity between switches and servers. This passive fiber cable alternative offers an active, high-performance solution for demanding environments.

Key Characteristics

• High-Speed Data Transmission: Supports 200Gb/s InfiniBand HDR and 200GbE, splitting into 2x100Gb/s HDR100 or 100GbE channels.
• Low Latency & Low Power: Engineered for minimal signal delay and typical power consumption of only 4.5W on the 200G end.
• Superior Quality & Reliability: Built with NVIDIA's stringent quality controls for outstanding out-of-the-box performance and long-term durability.
• Hot-Pluggable Design: Facilitates easy installation and maintenance without shutting down system operations.
• Extended Reach: Supports link lengths of up to 30 meters over multi-mode fiber (MMF).

Core Technology & Standards

The MFS1S50-H010V AOC leverages advanced VCSEL (Vertical Cavity Surface-Emitting Laser) technology and PAM4 modulation to achieve its high data rates. It is fully compliant with industry standards, ensuring broad interoperability. Key specifications include:

• Form Factor: QSFP56 to 2x QSFP56
• Compliant Standards: SFF-8665 (QSFP56), SFF-8636 (I²C Management Interface), IBTA IB HDR, 200GbE
• Data Rate: 200 Gb/s to 2 x 100 Gb/s
• Diagnostics: Comprehensive Digital Diagnostic Monitoring (DDM) for real-time health checks (temperature, voltage, TX/RX power per lane).

Working Principle

This active optical splitter cable functions as an intelligent interface converter. The single QSFP56 end receives a 200Gb/s signal, which is then split and converted into optical signals transmitted over four multi-mode fiber pairs. At the dual QSFP56 ends, these optical signals are converted back into two separate electrical 100Gb/s signals. An integrated EEPROM on each connector provides vital product information and status monitoring to the host system via the I²C interface, allowing for advanced management and troubleshooting.

Typical Applications

The MFS1S50-H010V optical fiber cable is ideal for high-performance computing environments that require efficient port utilization and scalability.

• Data Center Interconnects: Connecting a top-of-rack (ToR) switch to two leaf switches or servers.
• High-Performance Computing (HPC): Building clusters for scientific research, financial modeling, and AI training.
• Cloud Infrastructure: Enhancing connectivity within and between cloud data centers for hyperscale applications.
• Network Aggregation: Efficiently aggregating multiple 100G streams into a higher-bandwidth 200G link.

Specifications & Selection Guide

Competitive Advantages

• Density Optimizer: Effectively doubles port capacity by converting one 200G port into two 100G ports, maximizing switch investment.
• Performance Guarantee: Undergoes rigorous production testing to ensure superior signal integrity and low bit-error rates compared to many passive fiber cable solutions.
• Power Efficiency: Offers a lower power-per-gigabit solution than using multiple discrete transceivers and cables.
• Ease of Use: A pre-terminated, plug-and-play solution eliminates the complexity and potential points of failure associated with separate optics and patch cables.

Service & Support

We stand behind our products with a comprehensive service package. All our optical fiber cable products include a standard warranty. We maintain a vast inventory, including this specific passive fiber cable alternative, for quick shipment. Our dedicated technical support team is available to provide pre-sales consultation and post-sales troubleshooting, ensuring your network operates at peak performance.

Frequently Asked Questions (FAQ)

Q: What is the difference between an AOC and a passive DAC cable?
A: An Active Optical Cable (AOC) uses optical fibers and built-in transceivers to convert electrical signals to light, allowing for longer distances (up to 30m+) and lighter weight. A Passive Direct Attach Copper (DAC) cable is a copper solution limited to shorter distances (~3-5m) and is more susceptible to electromagnetic interference.

Q: Is this cable compatible with my existing 100GbE QSFP28 switch ports?
A: No, this cable requires QSFP56 ports, which are electrically compatible but designed for higher data rates. Always verify port specifications with your switch manufacturer.

Q: Can I use one of the 100Gb/s ends independently?
A: No, both 100Gb/s ends must be connected to active devices for the entire link to initialize and function correctly.

Q: Does this cable support Digital Diagnostic Monitoring (DDM)?
A: Yes, it provides full DDM functionality, including temperature, voltage, TX bias current, and RX/TX power monitoring for each lane, accessible via the I²C interface.

Important Precautions

• Handling: Always use an ESD wrist strap when handling. Keep protective dust caps on when ports are not in use to prevent contamination.
• Bend Radius: Avoid bending the cable beyond the minimum bend radius of 30mm to prevent internal fiber damage.
• Compatibility: Confirm compatibility with your specific switch and server hardware before purchase.
• Cleaning: If cleaning is necessary, use only approved fiber optic cleaning tools and methods. Do not use liquids.
• Environment: Designed for controlled data center environments. Operating temperature must be maintained between 0°C to 70°C.
