High Speed Melamine Ware Press Machine Precision Control 250T Pressure Double Color
High Speed Melamine Ware Press Machine Precision Control 250T Pressure Double Color
High Speed Melamine Ware Press Machine Precision Control 250T Pressure Double Color
High Speed Melamine Ware Press Machine Precision Control 250T Pressure Double Color
High Speed Melamine Ware Press Machine Precision Control 250T Pressure Double Color
High Speed Melamine Ware Press Machine Precision Control 250T Pressure Double Color
Specifications
Model Number :
250T
Certification :
SGS,CE
Price :
22800
Payment Terms :
L/C,T/T
Supply Ability :
20
Pressing Method :
Hydraulic Press
Brand Name :
DONGXIN
Place of Origin :
CHINA
MOQ :
1
Delivery Time :
5-7 WORK DAYS
Control System :
PLC Control with Touch Screen
Table Size :
700 × 800 mm
Machine Dimensions :
2250 × 1360 × 2250 mm
Machine Type :
Double Color Press
Heating System :
Electric Heating Plates
Total Pressure :
400 tons
Description
High-Speed Melamine Ware Forming Press Machine With Precision Control 250T Pressure Double Color
Our Melamine Tableware Hydraulic Press Machine is engineered for the precision manufacturing of high-quality melamine plates, bowls, trays, and various crockery items. Designed for durability and efficiency, this machine utilizes advanced hydraulic pressure systems to ensure uniform density and a flawless glossy finish on every piece of tableware. Whether you are producing single-color or multi-color (decal) melamine ware, our equipment offers the stability and control required for industrial-scale production.
Key Advantages
  • Cost-Effective: High cost-performance ratio with competitive unit pricing
  • Versatile Applications: Primarily serves A5 melamine product manufacturing and resin-bonded craft production, including hotel resin crafts, melamine tableware, chopsticks, toilet seat covers, appliance enclosures, molded storage bags, lampshade tops, and daily chemical products
  • Enhanced Productivity: Superior attention to production details and operator comfort increases production efficiency and product yield rates compared to other factory molding machines
  • Optimized Operation: Features smoother, faster movements with modular design for easier disassembly and maintenance. The insulated frame extends insulation panel lifespan, while asbestos-based insulation provides superior thermal performance.

ZT400T Single Color Hydraulic Press Machine Specifications
Technical Parameter Specification
Cylinder Diameter 450 mm
Total Pressure 400 tons
Table Size 700 × 800 mm
Trip 560 mm
Guide Post Diameter 110 mm
Machine Weight 5500 kg
Machine Size 2250 × 1360 × 2250 mm
Oil Reservoir Capacity 486 L
Maximum Pressure 210 KG/CM²
Average Powder Consumption 11 KW/H

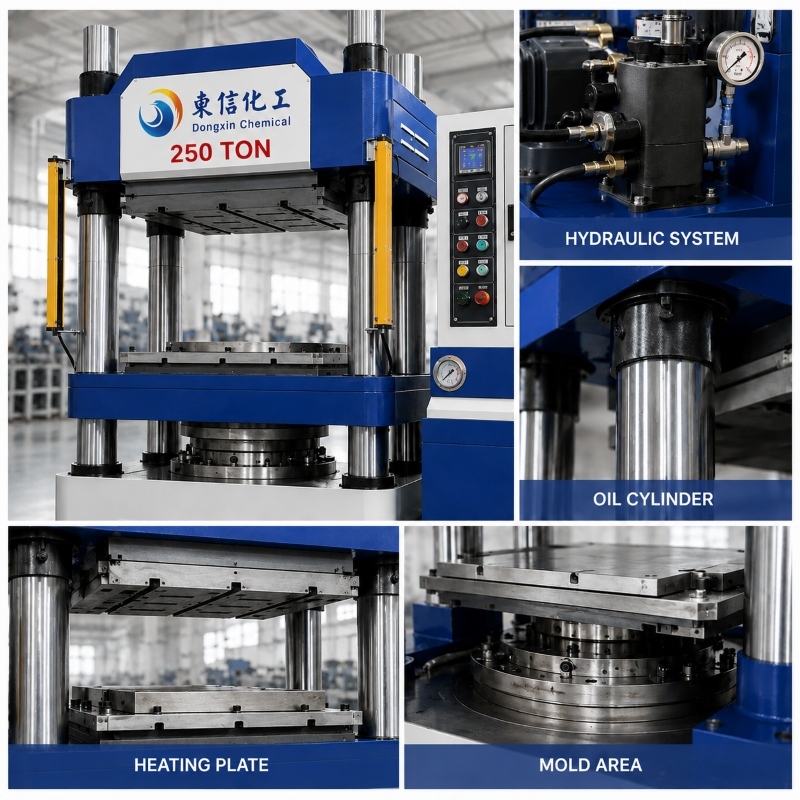

Standard Machine Configuration
Component Included
Heat Shield Standard
Heating Plate Standard
Heating System Standard
Electric Machinery Standard
Oil Pump Standard
Solenoid Valve Standard
Full Oil Valve Standard
PLC Control System Standard
POD Interface Standard

Why Choose Our Melamine Compression Machine?
High Yield Rate
Minimize rejects with precise temperature control (±1°C) and pressure stability for consistent product quality
Material Versatility
Suitable for various raw materials, including Melamine Formaldehyde (MF) and Urea-Formaldehyde (UF) molding powders
Fast Cycle Times
Optimized hydraulic movements reduce idle time, significantly boosting your daily production output
Global Compliance
Manufactured according to CE and ISO standards to meet international safety and quality requirements


FAQ


Q1: What types of melamine tableware can the Dongxin HP1001 machine produce?
A1: It supports mass production of plates, bowls, cups and a wide range of melamine crockery. Suitable for household sets, institutional dining ware, catering‑grade tableware and decorative retail melamine products. Custom molds can be made for special shapes and sizes.

Q2: Can I configure the machine for semi‑automatic or fully‑automatic running modes?
A2: Yes. The HP1001 provides flexible customization. You may select semi‑automatic or fully‑automatic operation levels, adjustable production speed & capacity, as well as tailored control systems for your existing production‑line integration.

Q3: Is this compression‑molding machine suitable for large‑volume factory production?
A3: Absolutely. Built with advanced compression molding technology and PLC‑based electric heating control, it delivers high output with consistent product quality. It is widely used in large‑scale dinnerware factories and custom crockery workshops.

Q4: How much operator training is required to run the HP1001 melamine machine?
A4: The machine features user‑friendly operation to lower training barriers. We supply full on‑site installation guidance, operational training and calibration services, so your operators can master daily running quickly.

Q5: What after‑sales and technical support do you offer after machine delivery?
A5: Our support covers installation guidance, operator training, troubleshooting, maintenance help, software updates and hardware upgrades. We also provide preventive‑maintenance plans, repair service and long‑term spare‑parts supply together with official user manuals.

Q6: How is the machine packed and what shipping choices are available for export orders?
A6: Machines are packed in heavy‑duty wooden crates with foam shock‑absorbing padding; detached components are individually packed and labelled. We offer sea freight, air freight for urgent orders and land transport. Full export documents and shipment tracking are provided for customs clearance.

Q7: Can the HP1001 work with my existing molds or custom‑made new molds?
A7: Yes. Custom mold designs for different tableware dimensions and profiles are among our customization options. We can optimize the machine configuration to match your new or existing molds for stable compression‑molding performance.
