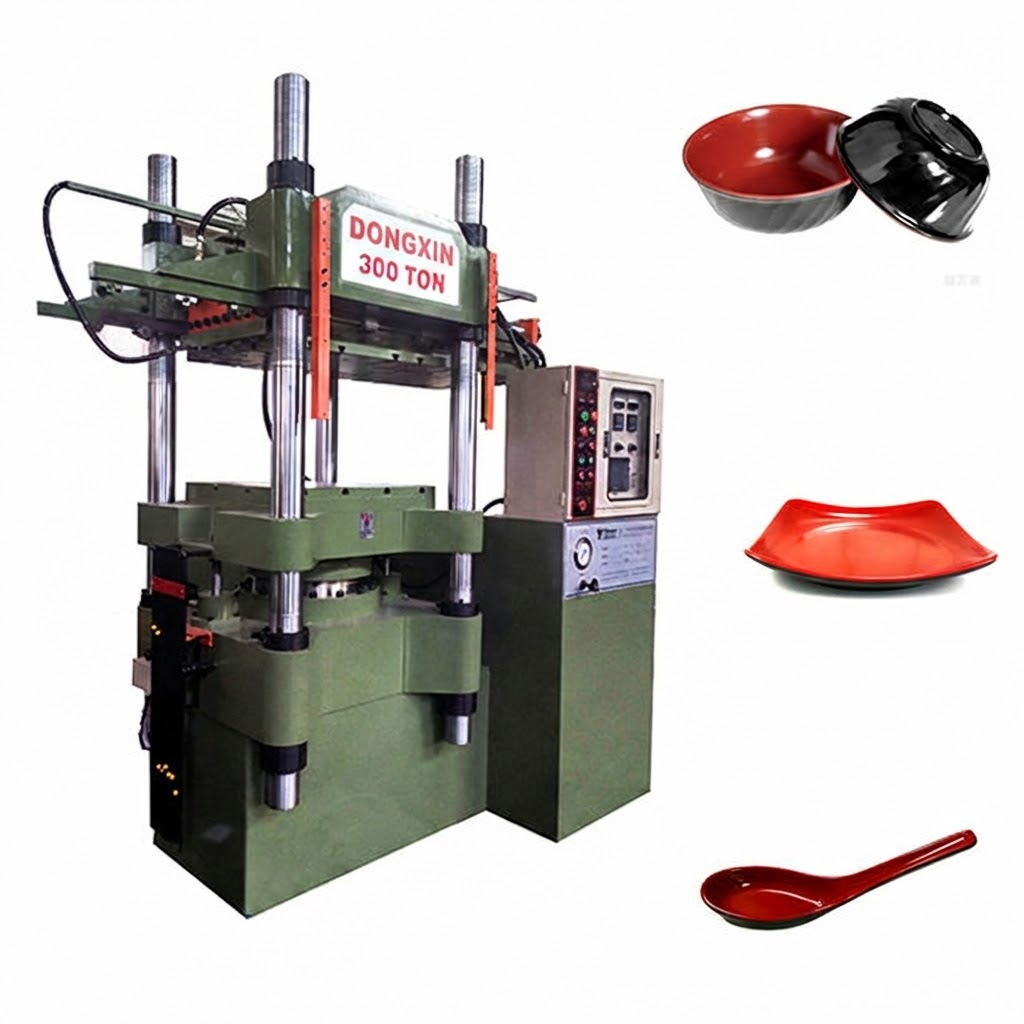

Semi Automatic Two Color Melamine Press Machine Dual Tone Tableware Forming Machine
Semi Automatic Two Color Melamine Press Machine Dual Tone Tableware Forming Machine
Specifications
Brand Name :
DONGXIN
MOQ :
1
Machine Type :
Double Color Press
Maximum Heating Temperature :
180°C
Control System :
PLC Control
Machine Weight :
6600 kg
Pressing Plate Size :
1200mm x 2400mm
Application :
Furniture panel production, decorative laminates
Automation Level :
Semi-automatic
Heating Method :
Electric Heating
Maximum Pressing Pressure :
25 MPa
Power Supply :
380V/50Hz
Cycle Time :
30-60 seconds
Material Compatibility :
Melamine
Pressing Method :
Hydraulic Press
Total Power :
30 kW
Description
Double Color Melamine Press Machine
The Double Color Melamine Press Machine provides automated production and accurate two-color melamine molding capabilities for manufacturing premium tableware and industrial components.
Product Overview
The Double Color Melamine Press Machine (also known as two-color melamine molding machine, bi-color hydraulic press, or dual-tone tableware forming machine) is an advanced hydraulic compression molding system designed to manufacture stunning two-tone melamine dinnerware. This specialized equipment seamlessly integrates two different colored melamine molding compounds (MMC) into a single product, creating visually striking tableware with contrasting interior/exterior colors or multi-colored patterns.
Unlike single-color machines, this double color press uses sophisticated mold technology and precision material dosing to produce high-value-added products such as two-tone bowls, dual-color plates, contrasting cups, and decorative serving trays. The machine is extensively utilized for premium tableware, toilet seat covers, bakelite switches, and mahjong tiles.
Primary Keywords: double color melamine press machine, two color melamine molding machine, bi-color tableware hydraulic press, dual color dinnerware forming machine, double color compression molding
Semi Automatic Two Color Melamine Press Machine Dual Tone Tableware Forming Machine
How Double Color Melamine Press Machines Work
The Two-Color Molding Process
Step 1: Material Preparation - Two different colored melamine molding compounds (MMC) are prepared—typically contrasting colors like white/black, red/white, or custom brand colors. Each color is preheated separately to 40-50°C for optimal flow characteristics.
Step 2: Precision Dosing - The machine's automatic weighing system doses precise quantities of each color powder. Unlike single-color production, double color requires exact material distribution to prevent color bleeding while ensuring complete mold filling.
Step 3: Sequential Mold Filling
  • First Color Injection: Primary color (often exterior) is loaded into the mold cavity
  • Second Color Injection: Secondary color (often interior or accent) is precisely positioned
  • Dual-color molds feature specialized runners and gates that control color placement
Step 4: Compression & Curing
  • Hydraulic pressing at 150-180°C under 200-350 tons pressure
  • Degassing cycles: Up to 99 air releases to eliminate bubbles between color layers
  • Curing time: Precisely controlled to ensure chemical bonding between colors without bleeding
Step 5: Automatic Ejection - Finished two-color product is automatically ejected, ready for edge grinding and polishing.
Semi Automatic Two Color Melamine Press Machine Dual Tone Tableware Forming Machine
Key Features & Competitive Advantages
Dual-Color Automatic Control System
  • PLC programming stores 100+ dual-color product recipes
  • Automatic color switching reduces manual intervention
  • Precision timing control ensures perfect color registration
  • HMI touchscreen allows easy parameter adjustment for color ratios
Semi Automatic Two Color Melamine Press Machine Dual Tone Tableware Forming Machine Semi Automatic Two Color Melamine Press Machine Dual Tone Tableware Forming Machine Semi Automatic Two Color Melamine Press Machine Dual Tone Tableware Forming Machine Semi Automatic Two Color Melamine Press Machine Dual Tone Tableware Forming Machine
