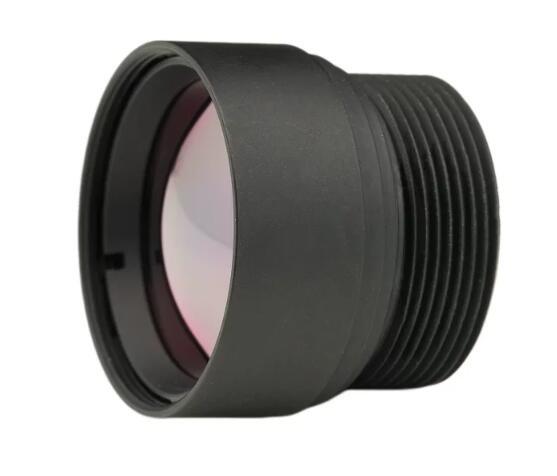

Long Wavelength 8~12um f18mm F1.0 IR Lens M18x0.75 mount Prime Lens for sensor 640*512 12um
Long Wavelength 8~12um f18mm F1.0 IR Lens M18x0.75 mount Prime Lens for sensor 640*512 12um
Specifications
Place of Origin :
China
Focal Length :
18mm
Brand Name :
CCOM LENS
IR Lens :
Long Wavelength IR Lens
Model Number :
LWIR1810
Wavelength :
8~12um
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Sensor :
640*512 12um
Delivery Time :
7-15 work days
Supply Ability :
Samples available
Packaging Details :
Standard
MOQ :
100pcs
Aperture :
F1.0
Description

Long Wavelength 18mm F1.0 8~12um IR Lens for sensor 640*512 12um, Prime Lens f18mm F1.0 M18x0.75 mount IR Lens

Model no.: LWIR1810

Sensor: 640*512 um
Transmission(8-12μm): ≥95%
Wavelength: 8~12um
Focal length: 18mm

F.R.: >2m
Aperture: F1.0
Mount: M20×0.75-6g

Distortion: ≤-1%
F.O.V (D*H*V): 30.9°*24.2°*19.4°
RI: ≥90%
F.F.L.: 10.5mm
M.B.F.L.: 9.0mm
Dimension: Ø21x L17.3mm

Sealing: IP67 (first mirror glass)

Tip:
- For more IR lenses, please feel free to contact us at sales01@megapixellenses.com
