Specifications
Place of Origin :
Hunan, China
Certificate :
CE ISO
Drawtube :
Two
Price :
$550-595 / piece
Theory :
Biological Microscope
Brand Name :
CenLee
camera resolution :
1920*1080
warranty :
3 Years
Lens :
4x 10x 40x 100x
type :
Digital Microscope, Other
Model Number :
XSZ-166T
Name :
XSZ-166T Biological Microscope
MOQ :
1 piece
customized support :
OEM, ODM
Description
Product Description
Product Description

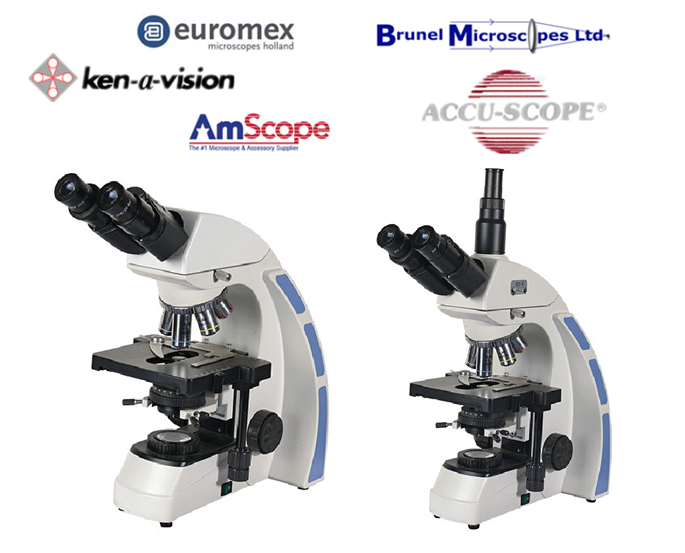

Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan

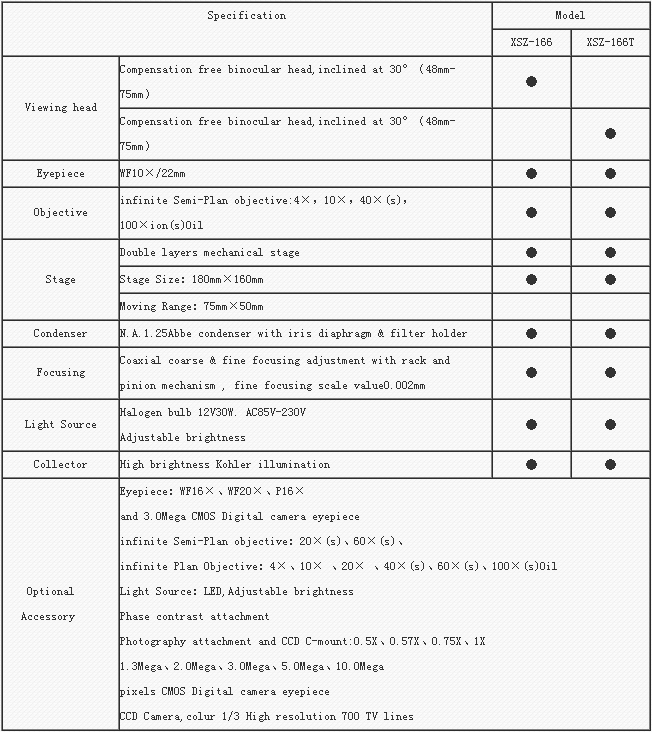

Specification
Model
XSZ-166
XSZ-166T
Viewing head
Compensation Free Binocular Head. Inclined at 3 0 °(48mm-75mm)
Compensation Free Trinocular Head. Inclined at 3 0 °(48mm-75mm)
Eyepiece
WF10×/22mm
Objective
infinite Semi-Plan objective:4×,10×,40×(s),100×ion(s)Oil
Stage
Double layers mechanical stage
Stage Size:180mm×160mm
Moving Range:75mm×50mm
Condenser
N.A.1.25Abbe condenser with iris diaphragm & filter holder
Focusing
Coaxial coarse & fine focusing adjustment with rack and pinion mechanism , fine focusing scale value0.002mm
Light Source
Halogen bulb 12V30W. AC85V-230V
Adjustable brightness
Collector
High brightness Kohler illumination
Optional
Accessory
Eyepiece:WF16×,WF20×,P16×
and 3.0Mega CMOS Digital camera eyepiece
infinite Semi-Plan objective:20×(s),60×(s),
infinite Plan Objective:4×,10× ,20× ,40×(s),60×(s),100×(s)Oil
Light Source:LED,Adjustable brightness
Phase contrast attachment
Photography attachment and CCD C-mount:0.5X,0.57X,0.75X,1X
1.3Mega,2.0Mega,3.0Mega,5.0Mega,10.0Mega
pixels CMOS Digital camera eyepiece
CCD Camera,colur 1/3 High resolution 700 TV lines
Product name
WIC-2718
Series
Android tablet industrial camera
Feature
1. 9.7" tablet has strong digital microscope system with 4 core Cortex-A17/1.8GHz processing chip(RK3288,M Mali-T764 GPU).
2. This model supports TE, ASTC, AFBC memory compression technology. It supports video
record/photographing/processing/storage/network/real time display by CMOS camera with USB interface etc.
3. It has embedded high-efficient 2D/3D speed-up hardware, and supports 1080P multi-format video decoding/ 4Kx2K hardware decoding
H.265 video,then output high resolution digital image signal.
4. It also has strong extension, can choose different operation by different desires, such as bright field, dark field, phase
contrast, polarized light. The tablet is Android 5.1 now, will update to Android 6 in the near future.
Specification
Cortex-A17 dualcore embedded CPU
Max resolution 1080P, high frame frequency, duplex video decoding
4 core Cortex-A17, max frequency 1.8GHz
Support Android 5.1 and above system
Storage interface
Support multiple storage and DDR3L, LPDDR2, LPDDR3
Built-in 2G/8G storage, external SD card is acceptable
Camera video interface
UVC structure, work with external USB camera
Support multiple input format: RAW,RGB and YUV
When using Android tablet, supports 5M CMOS digital imaging, live display by 10-30 frames/sec( resolution 1024*768 and so on).
White balance adjusting and image calibration
Hardware
9.7" retina IPS LCD display, resolution 2048*1536
Support keyboard/mouse input
Five points touch screen
Support max 32G C10 high speed SD card
USB 2.0, HDMI, standard USB2.0 extended interface and LAN interface
Support WIFI access and bluetooth
Sensor
Aptina MT9P001
Scanning
Progressive
Sensor size
1/2.5-inch(4:3)
Effective pixel
2592H*1944V
Effective image size
5.70*4.28mm
7.13mm(diagonal)
Pixel size
2.2um*2.2um
Dynamic range
66.5dB
SNR(max)
40.5dB
A/D exchange resolution
12-bit, on-chip
Sensitivity
0.53V/lux-sec(550nm)
Video format and frames
1600*1200: 15fps
Exposure range and format
ERS, auto
Software
· Can overlay 4 kind of user-defined tools on live pictures( ""with scale, dual""
""plus circle,""plus square).The lines have 8 colors. The finest line width is 1 pixel, Max update the accuracy of location. The
screen support cross line X1,Y1 and X2,Y2Relative coordinates. By 2 rotating decoding setting, horizontal lines and vertical lines
can move randomly. And the device can record their movement, then you can use them freely next time.
· Sync time tag
· Cell counting function
· Manually adjust white balance
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan

High efficiency,flexibility and stability are the characters of this series microscope.It is specially developed for various application fields.It is widely used,from daily work to scientific research,in laboratory,hospital and college.Because of higher cost performance and reasonable humanized design,it becomes the first choice of individual,hospital and scientific research organization.

Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan

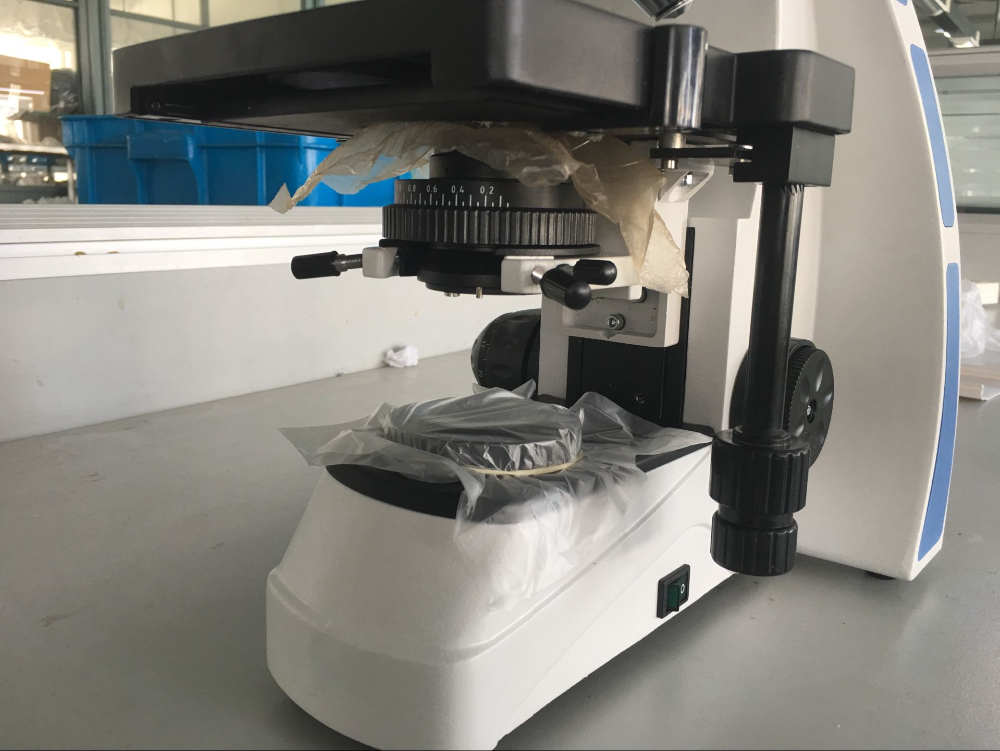

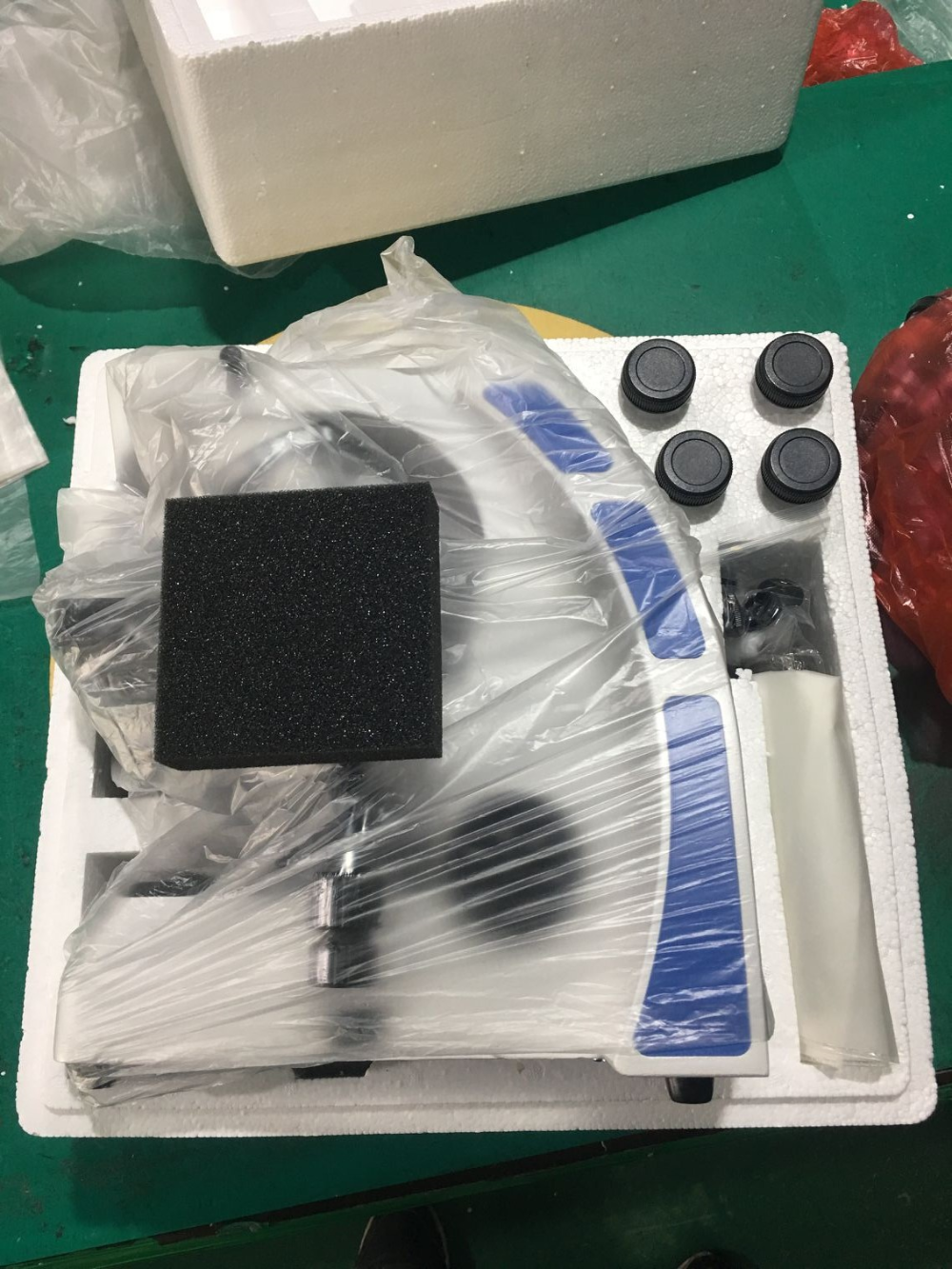

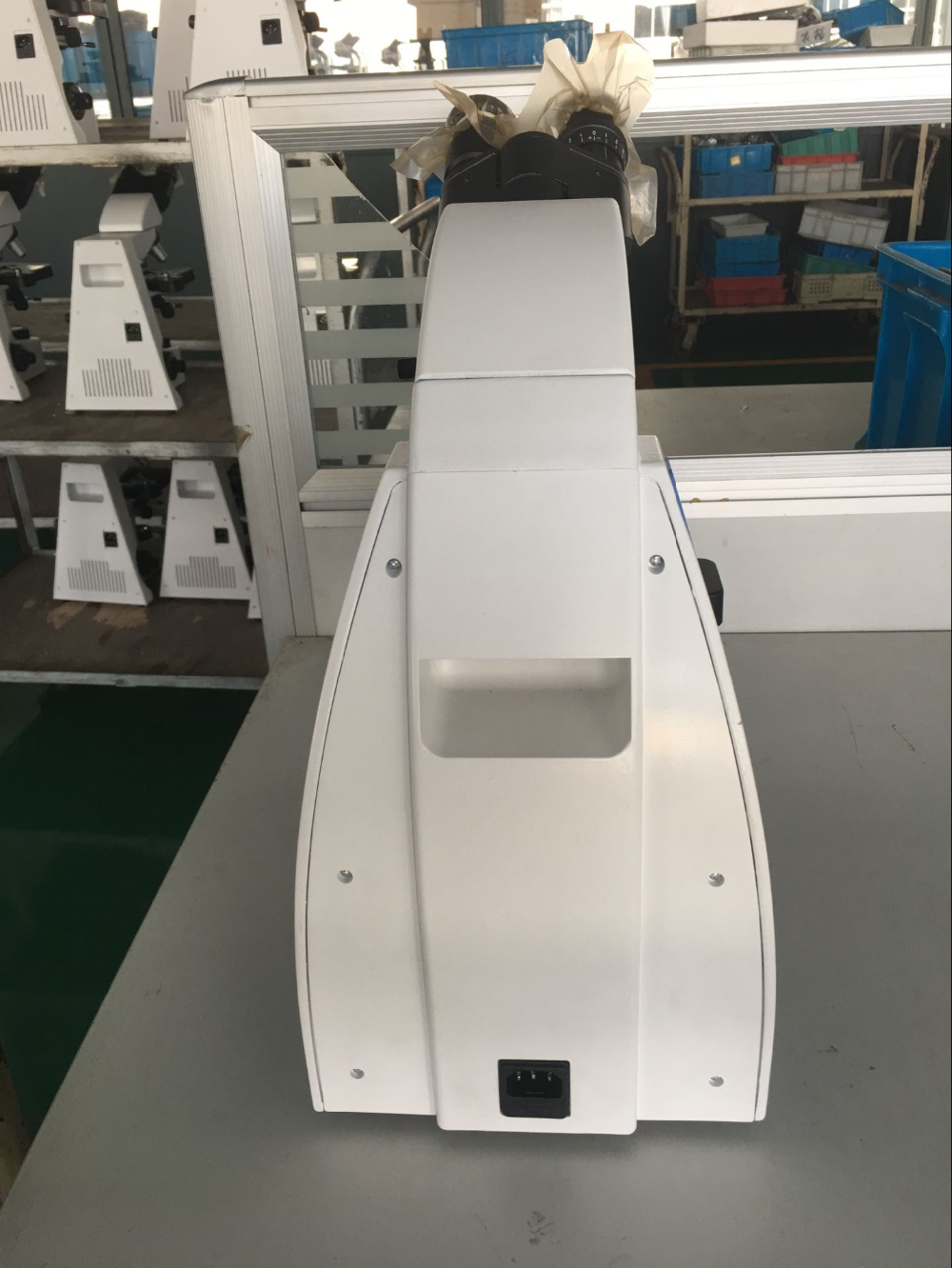

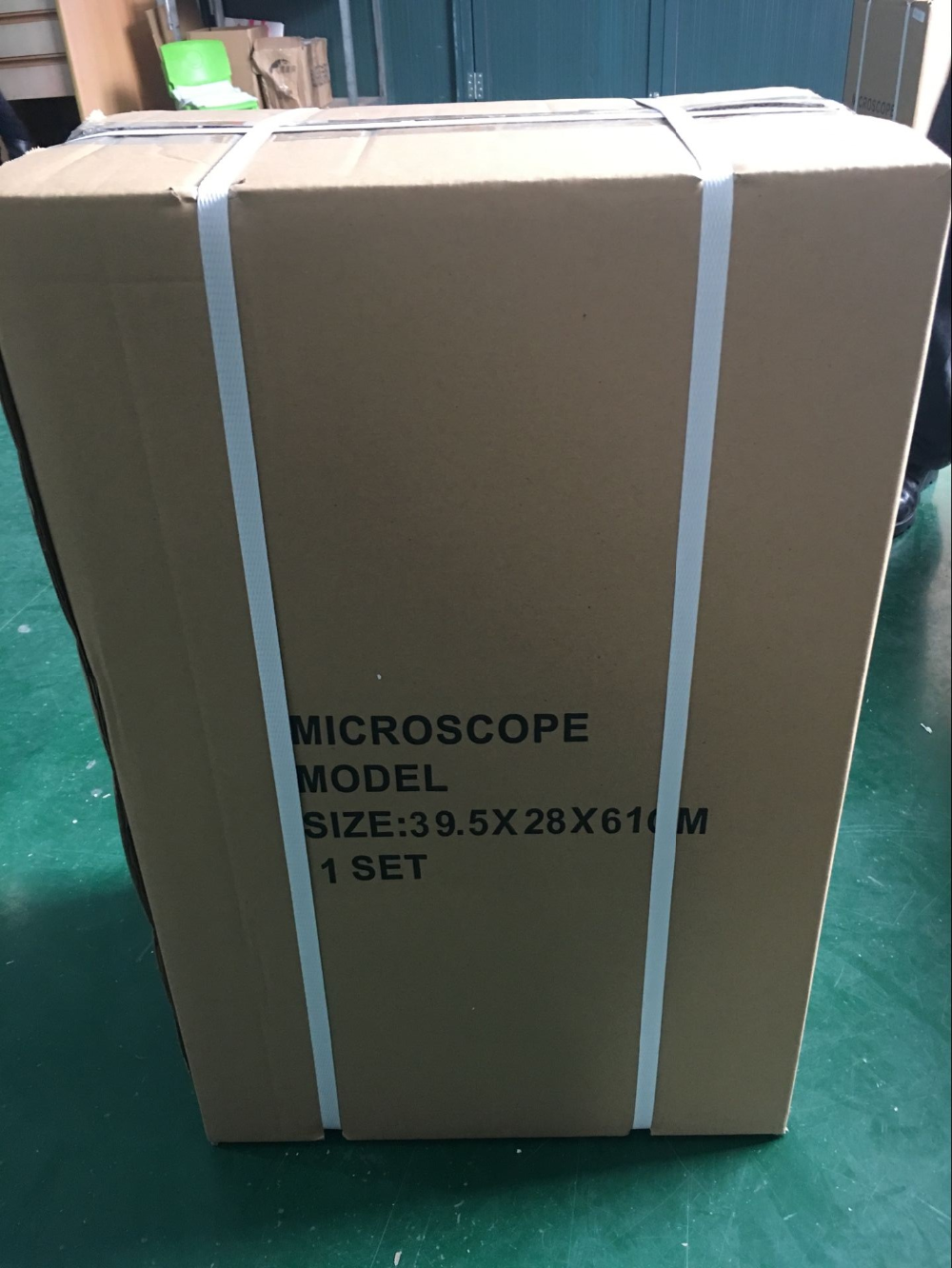

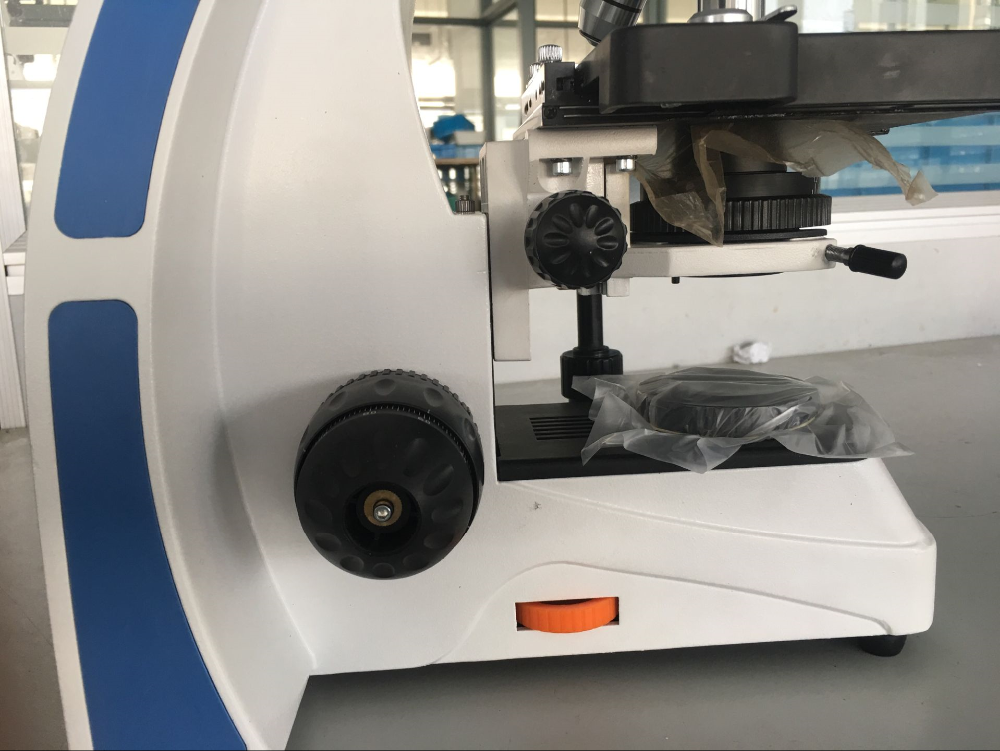

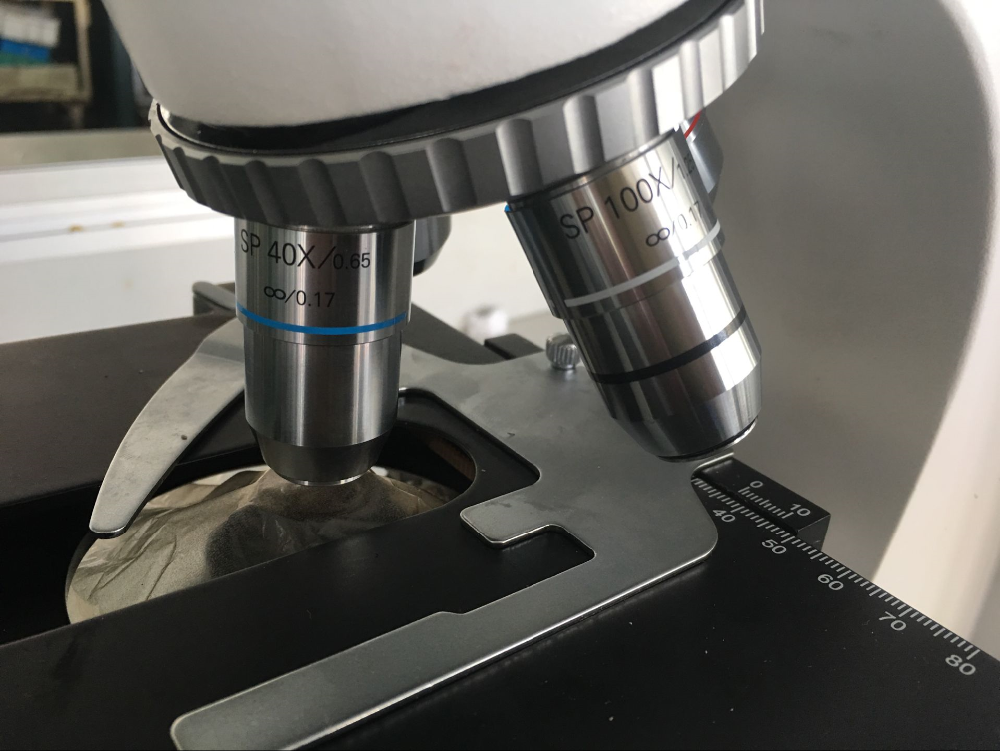

Production Photos
Production Photos
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan
Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan

Digital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite PlanDigital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite PlanDigital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite PlanDigital Biological Microscope XSZ-166T With 9.7 Inch LCD Infinite Plan
