Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching

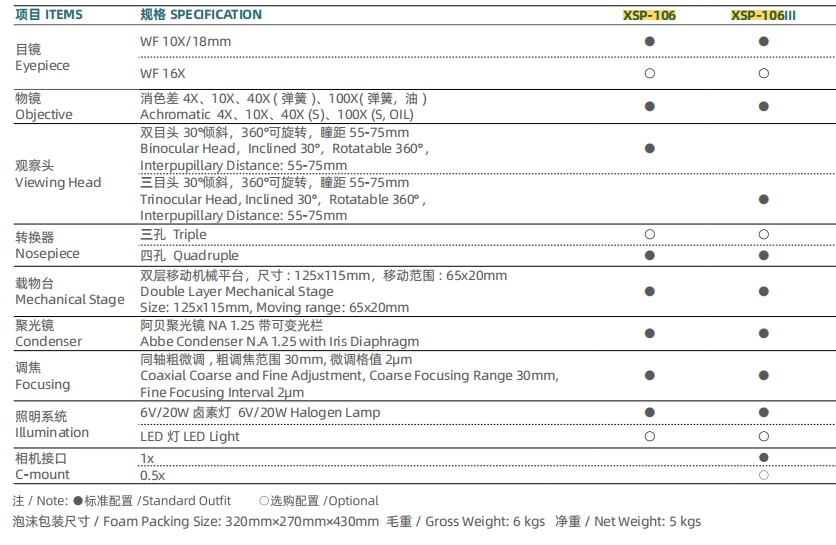

Specifications
Calibration :
Manual Calibration
Focus Type :
Electric Focus
Objectives :
Achromatic 4X, 10X,40X (Spring), 100X (Spring,Oil)
Viewing Head :
Binocular (XSP-106)/Trinocular (XSP-106III)
Model Number :
CL-XSP-106
Display Type :
Led Display
Focusing Distance :
30 mm
External Display Support :
No
customized support :
OEM, ODM
dimension :
125x115mm
IP Rating :
IP53
illumination :
LED Display Screen
Condenser :
Abbe Condenser NA 1.25 with Iris Diaphragm
Package :
Foam Packing Size: 320x270x430mm
MOQ :
1 set
type :
Biological Microscope
Eyepiece :
WF 10X/18mm,WF16X (Optional)
Nosepiece :
Triple (XSP-106)/Quadruple (XSP-106III)
Dioptric Adjustment :
±15d
camera resolution :
Other
warranty :
2 Years
Mechanical Stage :
Double Layer Mechanical Stage Size: 125x115mm
Price :
$100-120 / set
Brand Name :
CenLee
Place of Origin :
Hunan, China
Focusing :
Coaxial Coarse and Fine Adjustment Fine Focusing Interval: 2um
Description
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
High Quality Biological Microscope (XSP-106 Series) with WF10X/16X Eyepieces, 4X-100X Oil Objectives, Halogen/LED Light, Double Layer Stage - Ideal for School, College & Clinical Use.

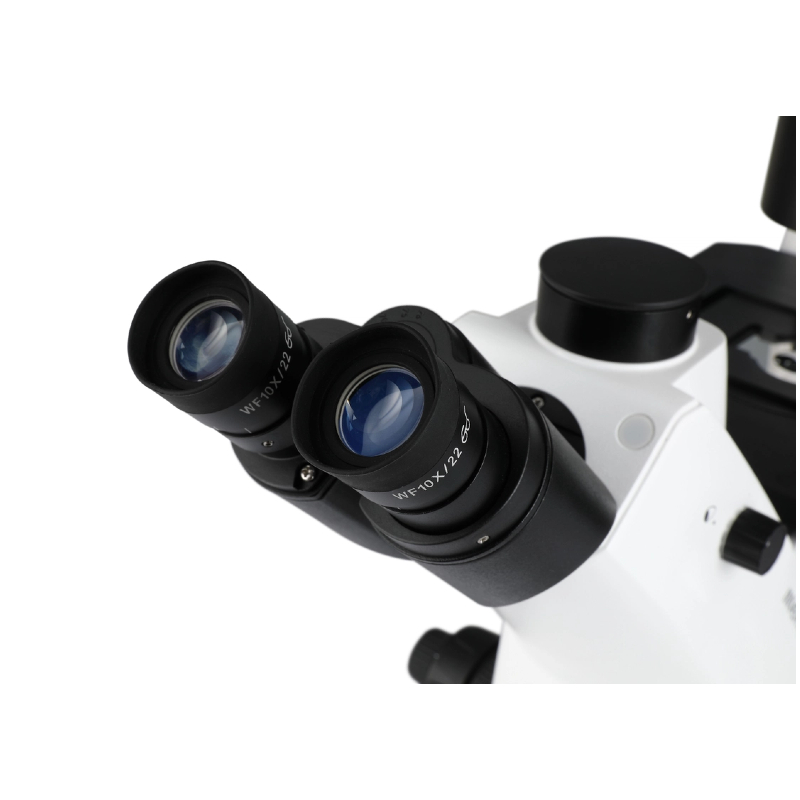

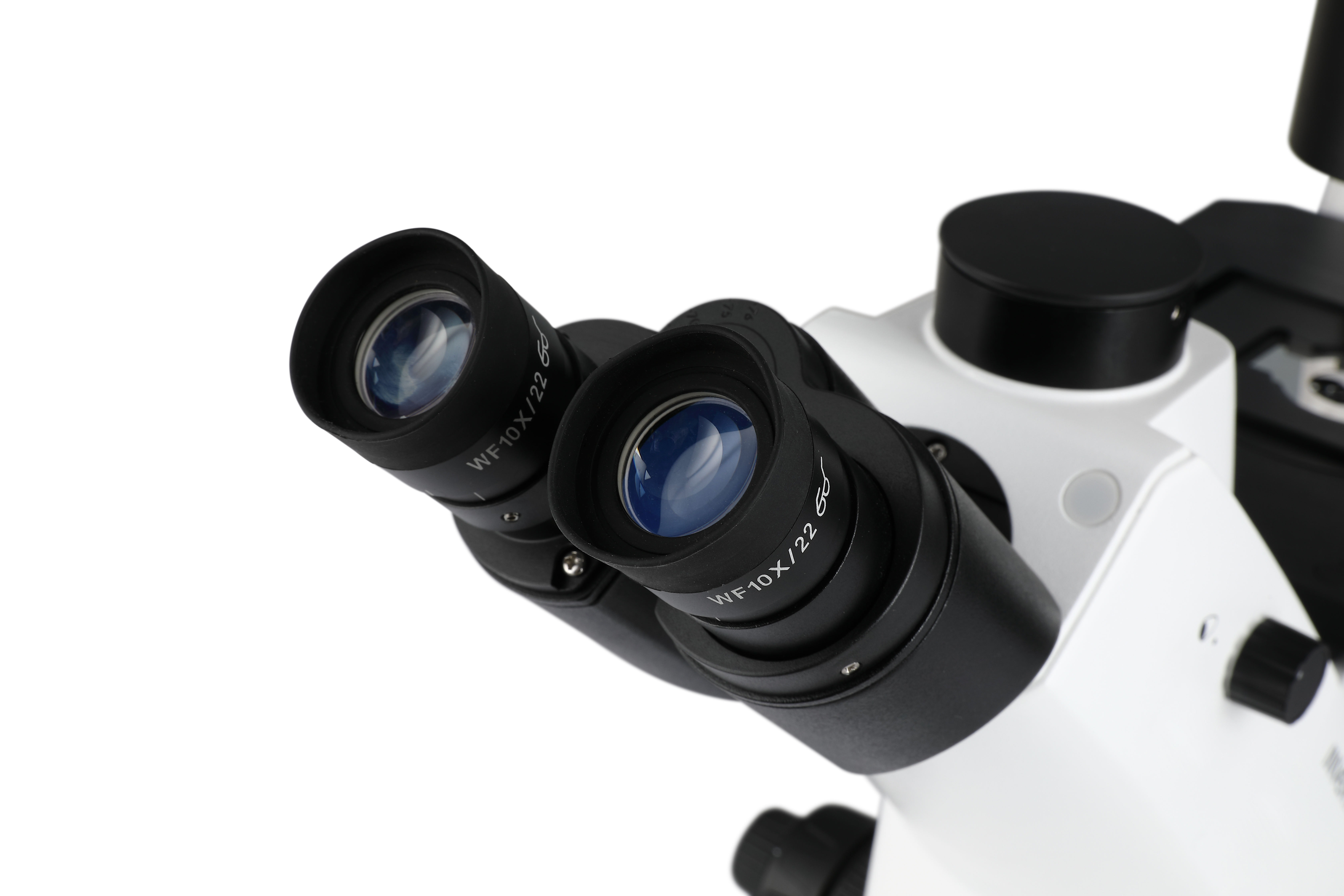

Eyepieces
WF 10X/18mm, WF 16X (Optional)
Objectives
Achromatic 4X, 10X, 40X (Spring), 100X (Spring, Oil)
Viewing Head
Binocular (XSP-106) / Trinocular (XSP-106III)
Inclined 30°, Rotatable 360°, Interpupillary Distance: 55-75mm
Nosepiece
Triple (XSP-106) / Quadruple (XSP-106III)
Stage
Double Layer Mechanical Stage
Size: 125x115mm, Moving Range: 65x20mm
Condenser
Abbe Condenser NA 1.25 with Iris Diaphragm
Focusing
Coaxial Coarse and Fine Adjustment
Fine Focusing Interval: 2μm
Illumination
● Standard on XSP-106III (1x, 0.5x)
○ Optional for XSP-106
Package
Foam Packing Size: 320×270×430mm
Net Weight: 5 kgs, Gross Weight: 6 kgs
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching

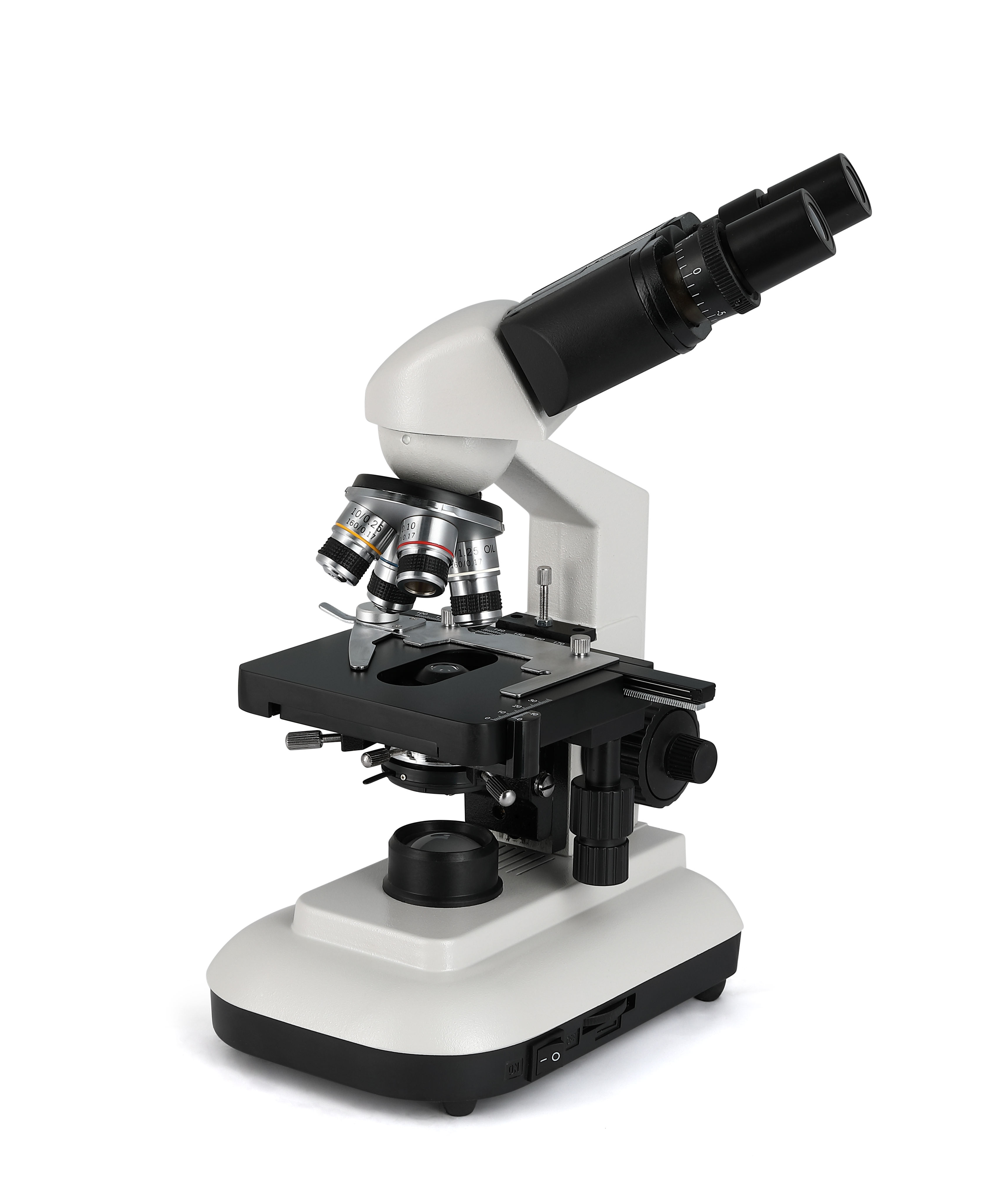

The XSP-106 Series Biological Microscope is a versatile and reliable instrument designed for educational and routine laboratory applications. Built with precision optics and robust mechanics, it delivers clear and sharp images for a wide range of specimens,making it an ideal choice for schools, universities, and clinical labs.
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Key Features:
* Clear & Precise Optics: Features high-quality achromatic objectives (4X, 10X, 40XR, 100XR Oil) that significantly reduce
chromatic aberration, paired with wide-field WF10X/18mm or high-magnification WF16X eyepieces for detailed observation.

* Durable & User-Friendly: The solid metal frame ensures stability. The coaxial coarse and fine focusing (2μm precision) and
double-layer mechanical stage allow for smooth and precise operation, perfect for beginners and students.

* Flexible Viewing Options: Available in both Binocular and Trinocular heads. The trinocular model comes with a standard C-mount adapter (1X/0.5X), ready for connecting a digital camera to capture and share images.

* Optimal Illumination Choices: Equipped with either a bright 6V/20W Halogen lamp or a long-life, cool-running LED lamp,providing sufficient and even illumination for various samples. The Abbe condenser (NA 1.25) with an iris diaphragm enhances image contrast and resolution.

* Complete for Curriculum: With the inclusion of the essential 100X oil immersion objective, this microscope is fully capable for advanced studies in bacteriology and cell biology, meeting all requirements for high school and college-level courses.
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Why Choose Us
Premium Quality: We use high-grade optical glass and robust metal components for durability and clear imaging. Complete Configuration: Comes as a full set, ready to use out of the box for various professional applications. Export Experience: We are experienced in shipping worldwide and ensure secure packaging. Competitive Pricing: Get a professional lab-grade microscope directly from the manufacturer at an excellent price.
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
Professional Biological Microscope Binocular & Trinocular with 100X Oil Lens for Lab Teaching
