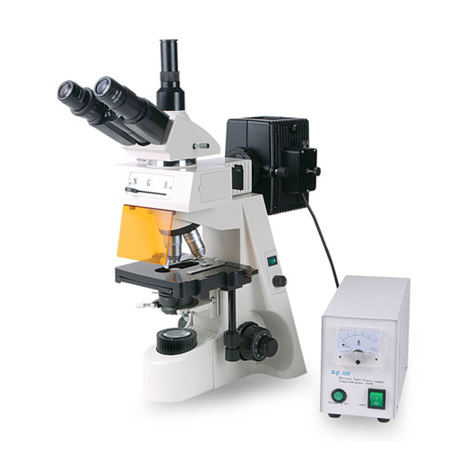

XYL-146 Optical System Epi Fluorescence Trinocular Microscope for Laboratory
XYL-146 Optical System Epi Fluorescence Trinocular Microscope for Laboratory
Specifications
type :
Fluorescence Microscope, Other
Material :
Metal
Model Number :
XYL-146
Brand Name :
CenLee
customized support :
OEM
Price :
$1,135-1,250 / set
Place of Origin :
Hunan, China
Theory :
Fluorescence Microscope
MOQ :
1 set
dimension :
100*100
Drawtube :
Trinocular
Name :
XYL-146 Fluorescence Trinocular Microscope
Certificate :
CE ISO
Description
XYL-146 Optical System Epi Fluorescence Trinocular Microscope for Laboratory
XYL-146 Optical System Epi Fluorescence Trinocular Microscope for Laboratory
XYL-146 Optical System Epi Fluorescence Trinocular Microscope for Laboratory
High efficiency, flexibility and stability are the characters of this series microscope. It is specially developed for various
application fields. It is widely used, from daily work to scientific research,in laboratory, hospital and college. Because of higher cost performance and reasonable humanized design, it becomes the first choice of individual, hospital and scientific research organization.
Specification
Model
XYL-146YA
XYL-146YAT
Viewing head
Compensation Free Binocular
Head .Inclined at 30 °
●
Compensation Free Trinocular
Head .Inclined at 30 °
●
Eyepiece
WF10X/ 22mm
●
●
Objective
Infinity Plan Objective: 4X,10X,40X(S),100X
(S) 0il
●
●
20X,60X(S) objective
○
○
Stage
Double layers mechanical stage
●
●
Stage size: 180mmX 150mm
Moving range : 75mmX 50mm
Fluoroscope box
B 、G Wave band
●
●
U、V Wave band
○
○
Focusing
Coaxial coarse & fine focusing adjustment withrack and pinion mechanism Fine focusing scale
Value 0.002mm
●
●
Condenser
N. A.1.25 Abbe condenser with iris
diaphragm&filter
●
●
Optional Accessory
1.3 or 3.0 Mega pixels CMOS electronic eyepiece
Photography attachment
PInfinite Apochromatic Fluorescent Objectives: 4X,10X,20X,40X,100X
