Fluorescent Inverted Trinocular Microscope Long Working Distance XYL-412Y
Fluorescent Inverted Trinocular Microscope Long Working Distance XYL-412Y
Specifications
dimension :
100*100cm
Drawtube :
Trinocular
Place of Origin :
Hunan, China
Name :
XYL-412Y Fluorescence Trinocular Microscope
customized support :
OEM
Theory :
Fluorescence Microscope
type :
Inverted Microscope, Trinocular Microscope, Fluorescence Microscope
Certificate :
CE ISO
Material :
Metal
Brand Name :
CenLee
Price :
$3,300-3,695 / set
Model Number :
XYL-412Y
MOQ :
1 set
Description
Fluorescent Inverted Trinocular Microscope Long Working Distance XYL-412Y
Fluorescent Inverted Trinocular Microscope Long Working Distance XYL-412Y
Fluorescent Inverted Trinocular Microscope Long Working Distance XYL-412Y

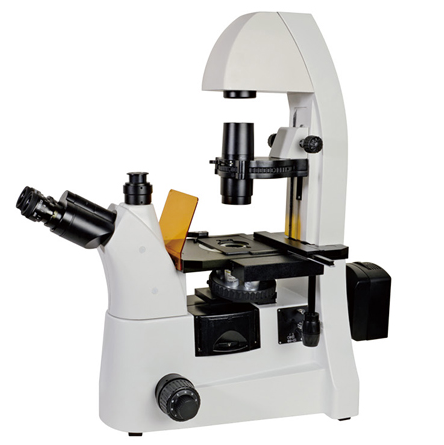

XYL-412Y inverted five wave bands fluorescent microscope is composed of inverted microscope and Epi-fluorscent microscope.The inverted microscope has the feature to observe the specimen in Culture flask and Petri dish.Epi-fluorescent device applies to the fluorescent microscopy.It is equipped with infinite long working distance big numeral aperture Plan Apochromatic objective,phase contrast kit and phase contrast objectives.The transparent alive objects can be observed without dyeing.Epi-fluorescent microscope adopts LED excitation which controlled by touch screen to make fluorescent image clear.Long working distance condenser can contain higher culture dish and specimen.This equipment is specially suitable for micro research of living cells and organization,fluidness and sediment.It is an ideal equipment for researching treatment,epidemic prevention and farming,stock raising & forestry department,etc.
Specification
Optical system
infinite optical system
viewing head
Compensation Free Trinocular Head Inclined at 45°
(50mm-75mm)
Eyepiece
PlanWF10×/22mm
Objective
infinite L.W.D.big numerial aperture plan
appochromatic objective
4×/0.15(L.W.D.21.6mm) ,cover-glass thickness 1.5mm
10×/0.3(L.W.D.3mm),cover-glass thickness 1.5mm
20×/0.5(L.W.D.4.27mm),cover-glass thickness 1.5mm
40×(S) /0.6(L.W.D.2.23mm),cover-glass thickness 1.5mm
Nosepiece
Sextuple Nosepiece
Stage
Double layer mechanical stage
Stage Size:242mm×172mm
Moving Range :75mm×40mm
Low located XY adjusting hand wheel
Focusing
Coaxial coarse & fine focusing adjustment,
fine focusing scale value 0.001mm
Light Source
Transmission illumination
Halogen Bulb 12V/30W,AC85V-230V,
brightness adjustable
Epi-Fluorescent illumination
Five wave bands LED source controlled
by touch screen,LED 8W,
AC85V-230V,brightness adjustable
Fluorescence
attachment
G,B,BV,V,UV
Condense
Abbe condenser,working distance28mm
Phase contrast device
Contrast table(28mm),Centering telescope
Filter
Blue,green,yellow,grosted glass


Optional
Acessory
Eyepiece:WF10×/20mm,crosshair with reticule
0.1mmWF15×/17mm,WF20×/12.5mm
Abbe condenser,Working distance 70mm,Phase contrast turret(70mm)
Photography attachment and CCD C-mount:0.5X,0.57X,0.75X
infiniter L.W.Dbig numerial aperture plan:100×()/N.A.0.9
4X/0.15(L.W.D.21.6mm,phase contrast),cover glass thickness 1.5mm
40X/0.60(L.W.D.2.23mm,phase contrast),cover glass thickness 1.5mm
130Mega,200Mega,300Mega,500Mega,1000Mega
pixels digital camera eyepiece
Image analysis software
