Product Description

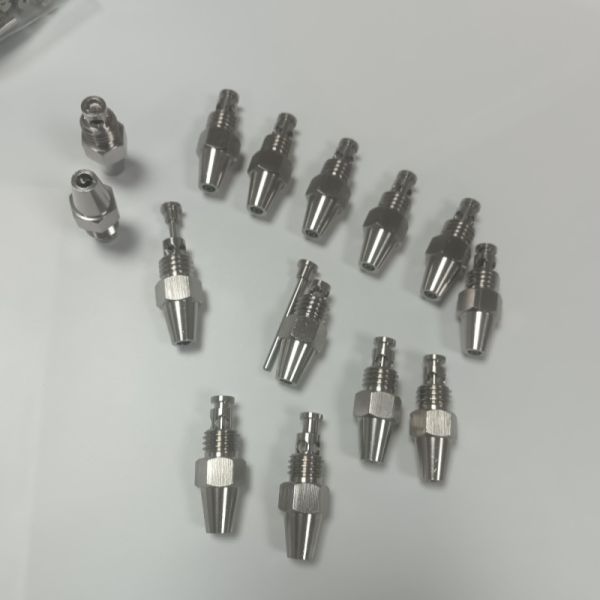

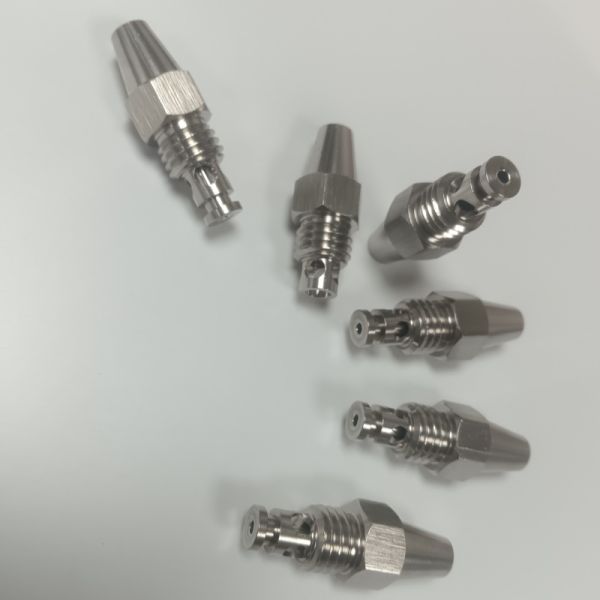

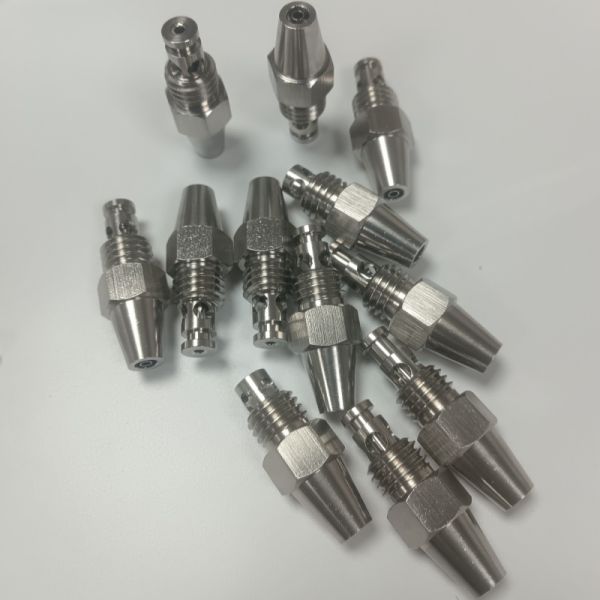

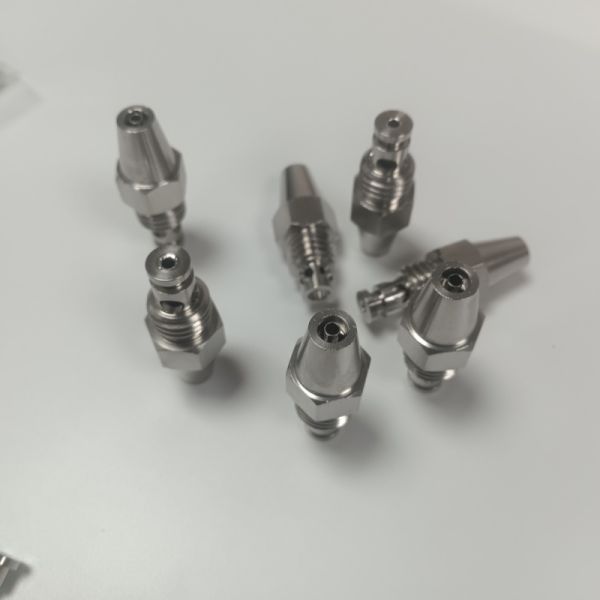

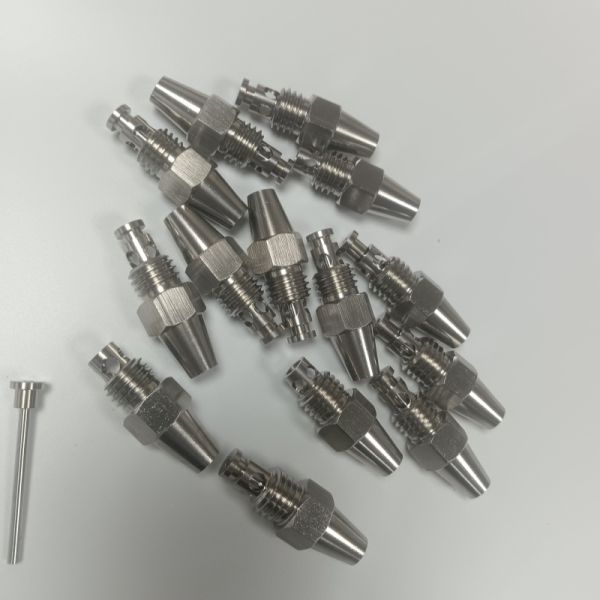

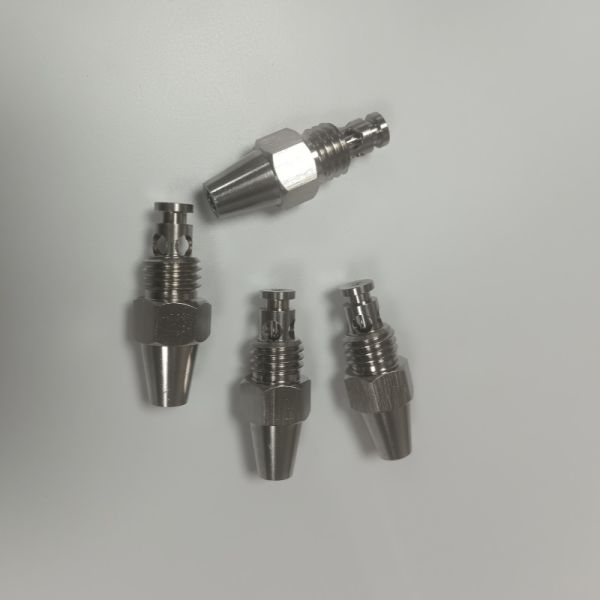

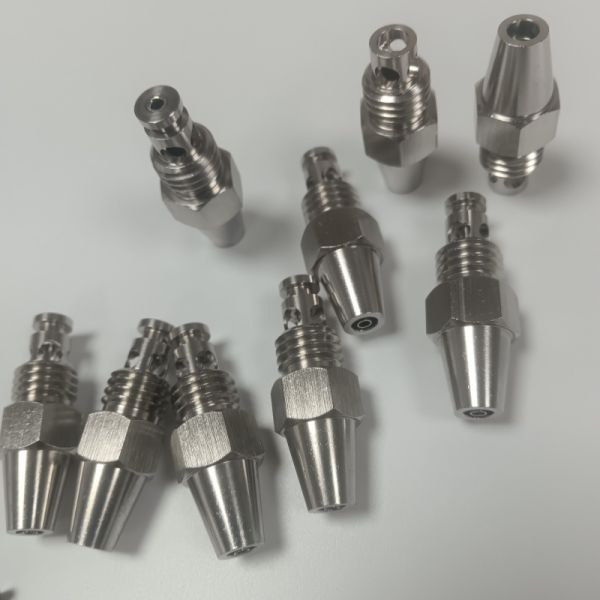

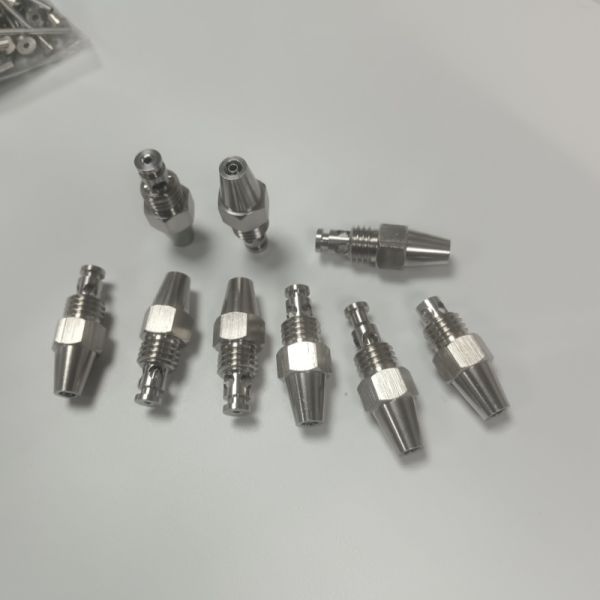

304 Stainless Steel Filling/Spray Liquid Needle CNC Milled Metal Components are precision-engineered parts critical to the function of precision dispensing and spraying systems. Manufactured from corrosion-resistant 304 stainless steel via精密CNC milling, these components form the structural and functional core of needles used for灌装 (filling) and喷液 (liquid spraying) in industries ranging from pharmaceuticals to electronics. The process allows for the creation of complex internal channels, precise orifice geometries, mounting threads, and intricate tip shapes that control fluid dynamics, ensuring accurate, consistent, and reliable droplet formation or stream delivery.

Product Processing

1. Material Selection & Preparation: A solid rod or precision-drawn tube of 304 stainless steel is selected. The material is cut to a suitable blank size, ensuring there is sufficient stock for all machined features.

2. CNC Milling Setup: The blank is securely fixtured in a multi-axis CNC milling machine (often a 4-axis or 5-axis mill or a CNC Swiss-style lathe with live tooling). The setup prioritizes stability for machining the delicate internal and external features.

3. 精密 Machining Operations: The CNC program executes a series of operations in a defined sequence:

   • External Profiling: Milling the outer diameter, tapers, and any external mounting features (e.g., wrench flats, threads).

   • Internal Channel Machining: The most critical step. Using long-reach, small-diameter end mills, the internal fluid path is created. This may include a straight bore, tapered sections, or complex intersections.

   • Orifice/Tip Machining: The dispensing tip is formed. This can involve milling a precise conical shape, creating a flat seat for a ball check valve, or forming a specific spray angle geometry.

   • Feature Creation: Machining side ports, vent holes, or slots if required by the design.

   • Threading: Cutting internal or external threads for assembly into a housing or connection to a fluid line.

4. Deburring & Edge Finishing: All machined edges, especially the internal channels and the critical orifice, undergo meticulous deburring. This is often done with specialized micro-deburring tools, abrasive filaments, or electrochemical processes to ensure perfectly smooth fluid paths with no trapped particles.

5. Surface Enhancement & Cleaning: The parts are electropolished. This process removes microscopic peaks, polishes internal surfaces to a mirror-like finish (reducing friction and adhesion), and passivates the steel for maximum corrosion resistance. A final ultrasonic cleaning removes all processing residues.

6. Rigorous Inspection & Flow Testing: 100% visual inspection under magnification for defects. Critical dimensions are verified with pin gauges, air gauges, and optical comparators. For high-performance applications, sample parts undergo functional flow testing or spray pattern analysis.

Product Applications

• Precision Pharmaceutical灌装: Needles for syringe filling machines, vial stopper piercing needles, and components for peristaltic or positive displacement pump heads.

• Electronics Manufacturing: Dispensing tips for applying precise dots of solder paste, conductive epoxy, or underfill material onto circuit boards.

• Industrial Adhesive & Sealant Dispensing: Nozzles and needles for automated dispensing systems applying glues, silicones, or lubricants in manufacturing.

• Medical Device Assembly: Components for devices that meter and deliver liquid therapeutics, such as insulin pen needles or auto-injector subsystems.

• Analytical Instrumentation: Nebulizer needles for ICP-MS, sample introduction capillaries, and solvent delivery components for chromatography.

• Aerosol & Spray System Nozzles: Core components for creating fine mists or controlled spray patterns in coating, humidification, or cleaning applications.

Product Technical Parameters (Detailed Table)
