Specifications
Certification :
ISO9001, ISO 13485
MOQ :
1,00 pcs
Price :
0.5-20
Brand Name :
yue lin sen
Model Number :
Y02
Place of Origin :
Dongguan City, Guangdong Province
Payment Terms :
T/T
Supply Ability :
50000 pcs One month
Delivery Time :
5-8wofk days
Packaging Details :
Vacuum packaging; cardboard box; wooden box; packaging customized according to product specifications
Model NO. :
12*215
Standard :
GB
Customized :
Custom Processing According to The Drawing
Material :
Stainless Steel
Application :
Metal Processing Machinery Parts
Transport Package :
Vacuum Packaging
Specification :
200*250*400
Trademark :
yue lin sen
Origin :
Dongguan, Guangdong
HS Code :
7301200000
Production Capacity :
500000
Description

Custom High-Quality Long Shaft CNC Precision Milling Solutions

Product Overview Table



Category Description
Product Material High-Quality Stainless Steel (e.g., 304, 316, or 316L Surgical Grade)
Key Properties Excellent Corrosion Resistance, High Strength, Biocompatibility
Primary Use Minimally Invasive Surgical Instruments, Diagnostic Equipment, High-End Medical Devices
Key Processes CNC Deep Hole Drilling, CNC Turning, Precision Grinding, Fine Polishing
Critical Parameters High Straightness, Tight Diameter Tolerance, Superior Surface Finish (Ra ≤ 0.4 µm), High Length-to-Diameter Ratio

Product Description

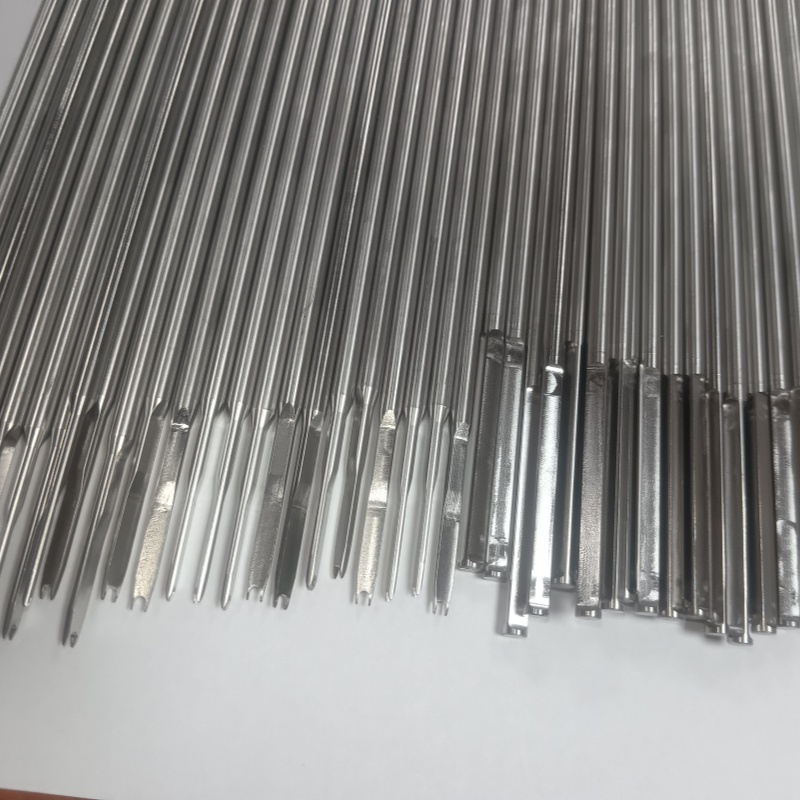

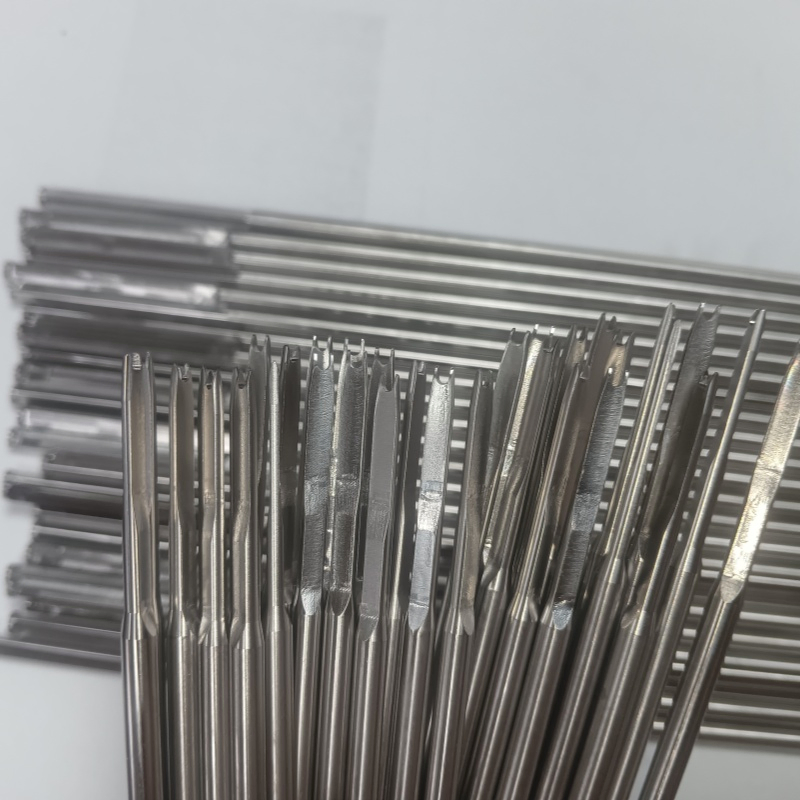

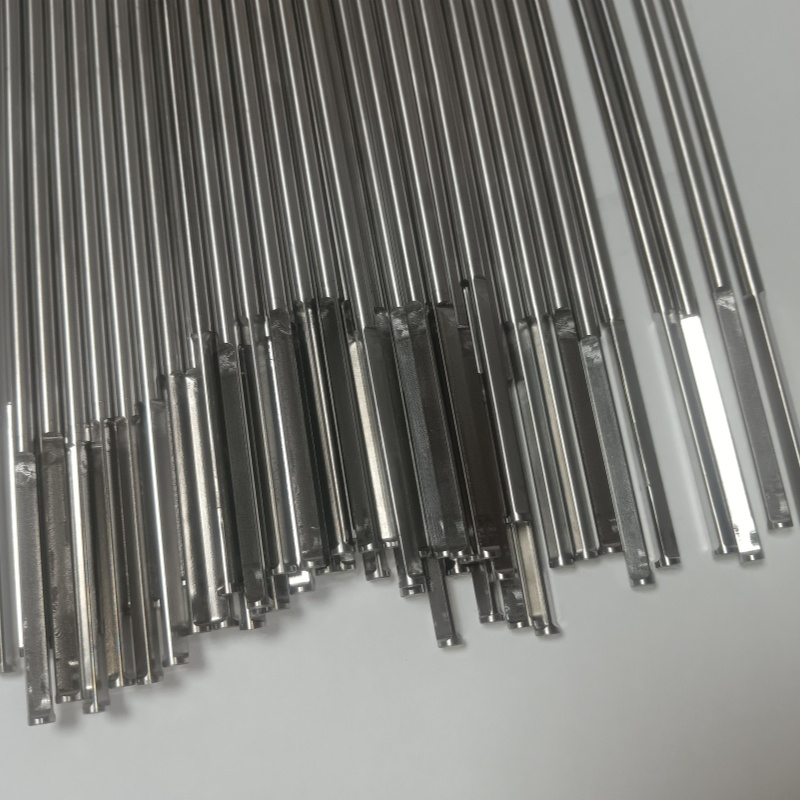

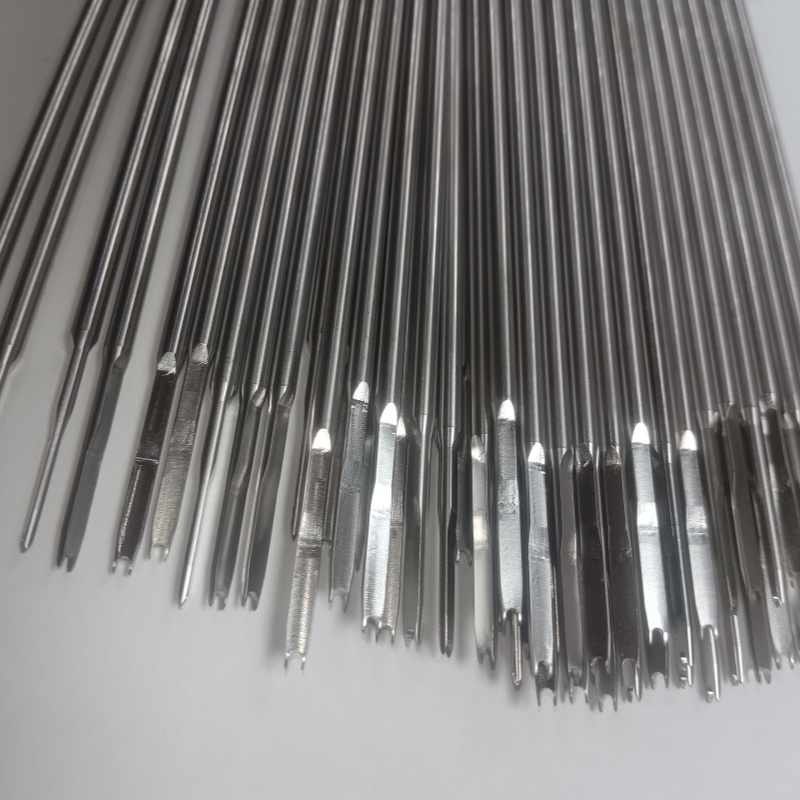

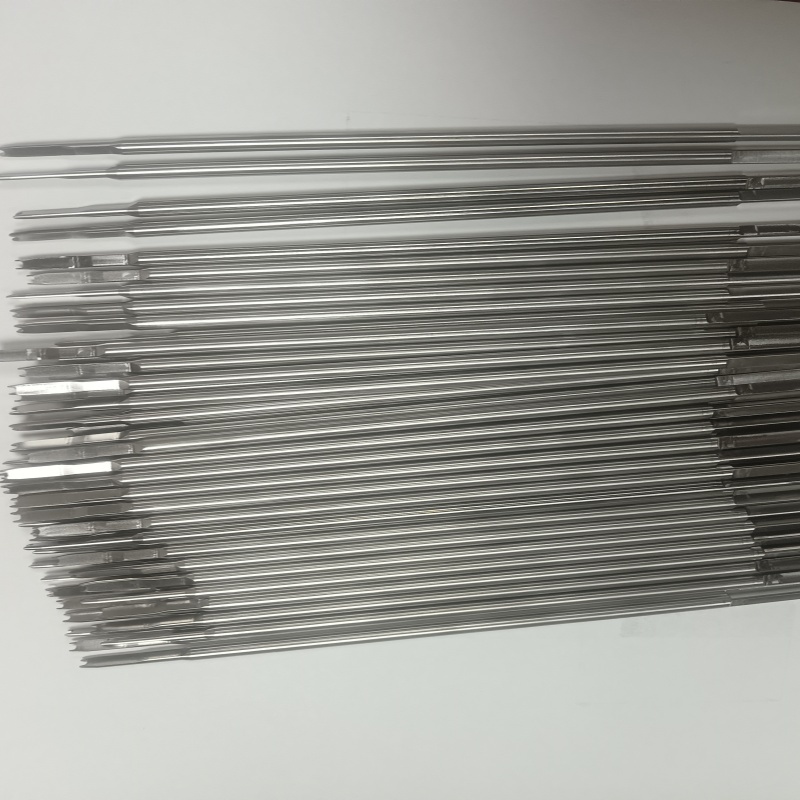

These stainless steel long slender shafts are precision-engineered medical device components. They are manufactured from high-grade stainless steel, ensuring exceptional corrosion resistance and mechanical strength. The entire machining process is meticulously controlled to guarantee outstanding dimensional accuracy and a perfectly smooth surface finish. Each shaft is finely polished to be burr-free, providing a smooth touch that ensures both safety and patient comfort during medical procedures.

Product Material

The shafts are crafted from high-quality, medical-grade stainless steel, typically Type 316 or 316L for its superior corrosion resistance and biocompatibility. This material is chosen for its ability to withstand repeated sterilization cycles (e.g., autoclaving) and harsh chemical environments without degrading.

Product Purpose & Applications

This component is an essential part of modern medical technology. Its primary applications include:

  • Minimally Invasive Surgical Instruments: Used as drive shafts, guide wires, pins, and connectors in endoscopic, arthroscopic, and laparoscopic devices.

  • Diagnostic Equipment: Acts as precise positioning shafts, guides, and probes in imaging and sensing devices.

  • High-End Medical Fields: Found in robotic surgery systems, dental handpieces, and other precision medical tools requiring reliable, slender, and strong mechanical components.

CNC Machining & Manufacturing Process

The production of these shafts involves advanced CNC (Computer Numerical Control) machining techniques:

  • Deep Hole Drilling: Utilizes specialized CNC deep hole drilling (e.g., gun drilling) with advanced high-pressure cooling systems. This effectively manages heat, prevents material deformation, and ensures hole straightness and surface integrity, crucial for product durability and performance.

  • CNC Turning & Grinding: Multi-axis CNC lathes and precision grinders are used to achieve the exact diameters, tight tolerances, and required surface smoothness.

  • Fine Polishing: Automated polishing processes are employed to achieve a flawless, micro-smooth surface finish, eliminating any microscopic burrs.

Product Technical Parameters



Parameter Detail / Value
Material Stainless Steel 316 / 316L (or equivalent)
Diameter Customizable, typically from Ø0.5mm to Ø10mm
Length Customizable, capable of high aspect ratios (long and slender)
Straightness High precision, typically < 0.01mm per 100mm length
Surface Finish Fine polished, Ra ≤ 0.4 µm (or smoother as required)
Tolerance Tight dimensional tolerances (e.g., ±0.005mm)
Core Properties Corrosion resistance, high tensile strength, biocompatibility










Custom High-Quality Long Shaft CNC Precision Milling Solutions
Custom High-Quality Long Shaft CNC Precision Milling Solutions
Custom High-Quality Long Shaft CNC Precision Milling Solutions

Main Product
Custom High-Quality Long Shaft CNC Precision Milling Solutions
Company Profile
Custom High-Quality Long Shaft CNC Precision Milling Solutions
Dongguan Yu Lin Sen Metal Technology Co., Ltd.: Has obtained theGB/T 19001-2016/ISO 9001:2015 quality system certification, as well as the GB/T42061-2022/ISO 13485:2016 medical device quality system certification. Focuses on the research and production of non-standard metal medical device precision parts, mainly as machined metal products. It possesses dozens of high-precision engra-ving lathes and CNCequipment,including CNC numerical control, numerical control centering machine, automatic lathes, turningmilling combined machines, precision laser cutting processing of stainless steel capillary tubes and stainless steel thin-walled tubes for sec-ondary processing. Main materials: stainless steel tubes, stainless steel, copper, aluminum alloy, etc. for non-standard processing and customization. Widely applied in tools, electronics, electrical appliances, medical devices, automotive parts, transportation, and other industries. The company has been recognized by the industry for its "quality-oriented, honest operation" philosophy, mainly providing
non-standard part prototyping and batch production processing, supporting custom drawings and sample customization, etc. The process flow is stable and efficient, integrating industry and trade for rapid delivery, with craftsmanship spirit ensuring quality, without middlemen, excellent value for money, and the company adheres to the business philosophy of "customer first, quality first, striving for excellence, win-win cooperation", "Confident and reliable after-sales guarantee!!!".
Custom High-Quality Long Shaft CNC Precision Milling Solutions
Product Advantage
It has obtained the quality system certification in accordance with GB/T 19001-2016/ISO 9001:2015, as well as the medical device quality system certification in accordance withGB/T 42061-2022/ISO13485:2016. We focus on processing and customizing products for medical device hardware, and we have dozens of precision CNC lathes and precision laser cutting processing equipment. We also have a R&D team composed of senior engineers and technicians. We are committed to providing customers with high-quality and
high-precision processing and customization services for hardware parts, ensuring that each product meets the strict standards and requirements of the medical device industry. Through continuous optimization of production processes and improvement of technical levels, we can meet the diverse needs of customers and contribute to the development of the medical device industry.
