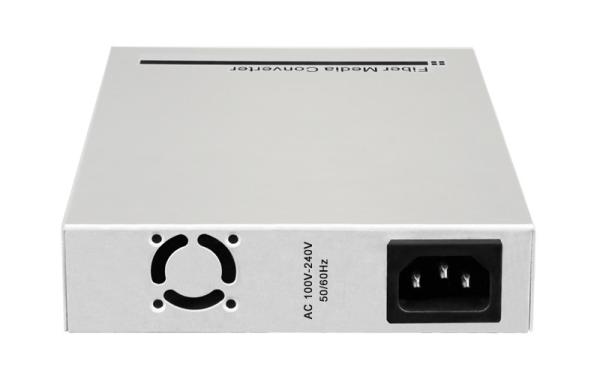

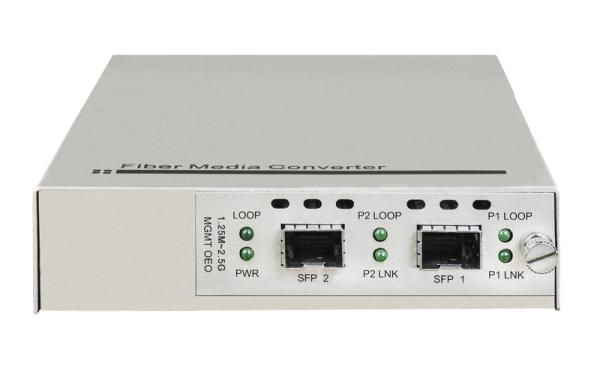

125M - 2.5G OEO Converter SFP To SFP For Web SNMP Console Very Low Delay
125M - 2.5G OEO Converter SFP To SFP For Web SNMP Console Very Low Delay
125M - 2.5G OEO Converter SFP To SFP For Web SNMP Console Very Low Delay
125M - 2.5G OEO Converter SFP To SFP For Web SNMP Console Very Low Delay
125M - 2.5G OEO Converter SFP To SFP For Web SNMP Console Very Low Delay
125M - 2.5G OEO Converter SFP To SFP For Web SNMP Console Very Low Delay
Specifications
Brand Name :
Fiberroad
Model Number :
FR-OEO-U10G-X-1R
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Pls send request details
Payment Terms :
100% t/t inadvance, Western Union, L/C
Supply Ability :
5000pcs/Month
Delivery Time :
2-3 workdays
Packaging Details :
Standard neutral or brand packing
Mode: :
Single mode , Multi mode
Data Rate FX/TX: :
100 Base-SX/LX 10/100 Base-T
Flow Control: :
Full Duplex ,Half duplex
Interface Type :
SFP to SFP
Power Supply :
≤ 3W
Dimension :
115mm ( W )× 78mm ( D )
Description

125M - 2.5G OEO Converter SFP to SFP For Web SNMP Console

Standalone 125M~2.5G OEO Converter with SFP Slot to SFP Slot, , which uses optical -electricity – optical conversion principle to realize optical signal regeneration , enabling of the optical signal amplification and regeneration, and wavelength conversion , with coarse / dense wavelength division multiplexing together to realized WDM transmission . It is now possible to quickly improve communication capacity , expand the bandwidth on present network , while using low-cost, high cost-effective solutions to manage and run the system , easy operation

OEO Converter Key Features :

  • Support 2U Rack(16 Slots )and independent use
  • support network management(Web SNMP, Console),
  • Support in-band management
  • support ITUT prescribed DWDM/CWDM wavelength
  • transmission rate:125Mbps~2.5Gbps
  • Support Jumbo Frame
  • Transparent Transport and very low delay
  • support DMI function for SFP fiber module
  • support hot plugging
  • Full State Led display
  • Easy installation

OEO Converter Specification :

Performance Data

Technical Indexes

Access Type / Transmission Speed

Fast Ethernet

125Mbps

STS-3/STM-1

155.52Mbps

ESCON/SBCON

200Mbps

STS-12/STM-4

622.08Mbps

1×Fiber Channel

1.0625Gbps

Gigabit Ethernet

1.25Gbps

2×Fiber Channel

2.125Gbps

STS-48/STM-16

2.48832Gbps

2.5 InfiniBand or PCI Express

2.5Gbps

Interface Type

SFP to/from SFP

Transmission Distance

Up to SFP module ( Max 80Km )

Local SFP

Support SFP/CWDM/DWDM,Specific optical parameters please refer

different modules's parameters

Remote SFP

Support SFP/CWDM/DWDM,Specific optical parameters please refer

different modules's parameters

power requirement

Rack-mountable : AC 85 ～ 220V OR

DC -48V dual-supply,optional

Standalone: AC 220V OR -48V

Power consumption: ≤ 3W

Work environment

Operating Temp: 0 ～ 50 ℃

Storage Temp: -10 ～ 70 ℃

Humidity: 5%~90% ( non-condensing )

Dimension

Card : 115mm ( W )× 78mm ( D )

Standalone : 156mm ( W )× 128mm ( D )× 32mm ( H )

OEO Converter Ordering information :

P/N

Description

Remark

FR-6201R-SS

125M~2.5G OEO Converter

SFP TO SFP
