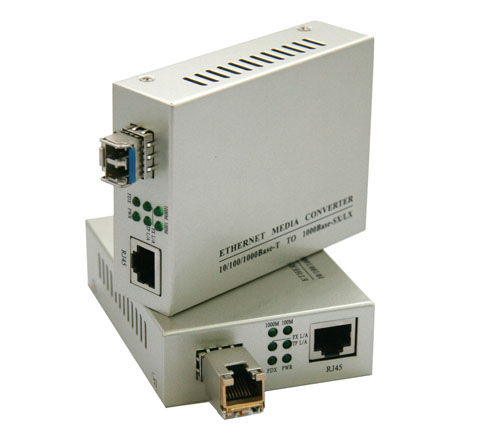

SFP Fiber Optic Media Converter Gigabit
SFP Fiber Optic Media Converter Gigabit
Specifications
Product name :
Fiber Optic Media Converter
Mode: :
Single mode , Multi mode
Data rate: :
10/100/1000Mbps
Data Rate FX/TX: :
100 Base-SX/LX ,100 Base-T,100Base-TX
Flow Control: :
Full Duplex ,Half duplex
Wavelength: :
850nm/1310nm/1550nm
Place of Origin :
China
Brand Name :
Fiberroad
MOQ :
10pcs
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Payment Terms :
100% T/T advance
Supply Ability :
5000pcs/Month
Price :
Pls send request details
Description

SFP Fiber Optic Media Converter Gigabit

  • High Reflectivity 3W 10 / 100 / 1000M SFP Fiber Optic Media Converter Gigabit Transition
  • Conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and 1000Base-SX/LX , full duplex 1000Mworking pattern.
  • With distinct HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control, decrease of broadcast storm.
  • With famous brand optical-electronic-integration module providing excellent optical and electrical properties toensure reliable data transmission and long working life.
  • Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
  • Supporting Link Fail Pass fiber breaking defecting(can be chosen).
  • Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
  • Supporting 9kbyte super data packet transmission .
  • Supporting LFP.
  • Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission andfull/half duplex, data rate.
  • With more than 50, 000 hours MTBF, complying with telecom operating standard.

Technical Parameter Description:

Technical Parameter:

Access Method:

10/100/1000Mbps

Standard:

IEEE802.3, IEEE802.3u, IEEE802.3ab , IEEE802.3z , IEEE802.1q, IEEE802.1p, IEEE802.1d

Conversion Method:

Media Conversion

Time Delay:

<10us

BER:

<1/1000000000

LED Indicator Lamps:

1000M, 100M , FX LINK/ACT, TP LINK/ACT, FDX, POWER

Power Supply:

DC5V 1A (external power) , AC220 0.5A /DC-48( internal power )

Power Dissipation:

3W

Operating Temperature:

0 ~ 50 ℃

Humidity:

5%~90%

Storage Temperature:

-40~ 70 ℃

Storage Humidity:

5%~90% non-condescending

Dimension:

25mm(H)* 70mm (W)* 93mm (D)

Order information:

Model No.

Description

FR-1201SFP

10/100/ 1000M SFP Media Converter

SFP Fiber Optic Media Converter Gigabit
