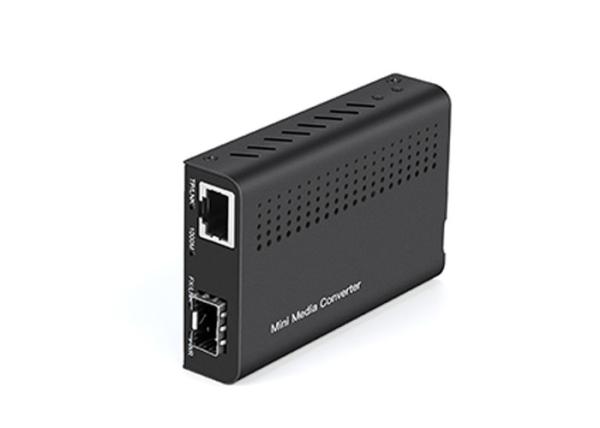

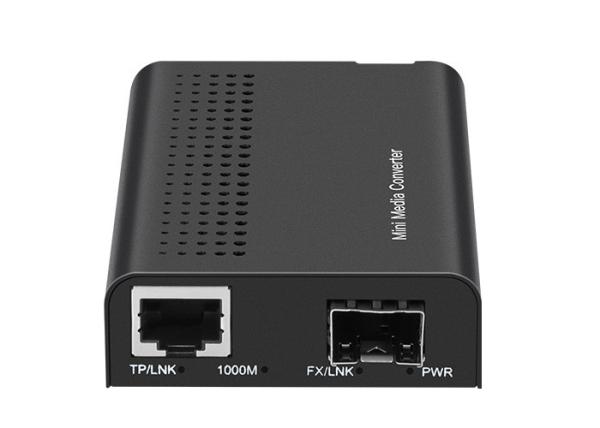

Multi Mode SFP Gigabit Fiber Media Converter 9k Super Data Packet Transmission
Multi Mode SFP Gigabit Fiber Media Converter 9k Super Data Packet Transmission
Multi Mode SFP Gigabit Fiber Media Converter 9k Super Data Packet Transmission
Multi Mode SFP Gigabit Fiber Media Converter 9k Super Data Packet Transmission
Multi Mode SFP Gigabit Fiber Media Converter 9k Super Data Packet Transmission
Multi Mode SFP Gigabit Fiber Media Converter 9k Super Data Packet Transmission
Specifications
Brand Name :
FiberRoad
Model Number :
FR-1501SFP
Certification :
CE / ROHS
Place of Origin :
Shenzhen China
MOQ :
10Pcs
Price :
Pls send request details
Supply Ability :
5000pcs/Month
Packaging Details :
Standard neutral or brand packing
Delivery Time :
2-3 workdays
Product Name :
Gigabit Fiber Optic Media Converter
Mode :
Single Mode , Multi Mode
Data Rate :
10/100/1000M
Port :
1-Fx to 1-RJ45
Wavelength :
850nm/1310nm/1550nm
Buffer Size :
1Mbit
Description

Multi Mode SFP Media Converter 9k Super Data Packet Transmission

SFP Media Converter Features:

• Conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and
1000Base-SX/LX , full duplex 1000Mworking pattern.
• With distinct HIC solution, low-temperature-rise chip, no need of cooling system,
realization of flow control, decrease of broadcast storm.
• With famous brand optical-electronic-integration module providing excellent optical and
electrical properties to ensure reliable data transmission and long working life.
• Supporting broadcast filtering, address auto-learning and auto-updating, and
store-and-forward operating mechanism.
• Supporting full-duplex flow control or half-duplex back pressure working pattern, along
with Auto-negotiation.
• Supporting 9kbyte super data packet transmission By store and forwarder mode.
• Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data
transmission and full / half duplex, data rate.
• With more than 50,000 hours MTBF, complying with telecom operating standard.

SFP Media Converter Technical Parameter:

Technical Parameter:

Access Method:

10/100Mbps

Standard:

IEEE802.3 , IEEE802.3u, IEEE802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1d

Wavelength:

850nm/1310nm/1550nm

Distance:

Dual Fiber MM : 2Km

Dual Fiber SM : 10/20/30/50/80Km

Single Fiber SM : 20/40/60Km

CAT5 : 100m

Conversion Method:

Media Conversion, Store-and-Forward/straight through

MAC Address Table:

1 K

Buffer Size:

1Mbit

Flow Control:

Duplex : flow control ; Half duplex : back pressure

Time Delay:

Store-and-Forward : 9.6us , Straight-through : 0.9us

BER:

<1/1000000000

LED Indicator Lamps:

TP 100 , FX 100 , FX LINK/ACT, TP LINK/ACT, , FDX, POWER

Power Supply:

DC5V 1A (external power) , AC220 0.5A /DC-48( internal power )

Power Dissipation:

<2.5W

Operating Temperature:

0 ~ 50 ℃

Humidity:

5%~90%

Storage Temperature:

-40~ 70 ℃

Dimension:

25mm (H)* 70mm (W)* 93mm (D)

Order information:

Model No. Description
FR-1501SFP 10/100/ 1000M SFP Media Converter
