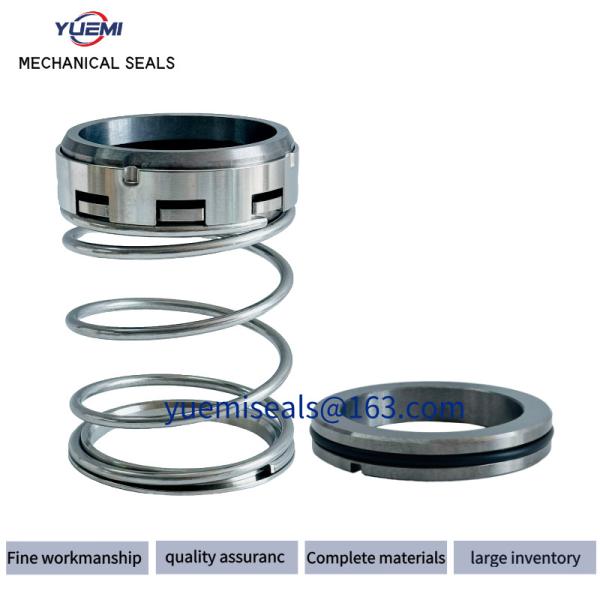

American oil pump T1- 2 1/2 T1-2.5 Mechanical Seals Type 1 Replace to J-Crane Elastomer Bellows Mechanical Seal
American oil pump T1- 2 1/2 T1-2.5 Mechanical Seals Type 1 Replace to J-Crane Elastomer Bellows Mechanical Seal
American oil pump T1- 2 1/2 T1-2.5 Mechanical Seals Type 1 Replace to J-Crane Elastomer Bellows Mechanical Seal
American oil pump T1- 2 1/2 T1-2.5 Mechanical Seals Type 1 Replace to J-Crane Elastomer Bellows Mechanical Seal
American oil pump T1- 2 1/2 T1-2.5 Mechanical Seals Type 1 Replace to J-Crane Elastomer Bellows Mechanical Seal
American oil pump T1- 2 1/2 T1-2.5 Mechanical Seals Type 1 Replace to J-Crane Elastomer Bellows Mechanical Seal
Specifications
Brand Name :
YUE MI
Model Number :
T2
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
10/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Sealing :
FKM CAR SIC TC CE NBR EPDM
Spring :
Stainless Steel
Face :
TC/TC
Appliion :
water pumps
Materail :
CAR SIC TC PTFE
Seal Faces :
Car/SIC
Secondary Sealing :
VIT EPDM
Description
American oil pump T1- 2 1/2
Model

d1

(mm)

 d3 d7 l1 l3
YM T1-5/8 " 15.875 27.8 31.75 43.6 10.3
YM T1-3/4" 19.05 30.9 34.925 43.6 10.3
YM T1-1 " 25.400 38.1 41.275 50.77 11.1
YM T1-1 1/8" 28.575 41.5 44.450 52.40 11.1
YM T1-1 1/4" 31.750 46.0 47.625 52.40 11.1
YM T1-1 3/8" 34.925 47.6 50.800 53.90 11.1
YM T1-1 7/16" 36.500 50.8 53.975 53.90 11.1
YM T1-1 1/2" 38.100 50.8 53.975 53.90 11.1
YM T1-1 5/8" 41.275 57.2 60.325 63.50 12.7
YM T1-1 3/4" 44.450 60.5 63.500 63.50 12.7
YM T1-1 7/8" 47.625 63.5 66.675 66.70 12.7
YM T1-2" 50.800 66.7 69.850 66.70 12.7
YM T1-2 1/8" 53.975 71.4 76.200 74.60 14.3
YM T1-2 1/4" 57.150 74.6 79.375 74.60 14.3
YM T1-2 3/8" 60.325 77.8 82.550 77.80 14.3
YM T1-2 1/2" 63.500 81.0 85.725 77.80 14.3
YM T1-2 5/8" 66.675 85.7 85.725 85.75 15.9
YM T1-2 3/4" 69.850 88.9 88.900 85.75 15.9
YM T1-2 7/8" 73.025 92.0 95.250 88.90 15.9
YM T1-3" 76.200 95.2 98.425 88.90 15.9
YM T1-3 1/2" 88.9 111.1 111.1 99.18 19.8

Type 1 Full Convolution Industrial-duty Elastomer Bellows Shaft Seal

With its proven track record of exceptional performance, the Type 1 elastomer bellows seal is widely recognized as the industry's workhorse. Suitable for a wide range of service conditions ranging from water and steam to chemicals and corrosive materials, the Type 1 mechanical seal is ideal for use in pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment.

It is frequently used by the pulp and paper, petrochemical, food processing, wastewater treatment, chemical processing and power generation industries.

Features

  • To absorb both breakout and running torque, the seal is designed with a drive band and drive notches that eliminate overstressing of bellows. Slippage is eliminated, protecting the shaft and sleeve from wear and scoring.
  • Automatic adjustment compensates for abnormal shaft-end play, run-out, primary ring wear and equipment tolerances. Uniform spring pressure compensates for axial and radial shaft movement.
  • Special balancing accommodates higher-pressure applications, greater operating speeds and lower wear.
  • Non-clogging, single-coil spring allows for greater dependability than multiple spring designs. Will not run foul due to fluid contact.
  • Low drive torque improves performance and reliability.

Parameters

TEMPERATURE LIMITS:
-40°F to 400°F/-40°C to 205°C (depending on materials used)

PRESSURE LIMITS:
Type 1: 425 psi(g)/29 bar(g)
Type 1B: 1200 psi(g)/82 bar(g)

Recommended Applications

  • Process pumps
  • Other rotating equipment

FAQ


Q1:Are you a factory or trading company
A1: We are a factory with independent import and export right.

Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.

Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.

Q4: Can I order one piece for samples to test the quality?
A4: yes ,the samples are free ,express cost are on your side.

Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time, the tracking number
will be provided to you once the consignment is shipped.

Q6: Do you have products in stock?
A6:Yes, for most standard products ,we have.

Q7:Can you produce Non standard (OEM) product?
A7:Yes, OEM is acceptable, we can produce non-standard products as your requirements (according to your sample or drawing)
