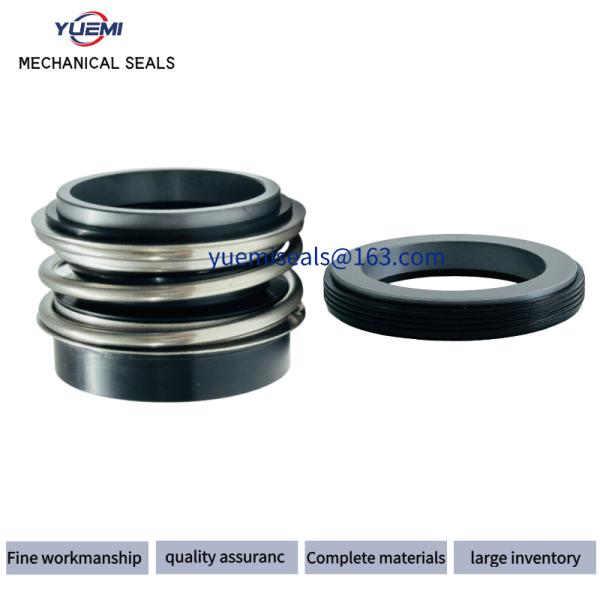

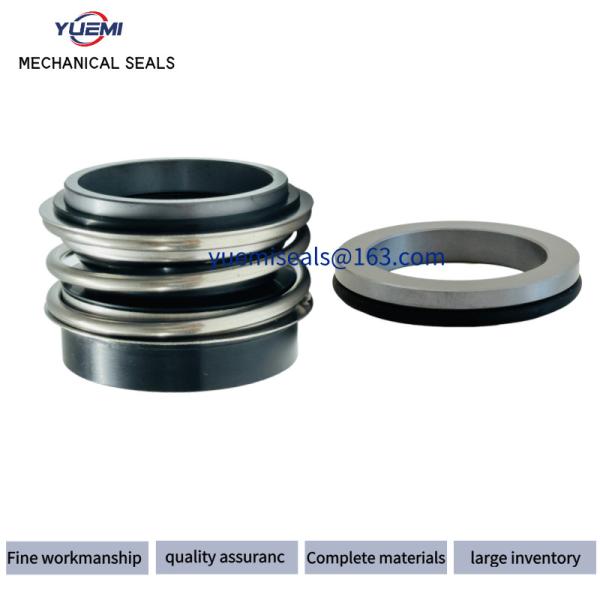

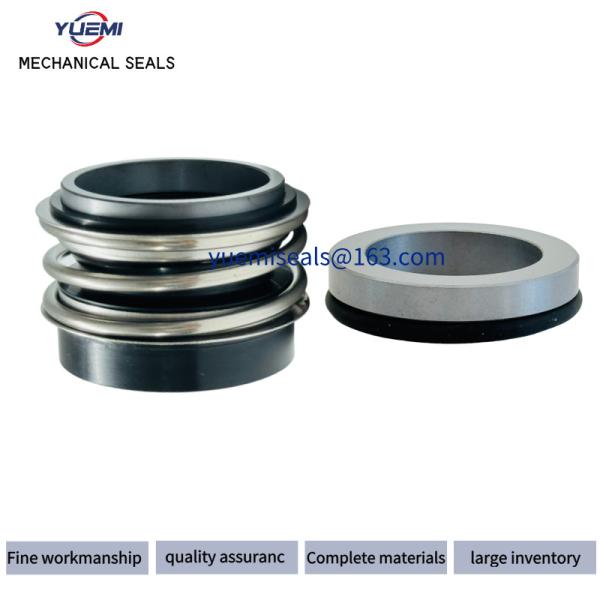

Replace Aesseal B012 Flowserve 192 Burg Mg12 Mg1 Mg12 Mg13 Mg1s20 Rubber Bellow Mechanical Seal For Water Pump
Replace Aesseal B012 Flowserve 192 Burg Mg12 Mg1 Mg12 Mg13 Mg1s20 Rubber Bellow Mechanical Seal For Water Pump
Replace Aesseal B012 Flowserve 192 Burg Mg12 Mg1 Mg12 Mg13 Mg1s20 Rubber Bellow Mechanical Seal For Water Pump
Replace Aesseal B012 Flowserve 192 Burg Mg12 Mg1 Mg12 Mg13 Mg1s20 Rubber Bellow Mechanical Seal For Water Pump
Replace Aesseal B012 Flowserve 192 Burg Mg12 Mg1 Mg12 Mg13 Mg1s20 Rubber Bellow Mechanical Seal For Water Pump
Replace Aesseal B012 Flowserve 192 Burg Mg12 Mg1 Mg12 Mg13 Mg1s20 Rubber Bellow Mechanical Seal For Water Pump
Specifications
Brand Name :
YUE MI
Model Number :
MG12
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Equivalent :
Burg Mechanical Seal Type 1
Oem :
supper
Materail :
CAR SIC TC CER
Appliion :
water pump
Model No :
MG12
Oem/Odm :
Available
Shaft Diameter :
20mm - 100mm
Leadtime :
Fast to Ship
Size Of Product :
consult
Description

MG1
Features

  • For plain shafts
  • Single and dual seal
  • Elastomer bellows rotating
  • Balanced
  • Independent of direction of rotation
  • No torsion on bellows

Advantages

  • Shaft protection over entire seal length
  • Protection of seal face during installation due to special bellows design
  • Insensitive to shaft deflections due to large axial movement ability
  • Universal application opportunities
  • Important material certifications available
  • High flexibility due to wide offer on materials
  • Suitable for low-end sterile applications
  • Special design for hot water pumps (RMG12) available
  • Dimension adaptions and additional seats available

Materials

Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1, eSiC-Q7)
Seat: Silicon carbide (Q1, eSic-Q7), Tungsten carbide (U3)
Elastomer: NBR (P), EPDM (E), FKM (V),
HNBR (X4)
Metal parts: CrNiMo steel (G), Hastelloy® (M)
Further materials upon request.

MG12
Dimensions, items and designations same as for MG1, but with an extended bellows tail to achieve the fitting length I1k according to EN 12756 in combination with seat G6 or G60 (da exceeds EN 12756).
MG13
Dimensions, items and designations same as for MG1, but with an extended bellows tail to achieve the fitting length I1N according to EN 12756 in combination with seat G6 or G60 (da exceeds EN 12756).
MG1S20
Dimensions, items and designations same as for MG1, but with an extended bellows tail to achieve the special fitting length I1S in combination with seat G50.
Replace Aesseal B012 Flowserve 192 Burg Mg12 Mg1 Mg12 Mg13 Mg1s20 Rubber Bellow Mechanical Seal For Water Pump
MG12
Seal size
d(mm)		 d d2 dst d3 l1
10 10 20.5 24.0 22.5 25.9
12 12 22.5 26.0 25.0 25.9
14 14 26.5 30.0 28.5 28.4
16 16 26.5 30.0 28.5 28.4
18 18 29.0 33.0 32.0 30.0
20 20 33.0 38.0 37.0 30.0
22 22 33.0 38.0 37.0 30.0
24 24 38.0 44.0 42.5 32.5
25 25 38.0 44.0 42.5 32.5
28 28 44.0 50.0 49.0 35.0
30 30 44.0 50.0 49.0 35.0
32 32 46.0 55.0 53.5 35.0
33 33 46.0 55.0 53.5 35.0
35 35 50.0 59.0 57.0 35.0
38 38 53.0 61.0 59.0 36.0
40 40 55.0 64.0 62.0 36.0
43 43 58.0 67.0 65.5 36.0
45 45 60.0 70.0 68.0 36.0
48 48 63.0 74.0 70.5 36.0
50 50 65.0 77.0 74.0 38.0
53 53 70.0 81.0 78.5 36.5
55 55 72.0 83.0 81.0 36.5
58 58 75.0 88.0 85.5 41.5
60 60 79.0 91.0 88.5 41.5
65 65 84.0 96.0 93.5 41.5
68 68 88.0 100.0 96.5 41.2
70 70 90.0 103.0 99.5 48.7
75 75 95.0 110.0 107.0 48.7
80 80 100.0 116.0 112.0 48.0
85 85 107.0 124.0 120.0 46.0
90 90 114.0 131.0 127.0 51.0
95 95 119.0 136.0 132.0 51.0
100 100 124.0 140.0 137.0 51.0
