Type 1 Mechanical Seals Inch Elastomer Bellows Seal for John Crane Water Pumps
Type 1 Mechanical Seals Inch Elastomer Bellows Seal for John Crane Water Pumps
Type 1 Mechanical Seals Inch Elastomer Bellows Seal for John Crane Water Pumps
Type 1 Mechanical Seals Inch Elastomer Bellows Seal for John Crane Water Pumps
Type 1 Mechanical Seals Inch Elastomer Bellows Seal for John Crane Water Pumps
Type 1 Mechanical Seals Inch Elastomer Bellows Seal for John Crane Water Pumps
Specifications
Brand Name :
YUE MI
Model Number :
T1
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
30/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Delivery :
Faster Delivery Time
Working Medium :
Water, oil and weakly-corrosive mediums
Pump Seal :
John Crane Pump Seal
Spring Type :
Single or Multiple Springs
Rotary Ring :
Carbon, Silicon Carbide,
Seal Face :
Carbon Vs Ceramic
Customization :
Accept
Processing :
Drawing
Performance :
Corrosion
Spring Material :
Stainless Steel
Face :
VIT SSIC SSIC
Description

YUEMI pump mechanical seal T1

Type 1 Full Convolution Industrial-duty Elastomer Bellows Shaft Seal

With its proven track record of exceptional performance, the Type 1 elastomer bellows seal is widely recognized as the industry's workhorse. Suitable for a wide range of service conditions ranging from water and steam to chemicals and corrosive materials, the Type 1 mechanical seal is ideal for use in pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment.

It is frequently used by the pulp and paper, petrochemical, food processing, wastewater treatment, chemical processing and power generation industries.

Features

  • To absorb both breakout and running torque, the seal is designed with a drive band and drive notches that eliminate overstressing of bellows. Slippage is eliminated, protecting the shaft and sleeve from wear and scoring.
  • Automatic adjustment compensates for abnormal shaft-end play, run-out, primary ring wear and equipment tolerances. Uniform spring pressure compensates for axial and radial shaft movement.
  • Special balancing accommodates higher-pressure applications, greater operating speeds and lower wear.
  • Non-clogging, single-coil spring allows for greater dependability than multiple spring designs. Will not run foul due to fluid contact.
  • Low drive torque improves performance and reliability.

Parameters

TEMPERATURE LIMITS:
-40°F to 400°F/-40°C to 205°C (depending on materials used)

PRESSURE LIMITS:
Type 1: 425 psi(g)/29 bar(g)
Type 1B: 1200 psi(g)/82 bar(g)

Recommended Applications

  • Process pumps
  • Other rotating equipment

Type 1 Mechanical Seals Inch Elastomer Bellows Seal for John Crane Water Pumps

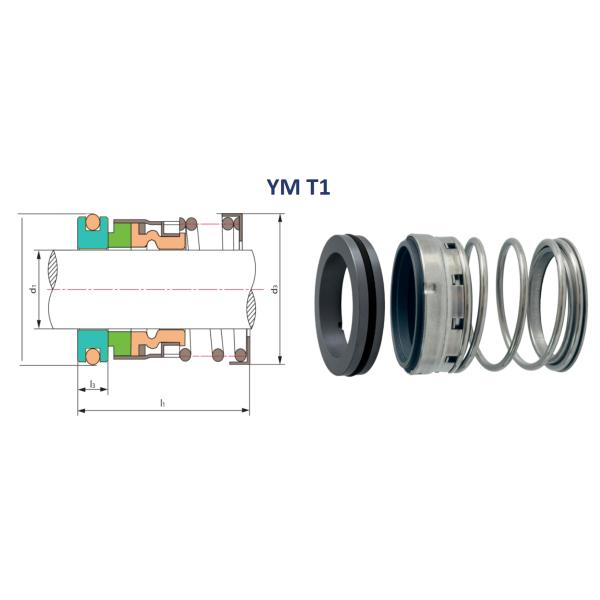

Model

d1

(mm)

 d3 d7 l1 l3
T1-5/8 " 15.875 27.8 31.75 43.6 10.3
T1-3/4" 19.05 30.9 34.925 43.6 10.3
T1-1 " 25.400 38.1 41.275 50.77 11.1
T1-1 1/8" 28.575 41.5 44.450 52.40 11.1
T1-1 1/4" 31.750 46.0 47.625 52.40 11.1
T1-1 3/8" 34.925 47.6 50.800 53.90 11.1
T1-1 7/16" 36.500 50.8 53.975 53.90 11.1
T1-1 1/2" 38.100 50.8 53.975 53.90 11.1
T1-1 5/8" 41.275 57.2 60.325 63.50 12.7
T1-1 3/4" 44.450 60.5 63.500 63.50 12.7
T1-1 7/8" 47.625 63.5 66.675 66.70 12.7
T1-2" 50.800 66.7 69.850 66.70 12.7
T1-2 1/8" 53.975 71.4 76.200 74.60 14.3
T1-2 1/4" 57.150 74.6 79.375 74.60 14.3
T1-2 3/8" 60.325 77.8 82.550 77.80 14.3
T1-2 1/2" 63.500 81.0 85.725 77.80 14.3
T1-2 5/8" 66.675 85.7 85.725 85.75 15.9
T1-2 3/4" 69.850 88.9 88.900 85.75 15.9
T1-2 7/8" 73.025 92.0 95.250 88.90 15.9
T1-3" 76.200 95.2 98.425 88.90 15.9
T1-3 1/2" 88.9 111.1 111.1 99.18 19.8
