Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Specifications
Brand Name :
YUE MI
Model Number :
Russia Marine
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Service :
OEM Customized Services
Elatomer :
NBR, EPDM, Viton, FEP etc
Delivery :
Faster Delivery Time
Seal Face :
Carbon vs Ceramic
Support :
Non-Standard Customization
Structure :
Deep Groove
Model :
IMO-22
Processing :
Drawing Basis
Description
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal - Oil End Impeller End
Russia Marine Shaft Seals IMO Ace 3 Pump194030 Mechanical Seal Oil End Impeller End
Product Overview

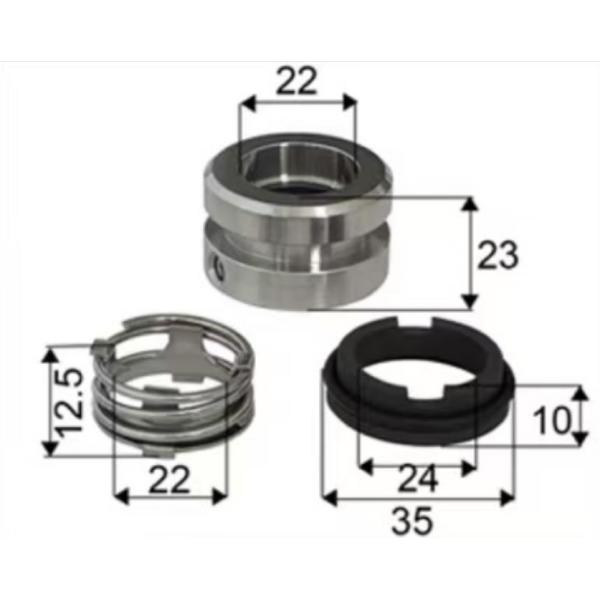

22mm Lidering AL-NL-22 mechanical seal 190497 designed specifically for IMO Pump ACE 3 applications in marine and industrial environments.

Operational Specifications
Parameter Specification
Temperature Range -40ºC to 220ºC (dependent on elastomer selection)
Maximum Pressure Up to 25 bar
Maximum Speed Up to 25 m/s
Axial Float Allowance ±1.0mm
Size 22mm
Construction Materials
  • Face Materials: SS304, SS316
  • Seat Material: Carbon
  • O-ring Options: NBR, EPDM, VIT, Aflas, FEP, Kalrez, Chemraz
  • Metal Components: SS304, SS316, Hastelloy C, AM350
