YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal
YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal
YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal
YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal
YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal
YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal
Specifications
Brand Name :
YUE MI
Model Number :
560D-30/35
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Model :
560D-30/35
Seat :
Ceramic, Sic, Tc
Face :
VIT SIC SIC
Usage :
Balanced
Keywords :
pump seal
Metal Parts :
SS304, SS316
Pump Seal :
Double End Seal
Description
YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal
A high-performance dual mechanical seal featuring back-to-back arrangement with excellent chemical resistance and solids handling capabilities.
Key Features
  • Dual seal configuration for enhanced reliability
  • Excellent chemical resistance and solids handling capability
  • In-house manufactured sliding parts for quality control
Product Advantages
The 560 series combines the benefits of dual seal technology with the proven performance of the 560 base design, offering superior sealing performance in demanding applications.
Operating Range
Shaft Diameter 13 ... 50 mm (0.51" ... 1.96")
Pressure d ≤19 mm: 2 bar (29 PSI), d ≥ 20 mm: 3 bar (44 PSI), vacuum ... 0.1 bar (1.45 PSI)
Temperature -20 °C ... +70 °C (-4 °F ... 158 °F)
Sliding Velocity 5 m/s (16 ft/s)
Axial Movement ±1.0 mm
Material Specifications
Seal Face Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
Seat Aluminium oxide (V), Silicon carbide (Q1, Q2)
Elastomer NBR (P)
Metal Parts CrNi steel (F)
Recommended Applications
Industries: Water and waste water technology, Chemical industry, Process industry
Media: Water and waste water, Glycols, Oils
Equipment: Industrial pumps, Submersible pumps, Engine pumps, Circulating pumps
YUEMI 560d30/35 Double End Single-Spring Seal Balanced Mechanical Seal

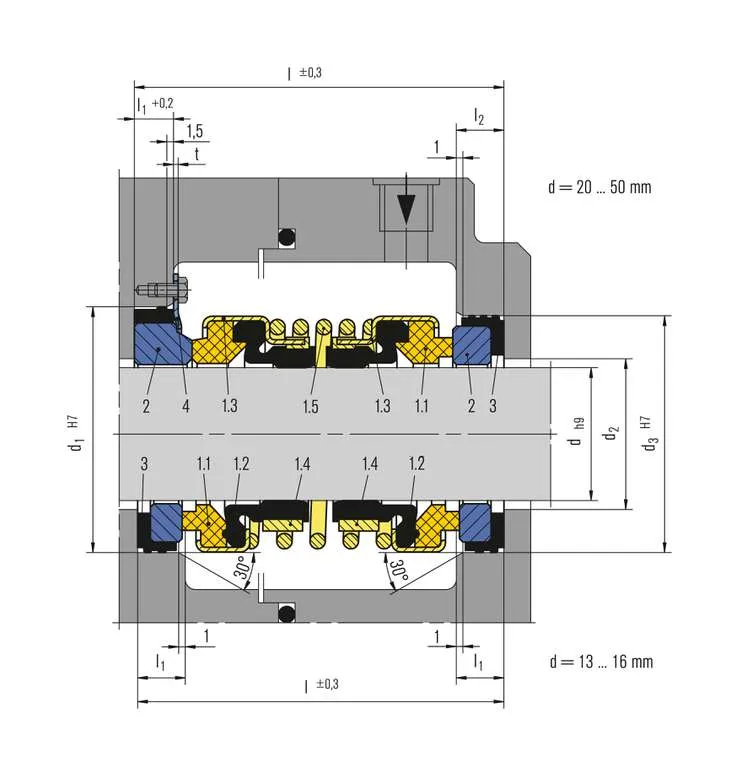

Component Identification
Item Description
1.1 Seal face
1.2 Bellows
1.3 Spring collar
1.4 Drive collar
1.5 Spring
2 Seat
3 Corner sleeve
4 Washer
Dimensional Specifications (mm)
d d1 d2 d3 d4 d5 l l1 l2 l3
13 25 17 25 - - 36 5 - -
14 30 20 30 - - 36 5 - -
15 30 20 30 - - 36 5 - -
16 30 20 30 - - 36 5 - -
20 44 23 38 60 72 49 7 7 1.0
25 50 28 44 60 72 51 7 7 1.0
30 57 33 50 70 82 59 9 8 1.0
35 64 38 58 80 94 61 9 9 1.2
40 70 43 64 85 100 64.5 11 9 1.2
45 70 48 66 90 105 65 10 9 1.0
50 80 53 72 95 109 69.5 10 9 1.2
