Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal
Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal
Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal
Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal
Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal
Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal
Specifications
Brand Name :
YUE MI
Model Number :
MG1 TD
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Pump :
pump SEAL
Bearing :
Nuetral, customised
Stainless Steel Material :
SS304.SS316
Structure :
Conical Spring
Standard Or Nonstand :
Standard
Origin :
Guangzhou, China
Spring :
Stainless Steel
Elatomer :
NBR, EPDM, Viton
Tungsten Carbide Seal :
Water Pump Seal
Service :
OEM&ODM
Spring Material :
Stainless Steel
Face Material :
Carbon Sic Tc
Description
Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal
Product Overview
High-performance mechanical seal designed for rotating equipment including centrifugal pumps and agitators, suitable for general and light chemical applications where elastomer secondary seals are applicable.
Working Conditions
  • Compatible Media: All types of rotating equipment including centrifugal pumps and agitators
  • Temperature Range: -30°C to 200°C
  • Maximum Pressure: ≤1.2 MPa
  • Maximum Speed: ≤12 m/sec
Material Composition
  • Stationary Ring: Ceramic / SiC / TC
  • Rotary Ring: Carbon / SiC / TC
  • Secondary Seal: NBR / EPDM / Viton
  • Spring and Punched Parts: Steel
Product Image
Bur-gmann New MG1 TD Rubber Bellow Mechanical Seal Replacement Water Pump Seal

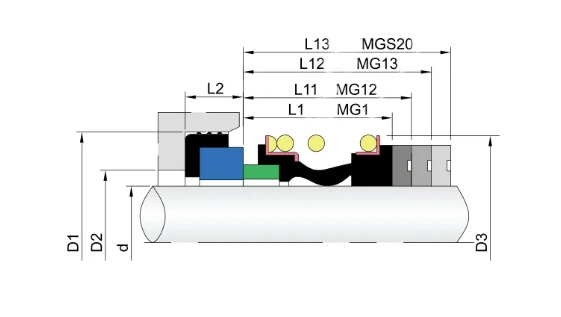

Technical Specifications
D1 (mm) Size Code D3 D7 L4 L1 L11 L12
10010024.0021.006.6014.5025.9033.40
12012024.0023.006.6015.0025.9033.40
14014028.0025.006.6017.0028.4033.40
15015028.0027.006.6017.0028.4033.40
16016028.0027.006.6017.0028.4033.40
18018031.0033.007.5019.5030.0037.50
20020036.0035.007.5021.5030.0037.50
22022036.0037.007.5021.5030.0037.50
24024040.5039.007.5022.5032.5042.50
25025041.0040.007.5023.0032.5042.50
28028047.0043.007.5026.5035.0042.50
30030047.0045.007.5026.5035.0042.50
32032051.0048.007.5027.5035.0047.50
33033051.0048.007.5027.5035.0047.50
35035055.0050.007.5028.5035.0047.50
38038058.0056.009.0030.0036.0046.00
40040060.0058.009.0030.0036.0046.00
43043063.3061.009.0030.0036.0051.00
45045065.0063.009.0030.0036.0051.00
48048069.0066.009.0030.5036.0051.00
50050071.0070.009.5030.5038.0050.50
53053076.0073.0011.0033.0036.5059.00
55055078.0075.0011.0035.0036.5059.00
58058082.0078.0011.0037.0041.5059.00
60060085.0080.0011.0038.0041.5059.00
65065090.0085.0011.0040.0041.5069.00
68068094.0090.0011.3040.0048.7068.70
70070097.0092.0011.3040.0048.7068.70
750750102.0097.0011.3040.0048.0068.70
800800108.00105.0012.0040.0048.0078.00
850850117.00110.0014.0041.0046.0076.00
900900126.00115.0014.0045.0051.0076.00
950950131.00120.0014.0046.0051.0076.00
1001000136.00125.0014.0047.0051.0076.00
Compatible Replacement Seals
  • Burgmann MG1
  • Vulcan 19
  • DIMER TCP.1-60
  • AESSEAL B02
  • AESSEAL B09U
  • Anga A1
  • Flowserve 190
  • Hermetyka M212.N2
  • Latty T700
  • LIDERING LRB17
  • Roten L3
  • Sterling SMG1
  • US SEAL VGMC-1
Recommended Applications
  • Clean water systems
  • Sewage water treatment
  • Oil and other moderately corrosive fluids
