Specifications
Brand Name :
YUE MI
Model Number :
M37G-G6
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
5-8 word days
Packaging Details :
Details Carton
Seal Type :
M37G seal
Extra Service :
OEM is welcome
Application :
Water pumps, Centrifugal pumps, Submersible pumps
Esco Pump Seal :
Spring Seal with Sleeve and Shims
Stationary Ring :
Ceramic/SiC/TC
Service :
OEM service
Description
Mechanical Shaft Seal M37/M37g Single Spring Seal For Water Pump
High-quality mechanical seals featuring multiple springs available in various elastomers for handling industrial fluids. Unified construction design with snap ring assembly allows for easy on-site repair and maintenance.
Product Specifications
Replacement For:
M37/M37G seal for industrial pumps
Seat Type:
Standard: G9 | Alternative: G6, G4, G13
Operational Conditions
Parameter Specification
Temperature Range -20°C to +180°C
Maximum Pressure ≤ 1.0 MPa
Maximum Speed ≤ 15 m/s
Material Composition
  • Stationary Ring: Ceramic, Silicon Carbide, TC, Carbon
  • Rotary Ring: Carbon, Silicon Carbide, Steel
  • Secondary Seal: NBR, EPDM, Viton
  • Spring & Metal Parts: Steel
Applications
Clean water, sewage water, oil and other moderately corrosive fluids
Mechanical Shaft Seal M37/ M37g Single Spring Seal For Water Pump

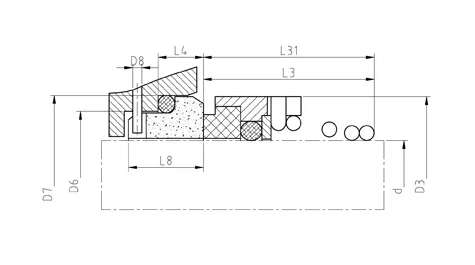

M37G Dimensions (mm)
Size d D3 D6 D7 D8 L3 L31 L4 L8
1010.020.017.021.03.016.9-10.017.5
1212.022.019.023.03.017.4-10.017.5
1414.024.021.025.03.017.416.510.017.5
1616.026.023.027.03.019.516.510.017.5
1818.031.027.033.03.020.518.011.519.5
2020.034.029.035.03.022.019.011.519.5
2222.036.031.037.03.023.520.511.519.5
2424.038.033.039.03.025.022.011.519.5
2525.039.034.040.03.026.523.511.519.5
2828.042.037.043.03.026.524.511.519.5
3030.044.039.045.03.025.024.511.519.5
3232.046.042.048.03.028.528.011.519.5
3333.047.042.048.03.0--11.519.5
3535.049.044.050.03.028.528.011.519.5
3838.054.049.056.04.032.231.014.022.0
4040.056.051.058.04.034.734.014.022.0
4343.059.054.061.04.0--14.022.0
4545.061.056.063.04.039.236.514.022.0
4848.064.059.066.04.044.742.014.022.0
5050.066.062.070.04.045.743.015.023.0
5353.069.065.073.04.0--15.023.0
5555.071.067.075.04.049.047.015.023.0
5858.078.070.078.04.052.050.015.023.0
6060.079.072.080.04.053.051.015.023.0
6363.083.075.083.04.0--15.023.0
6565.085.077.085.04.054.352.015.023.0
6868.088.081.090.04.055.352.718.026.0
7070.090.083.092.04.056.354.018.026.0
7575.098.088.097.04.056.354.018.026.0
8080.0103.095.0105.04.059.358.018.226.2
