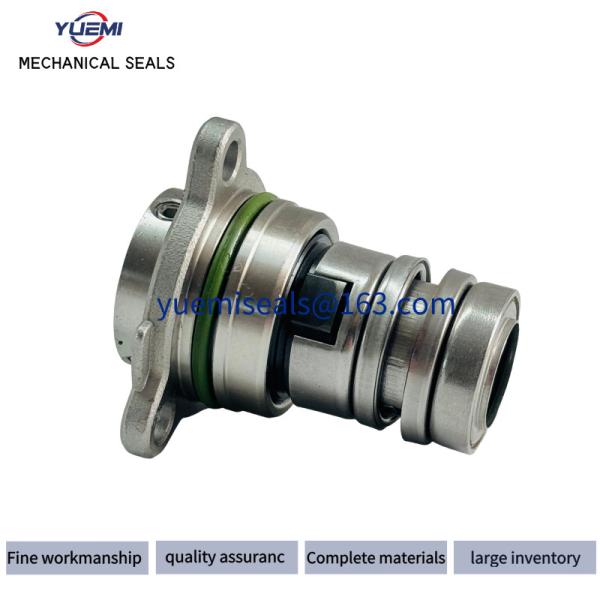

CDLC-12 16 22 (3R) CNP multistage centrifugal pump Hqqv Cartridge Mechanical Seals for Cdl/Cdlf Cnp Pumps
CDLC-12 16 22 (3R) CNP multistage centrifugal pump Hqqv Cartridge Mechanical Seals for Cdl/Cdlf Cnp Pumps
CDLC-12 16 22 (3R) CNP multistage centrifugal pump Hqqv Cartridge Mechanical Seals for Cdl/Cdlf Cnp Pumps
CDLC-12 16 22 (3R) CNP multistage centrifugal pump Hqqv Cartridge Mechanical Seals for Cdl/Cdlf Cnp Pumps
CDLC-12 16 22 (3R) CNP multistage centrifugal pump Hqqv Cartridge Mechanical Seals for Cdl/Cdlf Cnp Pumps
CDLC-12 16 22 (3R) CNP multistage centrifugal pump Hqqv Cartridge Mechanical Seals for Cdl/Cdlf Cnp Pumps
CDLC-12 16 22 (3R) CNP multistage centrifugal pump Hqqv Cartridge Mechanical Seals for Cdl/Cdlf Cnp Pumps
CDLC-12 16 22 (3R) CNP multistage centrifugal pump Hqqv Cartridge Mechanical Seals for Cdl/Cdlf Cnp Pumps
Specifications
MOQ :
10/pcs
Price :
Consultation
Payment Terms :
T/T,D/P,D/A,L/C
Supply Ability :
100/pcs/month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Productname :
Water Pump Mechanical Seal
Hs Code :
848420090
Specification :
For CNP Pumps mechanical seal
Transport Package :
YUEMI Standard or Customised
Model :
CDLC
Spring Type :
Single or Multiple Springs
Export Area :
All over the world
Secondary Seal :
NBR/EPDM/Viton
Description
Product Description
Model NO.
YM CDLC
Temperature
-20 - 180℃
Performance
Wear Resistance
Standard
Standard
Factory-Direct/Manufacturer
Yes
Certificate
ISO9001
Packing
Carton Box
HS Code
84842000
Place of origin
GUANGZHOU,China
Application
clean water, sewage water , submerisble and chemical pumps
CDLC-12(3R) Mechanical Seals for CDL/CDLF1/2/3/4 (Shaft Size 12mm) ;
Used on CNP/SPERONI Pumps;
Detail Size as below (The same size as original CNP type):
Length-54mm
Outer size of O-ring-29.15mm
Outer size of Rotary-28.00mm
Outer size of End-20.00mm
Hole distance-30.50mm

CDLC-16 (3R) Mechanical Seals for CDL/CDLF Pumps (Shaft Size 16mm) ;
Used on CNP/SPERONI Pumps;
Detail Size as below (The same size as original CNP type):
Free Length-57.7mm
Outer size of O-ring-34.2m
Outer size of Rotary-26.45m
Outer size of End-25.74m
Hole distance-40m


YUEMI cartridge seals for GF pumps, Pentair pumps, Stairs Pumps etc. brands have three structures: cartridge seals with Hexagon retainer, big round retainer and three-hole retainer.

It is equivalent to GF Type H seal, HQQE and SQQE.

It is suitable for GF CR1, 3, 5, 10, 15, 20, 32, 45, 64, 90 and CRN1, 3, 5, 10, 15, 20, 32, 45, 64, 90 pumps.



Flange Mechanical Seals for CR32/CR45/CR64 pumps (HQQV/HQQE/CR/CRI22)
Temperature: -30ºC to +220ºC
Pressure: ≤2.5MPa
Speed: ≤25m/s		 Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, FKM, PTFE
Spring and Metal Parts: Steel
Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc.It is ideal with high or pulsing counterpressure or with viscous or sticky fluids.

GLF-12, CR-12 Mechanical Seals for CR1/CR3/CR5 Vertical Multi-stage Pumps|Shaft 12mm Cartridge Seals (HQQV/HQQE/CR/CRI/CRN12),

CR-12 for 96455082, 96455086, 96455083, 96455087 and 96455085, Pump models CR, CR8, CRI, CRN1, CRN3, CRN5, CRNE1, CRNE3-23HS;

GLF-16, CR-16 Mechanical Seals for CR10/CR15/CR20 Multi-stage Pumps Shaft Size 16mm Cartridge Seals (HQQV/HQQE/CR/CRI/CRN16),

CR-16 for 96511836, 96511840, 96511837, 96511845 and 96511841, pump models CR, CRI, CRN10, CRN15 and CRN20;

GLF-22, CR-22 Mechanical Seals for CR32/CR45/CR64/CR90 Multi-stage Pumps Shaft 22mm Cartridge Seals (HQQV/HQQE/CR/CRI/CRN22),

CR-22 for 96416584, 96433365, 96525459, 96525490, 96436728, pump models CR, CRN32, CRN45, CRN64 and CRN90.
