Premium Type 1 Mechanical Pump Seal for Industrial Use Mission Pump Seal
Premium Type 1 Mechanical Pump Seal for Industrial Use Mission Pump Seal
Premium Type 1 Mechanical Pump Seal for Industrial Use Mission Pump Seal
Premium Type 1 Mechanical Pump Seal for Industrial Use Mission Pump Seal
Premium Type 1 Mechanical Pump Seal for Industrial Use Mission Pump Seal
Premium Type 1 Mechanical Pump Seal for Industrial Use Mission Pump Seal
Specifications
Brand Name :
YUE MI
Model Number :
T1
Certification :
ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
10/PCS
Price :
consult
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/Set/Month
Delivery Time :
20 work days
Packaging Details :
Details Carton
Hs Code :
848420090
Model No :
T1-
Keywords :
MISSION pump seal
Materail :
VIT TC TC
Product :
OEM pump seal
Sealing Face :
TC TC
Size Of Product :
2-1/2
Description

Premium Type 1 Mechanical Pump Seal for Industrial Use Mission Pump Seal

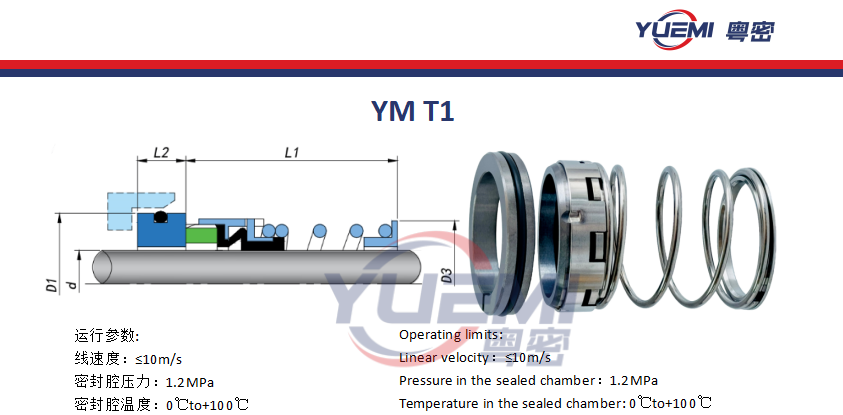

d(mm) d D1 D3 L1 L2
2.500 63.50 87.73 80.95 63.50 14.27
3.500 88.90 111.13 111.00 79.38 19.84

Type1 Mechanical Seal Key Parameters

Parameter Category Specifications
Model Type1 (Single-End Non-Balanced, Elastomer Bellows Design)
Shaft Diameter Range Customizable for non-standard sizes
Pressure Limit ≤1.2 MPa (Standard)
Temperature Range -20°C to 200°C (Depends on elastomer: NBR/FKM/EPDM)
Face Materials Silicon Carbide (SiC) / Tungsten Carbide (WC) / Alumina Ceramic (AlO)
Secondary Seals Nitrile (NBR) / Fluorocarbon (FKM) / Ethylene Propylene (EPDM)
Compatible Media Water, Oil, Mildly Corrosive Liquids (Requires flushing for abrasive media)
Key Design Features - Elastomer bellows for axial flexibility
- Spring-driven, bidirectional rotation support
Installation Requirements - Shaft radial runout ≤0.04 mm
- Clean sealing chamber
- Avoid dry running

Pump Compatibility Chart

Pump Type Compatible Type1 Models Application Scenarios
Centrifugal Pumps Type1-25, Type1-30, Type1-35 Water supply, chemical transfer
Submersible Pumps Type1-38, Type1-50 Wastewater treatment, marine applications
Chemical Process Pumps Type1-1.125", Type1-1.5" (Custom sizes) Acid/alkali handling, reactors
API-Compliant Pumps Type1-2100 Series (e.g., 2100-25, 2100-40) Oil refineries, high-pressure systems
Boiler Feed Pumps Type1-65, Type1-70 Power plants, steam systems

Product Description

Parameter Value/Description Unit/Note
Model YM-TYPE1 -
Seal Type Single Mechanical Seal Spring-loaded unbalanced design
Face Materials - Primary: Carbon Steel (Hardened)
- Secondary: Graphite		 Hardness: ≥200 HB (Primary)
Housing Material Cast Iron Cost-effective for non-corrosive media
Pressure Range 0 - 0.6 MPa
Suitable for small to medium shafts
Maximum Rotational Speed 2800 RPM
Leakage Rate ≤8.0 ml/h
Media Compatibility Water, Light Oils, Non-Corrosive Liquids Not for abrasive or high-temperature applications
Installation Type Split-Style Tool-free field installation
Basic industrial sealing requirements
