Danfoss OMT400 151B3004 Low-Speed High-Torque Hydraulic Motor For Industrial And Mobile Applications
Danfoss OMT400 151B3004 Low-Speed High-Torque Hydraulic Motor For Industrial And Mobile Applications
Danfoss OMT400 151B3004 Low-Speed High-Torque Hydraulic Motor For Industrial And Mobile Applications
Danfoss OMT400 151B3004 Low-Speed High-Torque Hydraulic Motor For Industrial And Mobile Applications
Danfoss OMT400 151B3004 Low-Speed High-Torque Hydraulic Motor For Industrial And Mobile Applications
Danfoss OMT400 151B3004 Low-Speed High-Torque Hydraulic Motor For Industrial And Mobile Applications
Specifications
Brand Name :
Danfoss
Model Number :
OMT400 151B3004
Certification :
cc
Place of Origin :
Germany
MOQ :
1pc
Price :
RMB/100-10000/PC
Payment Terms :
T/T
Supply Ability :
10PCS/days
Delivery Time :
3 work days
Packaging Details :
wooden case/carton
Fuel :
Hydraulic Oil
Shipping Date :
Within 3 Days After Payment
Operating Temperature :
-20°C to 80°C
Local Service Location :
None
Standard :
International Standard
Warranty :
1 Year, one year
After Warranty Service :
Online support
Mounting Type :
Flange
Description

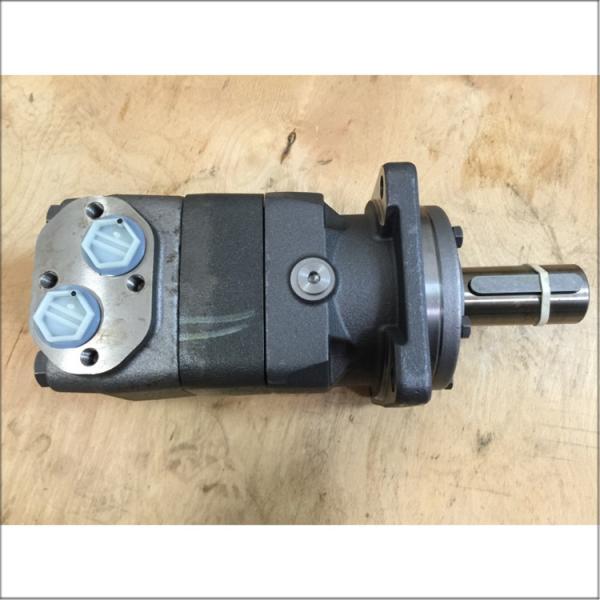

Danfoss OMT400 151B3004
The Danfoss OMT400 151B3004 is a low-speed, high-torque orbital hydraulic motor designed for demanding industrial and mobile hydraulic applications. Below are its key specifications and features:

Technical Specifications

  • Displacement: 410.9 cm³/rev
  • Maximum Continuous Speed: 305 rpm
  • Maximum Intermittent Speed: 365 rpm
  • Maximum Continuous Torque: 1080 Nm
  • Maximum Intermittent Torque: 1260 Nm
  • Maximum Continuous Pressure: 200 bar
  • Maximum Continuous Flow: 125 l/min
  • Shaft Type: Cylindrical with parallel key A12 x 8 x 70 mm (DIN 6885)
  • Port Size: G 3/4 BSP
  • Drain Port: G 1/4 BSP
  • Weight: 23.0 kg
  • Dimensions:
    • Length: 259 mm
    • Width: 160 mm
    • Height: 170 mm

Features

  • High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications.
  • Smooth Operation: Ensures smooth operation at low speeds.
  • Robust Design: Built to withstand rough operating conditions, such as high pressure and frequent reversals.
  • Tapered Roller Bearings: The output shaft is equipped with tapered roller bearings, making the motor suitable for absorbing static and dynamic radial loads.
  • High Efficiency: Hydraulic and mechanical losses are minimized, resulting in high efficiency even at high pressures.
  • Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.

Applications

The OMT400 151B3004 is widely used in various industrial and mobile hydraulic applications, including:
  • Construction Equipment: Suitable for heavy-duty construction machinery.
  • Agricultural Machinery: For applications requiring high torque and reliability.
  • Material Handling: Ideal for forklifts and other lifting equipment.
  • Forestry Equipment: Used in forestry machinery for heavy-duty operations.
  • Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.
For more detailed information or specific inquiries, please refer to the technical data provided by Danfoss or contact the manufacturer directly.

Attribute Value
Process Connection M20X1.5, G1/4, 1/4NPT
Pressure Low Pressure
Pressure sensing element Diaphragm
Media compatibility Air, gas, water, oil
Type Mechanical
Condition 100% NEW
Comprehensive Accuracy ±0.5%FS
Package Box
Danfoss OMT400 151B3004 Low-Speed High-Torque Hydraulic Motor For Industrial And Mobile Applications
Frequently Asked Questions
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convenience, we accept small orders.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms?
A3: By T/T, LC AT SIGHT, 100% full payment.
Q4: How long is your production lead time?
A4: It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please call us or tell us in your mail, so that we could regard your inquiry priority.
