Danfoss OMP50 151-0610 Compact And High-Performance Hydraulic Motor For Medium-Pressure Systems
Danfoss OMP50 151-0610 Compact And High-Performance Hydraulic Motor For Medium-Pressure Systems
Danfoss OMP50 151-0610 Compact And High-Performance Hydraulic Motor For Medium-Pressure Systems
Danfoss OMP50 151-0610 Compact And High-Performance Hydraulic Motor For Medium-Pressure Systems
Danfoss OMP50 151-0610 Compact And High-Performance Hydraulic Motor For Medium-Pressure Systems
Danfoss OMP50 151-0610 Compact And High-Performance Hydraulic Motor For Medium-Pressure Systems
Danfoss OMP50 151-0610 Compact And High-Performance Hydraulic Motor For Medium-Pressure Systems
Danfoss OMP50 151-0610 Compact And High-Performance Hydraulic Motor For Medium-Pressure Systems
Specifications
Brand Name :
Danfoss
Model Number :
OMP50 151-0610
Certification :
cc
Place of Origin :
Germany
MOQ :
1pc
Price :
RMB/100-10000/PC
Payment Terms :
T/T
Supply Ability :
10PCS/days
Delivery Time :
3 work days
Packaging Details :
wooden case/carton
Process Connection :
M20X1.5, G1/4, 1/4NPT
Pressure :
Low Pressure
Pressure sensing element :
Diaphragm
Media compatibility :
Air, gas, water, oil
Type :
Mechanical
Condition :
100% NEW
Comprehensive Accuracy :
±0.5%FS
Package :
Box
Description

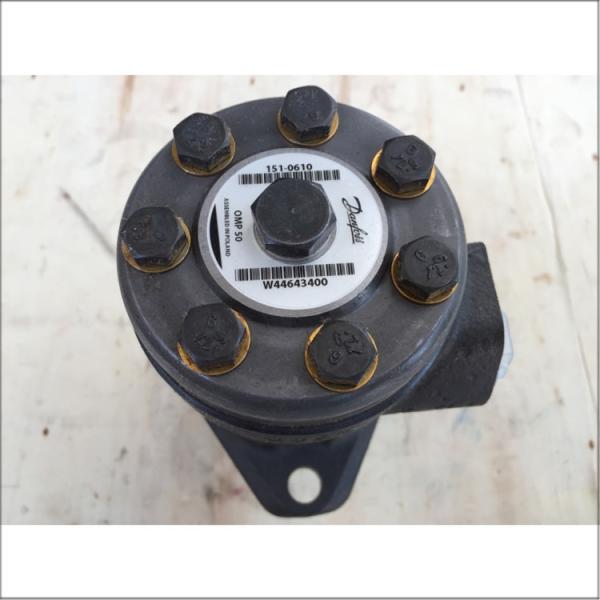

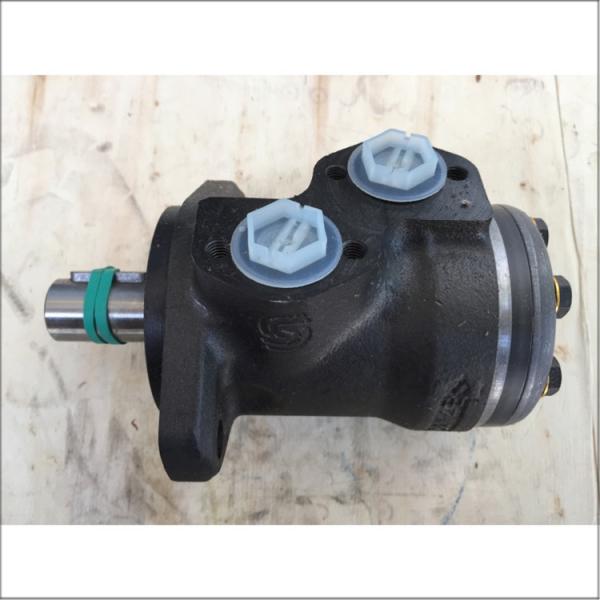

Danfoss OMP50 151-0610
The Danfoss OMP50 151-0610 is a compact, light-duty orbital hydraulic motor designed for medium-pressure applications. It features a gerotor gear set design, providing relatively high torque at low speeds. Below are its key specifications and features:

Technical Specifications

  • Product Number: 151-0610
  • Series: OMP
  • Displacement: 51.7 cm³/rev (3.15 in³/rev)
  • Mounting Flange: 2 Bolt SAE A (Ø82.55 mm pilot dia.)
  • Shaft: Ø25 mm parallel key (A8 x 7 x 32 DIN 6885)
  • Ports: G 1/2 Main Ports (BSPP – ISO 228/1)
  • Drain Port: G 1/4 (BSPP – ISO 228/1)
  • Max Continuous Speed: 1200 rpm
  • Max Continuous Torque: 77 Nm (680 lb-in)
  • Max Continuous Pressure Drop: 125 bar (1810 psi)
  • Max Intermittent Pressure Drop: 150 bar (2180 psi)
  • Max Peak Pressure Drop: 175 bar (2540 psi)
  • Rotation: Standard

Features

  • Robust Construction: The motor is built with shaft seals capable of handling high back pressure without requiring a drain line (in most applications), making it suitable for various mobile and industrial hydraulic systems.
  • Compact Design: Ideal for applications where space is limited and moderate power is required.
  • Efficiency and Durability: Offers a balance of efficiency and durability, making it suitable for long-term use in demanding environments.

Applications

The OMP50 151-0610 is widely used in various industrial and mobile hydraulic systems, including:
  • Agricultural Machinery: For applications requiring compact and efficient power transmission.
  • Conveyors: Suitable for conveying systems where space constraints are a concern.
  • Machine Tools: Provides reliable power for various machine tools.
  • Construction Equipment: Ideal for construction machinery where high torque at low speeds is required.

Note

This product has been discontinued by Danfoss, and the recommended replacement is part number 11185771.
Attribute Value
Process Connection M20X1.5, G1/4, 1/4NPT
Pressure Low Pressure
Pressure sensing element Diaphragm
Media compatibility Air, gas, water, oil
Type Mechanical
Condition 100% NEW
Comprehensive Accuracy ±0.5%FS
Package Box
Danfoss OMP50 151-0610 Compact And High-Performance Hydraulic Motor For Medium-Pressure Systems
Frequently Asked Questions
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us. In order to get more orders and give our clients more convenience, we accept small orders.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms?
A3: By T/T, LC AT SIGHT, 100% full payment.
Q4: How long is your production lead time?
A4: It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation, please call us or tell us in your mail, so that we could regard your inquiry priority.
