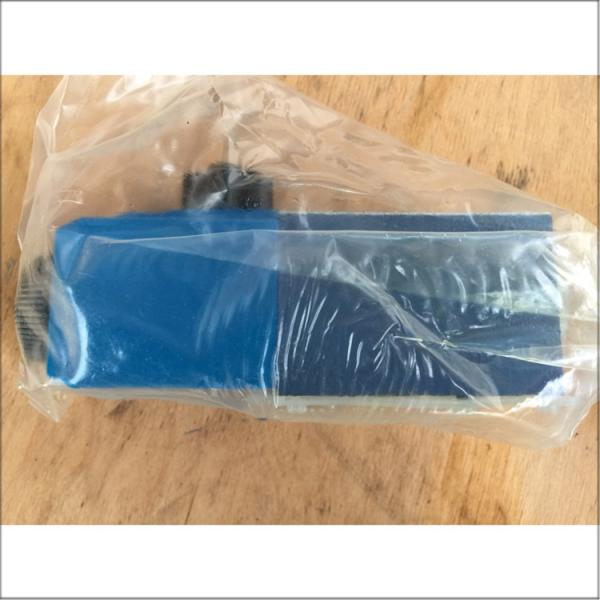

Vickers Proportional Valve DG4V-3-OB-M-U-H7-60 Flow Rate Of 30 L/Min Cast Iron High Reliability High Pressures

Description:

This model of Vickers proportional valve is part of the Series 60, a single stage solenoid operated directional control valve. It utilizes a wet armature solenoid and a threaded mandrel design that permits coil replacement without disassembly of the valve and without risk of oil leakage or contamination of system fluids. The design carries on the traditional use of earlier Vickers valves while meeting the expanded needs of the industry.

Application Areas:

Industrial field: can be used in a variety of industrial equipment that requires precise control of the flow and direction of the hydraulic system, such as injection molding machines, die-casting machines, etc., can achieve precise control of the machine, improve production efficiency and product quality.
Mobile equipment field: in the engineering machinery, agricultural machinery and other mobile equipment, the valve can be used to control the direction and speed of the movement of hydraulic cylinders or hydraulic motors, such as excavators, loaders, combine harvesters and so on.
Recreational equipment field: in the entertainment industry in the amusement facilities, such as roller coasters, Ferris wheels, etc., the valve can be used to control the movement of the equipment to ensure the safe operation of the equipment.
Material handling equipment field: in the forklift, crane and other material handling equipment, the valve can be used to control the hydraulic system, to realize the handling and loading and unloading of goods.

Advantages:

Efficient control: able to control greater hydraulic power without increasing the power consumption of the solenoid. Its special slide valve design and optimized valve body structure ensure precise control even at high flow rates and high pressures.
Cost and space savings: has a higher power/weight and size ratio, which reduces installation costs and required space. When used with Vickers SystemStak™ valves and baseplates, a compact and cost-effective system design is possible.
Installation Flexibility: A wide range of solenoid connector and position options are available to meet the needs of different installation environments. Its valve mounting surface conforms to ISO 4401, size 03, and is compatible with relevant international standards for easy integration with other hydraulic components.
Multi-fluid compatibility: The ability to use a wide range of fluids without the need to change seals allows the valve to operate stably in hydraulic systems with different operating media, increasing its range of applicability.
High Reliability: Having been tested for over 20 million cycles, the valve has high fatigue life and durability, which ensures stable performance over long periods of time and under harsh operating conditions, reducing equipment downtime and increasing productivity.
Quick change solenoid coils: Solenoid coils can be replaced quickly and easily without removing the valve from its mounting position, which greatly reduces maintenance time and costs and improves equipment maintainability.
Minimum pressure loss: The optimized design of the valve body, slide valve and slide valve stroke ensures a pressure loss of only 2.5 bar at a flow rate of 30 l/min, which improves the overall efficiency of the hydraulic system and reduces energy consumption.
High-precision control: The valve is capable of precise proportional control. By adjusting the size of the input signal, the speed and position of the hydraulic cylinder or hydraulic motor can be precisely controlled, which meets the requirements of different application scenarios for control accuracy.

FAQ:

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?

A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?

A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?

A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
