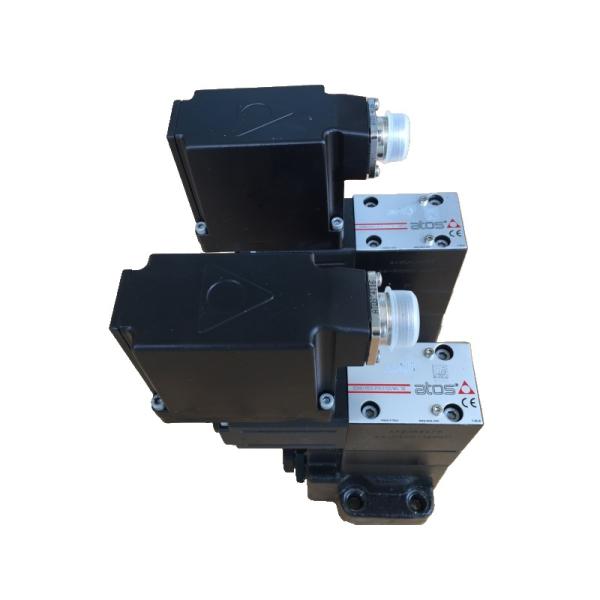

Atos Proportional Valve AGRCZO-AE-10-210-I-WG-10 Precise Control Fast Response Highly Interchangeable Powerful Electronic

Description:

AGRCZO-AE-10-210-I-WG-10 is a proportional pressure reducing valve manufactured by Atos Italy. It is a two-stage, normally closed type of valve that conforms to ISO 5781 and has a size of 10. The valve has a nominal diameter of 10 and is made of cast iron. It has a maximum set pressure of 210 bar and is suitable for media such as oil temperature 50°C and ISO VG46 mineral oil. The valve regulates the pressure by means of a proportional electronic reference signal and is used in conjunction with an electronic actuator for precise pressure control.

Areas of application:

AGRCZO-AE-10-210-I-WG-10 is mainly used in the hydraulic industry. It can be used in a variety of hydraulic systems that require precise pressure control, such as injection molding machines, die casting machines, and construction machinery. In these equipments, this proportional pressure reducing valve can accurately regulate the pressure in the hydraulic system according to different working requirements, so as to realize the precise control of the equipment movements, improve the productivity and product quality, and ensure the stable operation of the equipment.

Advantages:

Precise control: The AGRCZO-AE-10-210-I-WG-10 is capable of accurately regulating pressure according to a proportional electronic reference signal, and when used in conjunction with an electronic actuator, it can realize high-precision pressure control. This precise control capability is critical for hydraulic systems that require tight pressure control, improving system stability and reliability.
Fast Response: The valve's short dynamic response time allows it to react quickly to changes in the input signal. This means that when pressure adjustments are required in a hydraulic system, the valve is able to make adjustments quickly, thereby reducing system lag time and improving system responsiveness and control accuracy.
HIGH RELIABILITY: AGRCZO-AE-10-210-I-WG-10 adopts advanced design and manufacturing process to provide high reliability and durability. Its coil is fully encapsulated in plastic with insulation class H, which can effectively prevent the intrusion of dust and moisture and extend the service life of the valve. In addition, the valve's electronic actuator also has good stability and anti-interference ability, which can work stably in complex industrial environments.
Multiple Interface Options: The valve provides multiple interface options, including analog (AE) and digital (AES) interfaces. This allows users to choose the appropriate interface according to different application requirements and control systems, facilitating connection and communication with a variety of control devices. For example, for systems requiring remote monitoring and control, an AES model with a digital interface can be selected to realize remote operation and monitoring of the valve through a fieldbus or network.
Easy to install and maintain: The AGRCZO-AE-10-210-I-WG-10 is relatively simple to install and maintain. Its mounting surface conforms to ISO 5781 and is secured using four M10x45 grade 12.9 countersunk head bolts tightened to a torque of 70 Nm. In addition, the valve's electronic mains connectors are fully interchangeable for the AE and AES actuation versions, and standard 7-pin connectors are used for the power supply, analog input references, and error system. This standardization makes installation and wiring quick and easy, as well as subsequent maintenance and replacement.
Highly interchangeable: The valves of the AGRCZO-AE-10-210-I-WG-10 are interchangeable with each other, which greatly simplifies maintenance. When a valve fails, it can be quickly replaced with another valve of the same model without the need for complex commissioning and calibration, thus reducing equipment downtime and maintenance costs.
Multiple hydraulic options: The valves are also available with hydraulic options such as with mechanical pressure limiter (P option) and with check valve, reverse free flow (R option). These options can be selected for different applications to meet the specific requirements of particular working conditions. For example, where system pressure needs to be limited, a valve with a mechanical pressure limiter can be selected to ensure safe operation of the system.
Powerful electronic amplifier: The electronic amplifier of AGRCZO-AE-10-210-I-WG-10 has excellent performance. Not only does it provide speed regulation to ensure interchangeability between valves, but it also allows parameterization and optimization through software tools. For example, the E-SVM software supplied by Atos can be used to set and optimize the functional parameters and configuration of the amplifier and is available in PSI, CANopen and PROFIBUS DP versions, depending on the communication interface. This allows the user to flexibly adjust the control characteristics of the valve to the specific system requirements in order to achieve optimal control.

FAQ:

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?

A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?

A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?

A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
