Description:

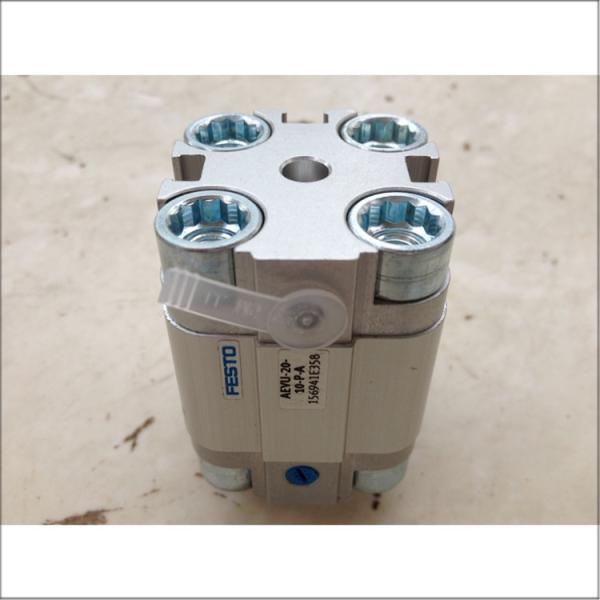

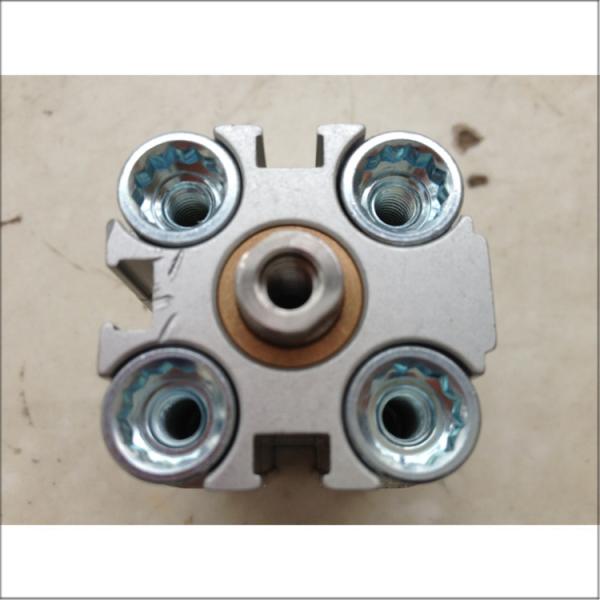

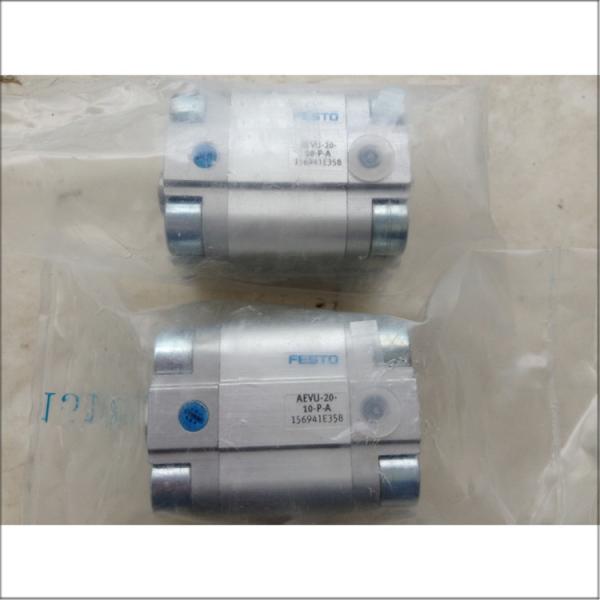

The Festo Cylinder AEVU-20-10-P-A is a compact cylinder belonging to Festo's classic cylinder series. Its main parameters are as follows: Stroke: 10 mm. Piston diameter: 20 mm. Operating mode: Single-acting. Cushioning: Both ends are equipped with elastic cushioning rings/plates. Mounting options: Multiple mounting methods are available, including through-hole mounting, etc. Pneumatic connection: M5 threaded interface. Material: Cylinder barrel made of forged aluminum alloy, piston rod made of high-alloy stainless steel, dynamic sealing materials: NBR and TPE-U (PU). Operating pressure range: 0.1 MPa to 1 MPa (1 bar to 10 bar, 14.5 psi to 145 psi). Working medium: Compressed air compliant with ISO 8573-1:2010 [7:4:4] standard. Ambient temperature range: -20°C to 80°C. Theoretical thrust: At 0.6 MPa (6 bar, 87 psi) pressure, the theoretical thrust for the forward stroke is 171 Newtons.

Application areas:

The Festo Cylinder AEVU-20-10-P-A is widely used in various fields due to its compact size, flexible installation options, and reliable performance:
Automotive manufacturing: Used in automated assembly, part handling, and positioning on automotive production lines. For example, in processes such as automotive body welding and part installation, the cylinder enables fast and precise motion control, enhancing production efficiency and product quality.
Production Packaging: In packaging equipment, this cylinder can be used to drive components such as the pusher rod and gripper of a packaging machine, completing operations such as item packaging, sealing, and handling. Its compact structure and flexible installation options allow it to adapt to the spatial constraints of various packaging equipment.
Biopharmaceuticals: In automated production lines in the biopharmaceutical industry, the AEVU-20-10-P-A can be used to drive various mechanical components, such as syringe push rods and bottle conveyors. Its corrosion resistance and high reliability meet the stringent requirements of the biopharmaceutical industry for equipment.
Electronics Manufacturing: In the production of electronic products, this cylinder can be used in equipment for component insertion, welding, and testing, achieving high-precision motion control.
Food and Beverage Industry: On food and beverage production lines, it can be used to drive components of filling machines, sealing machines, conveyor belts, and other equipment, completing tasks such as product filling, sealing, and handling.
Logistics Automation: In logistics warehouses and distribution centers, the AEVU-20-10-P-A can be used to drive automated sorting equipment, shelf handling equipment, and other devices to improve logistics efficiency.

Advantages:

Compact Design: Small in size and structurally compact, it is suitable for installation in equipment and machinery with limited space.
High reliability: Made with high-quality materials and advanced manufacturing processes, such as high-alloy stainless steel piston rods and forged aluminum alloy cylinder barrels, ensuring the cylinder's durability and reliability. Additionally, its elastic buffer ring/plate design effectively reduces impact, extending the cylinder's service life.
Flexible installation: Offers multiple installation methods, including through-hole installation, to meet the installation requirements of various equipment and application scenarios.
Precise control: Enables precise motion control, suitable for applications requiring high-precision positioning.
Corrosion resistance: Features medium corrosion resistance (CRC 2), capable of withstanding certain corrosive environments.
High adaptability: Wide operating pressure range (0.1 MPa to 1 MPa), suitable for various air supply conditions. Additionally, it has a broad operating temperature range (-20°C to 80°C), enabling stable operation in various environmental conditions.
Easy maintenance: Features a simple design for convenient maintenance, reducing equipment maintenance costs and downtime.
High compatibility: Compatible with other Festo pneumatic components and control systems, facilitating integration into existing automation systems.
