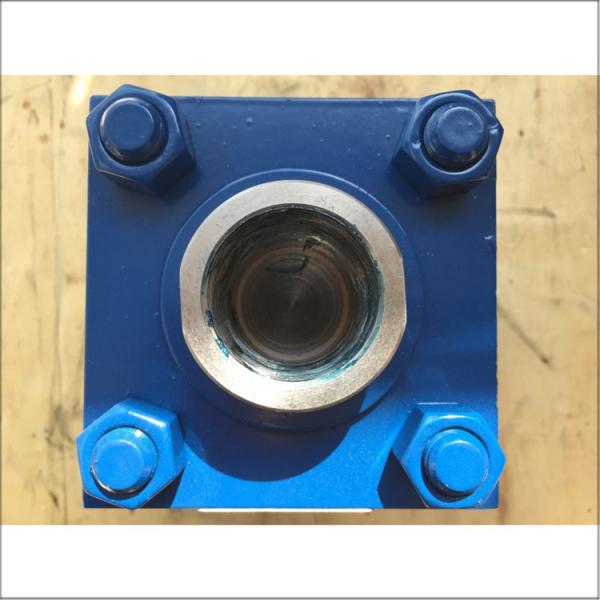

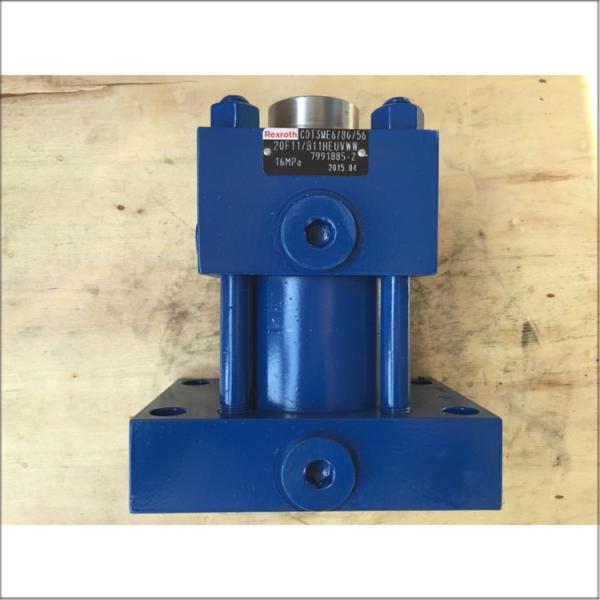

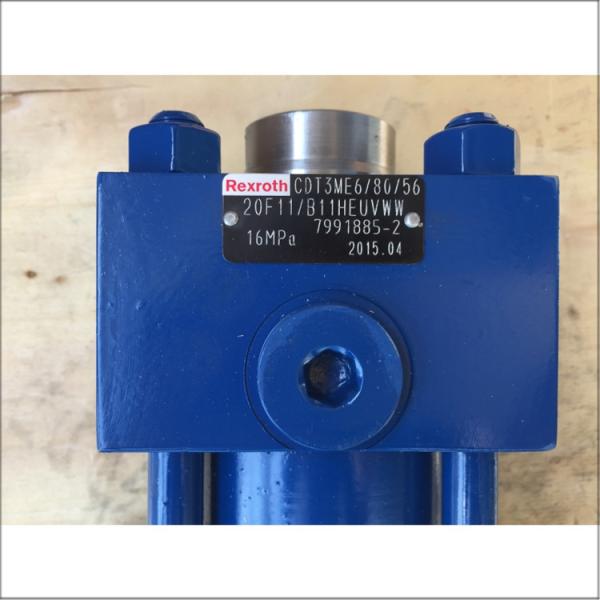

Product Overview

• Model: CDT3ME6 80 56 20F11 B11HEUVWW
• Type: Hydraulic cylinder
• Brand: Rexroth

Technical Specifications

• Action Type: CD single-rod hydraulic cylinder
• Style: T3
• Mounting Type: ME6, with a bottom flange
• Piston Diameter: 80 mm
• Piston Rod Diameter: 56 mm
• Stroke: 20 mm
• Design Principle: F, with fixed cylinder head and bottom flange
• Product Series: 11, with unchanged installation and connection dimensions from 10 to 19
• Port Type: B, in line with ISO 1179-1 (pipe thread ISO 228-1) EE = G 1 1/2, D4 = 65 (depth 0.5 mm)
• Position of Pipeline Joint on Head: 1, upper side viewed from the piston rod end
• Position of Pipeline Joint on Bottom: 1, upper side viewed from the piston rod end
• Piston Rod Type: H, with hard chrome plating
• Piston Rod End: E, with thread for hinge lug CGAS, KK = M120x4, A = 160, NV = 120
• End Cushioning: U, no option
• Sealing Type: V, standard sealing system (for mineral oils HL, HLP, and HFA)
• Option: W, no option
• Color Construction: W, standard primer
• Corrosion Class: R1, grade I
• Attributes: 240h salt spray test SST (DIN EN ISO 9227), 240h condensation test KKT (DIN EN ISO 6270-2), dry film thickness: 40 μm

Applications

• This hydraulic cylinder is suitable for various industrial applications, such as construction machinery, mining machinery, and material handling equipment, where heavy loads need to be lifted or moved.

Features

• High Strength and Durability: The cylinder is designed to withstand high pressure and heavy loads, ensuring reliable performance in demanding environments.
• Precise Control: The Rexroth brand is known for its precision engineering, allowing for accurate control of the cylinder's movement.
• Corrosion Resistance: With a corrosion class of R1 and a salt spray test of 240 hours, the cylinder is suitable for use in harsh environments where corrosion resistance is essential.
• Easy Installation and Maintenance: The standard installation and connection dimensions make it easy to integrate into existing systems, and the standard sealing system simplifies maintenance.
