Description:

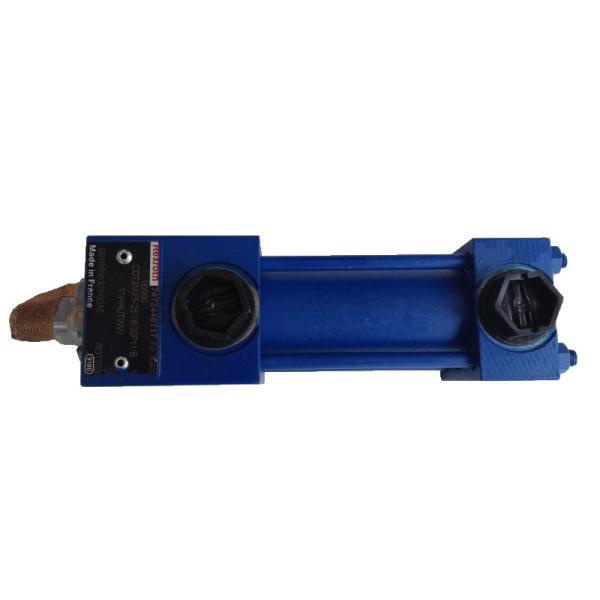

The Rexroth Oil Cylinder CDT3MX5/25/18/30F11/B11HHUTWW is a hydraulic cylinder product manufactured by Bosch Rexroth, a German company. Rexroth is a globally renowned manufacturer of hydraulic systems and components, with its hydraulic cylinders widely used across various industrial sectors. This model belongs to the CDT3 series, featuring a compact design and high-performance capabilities. CDT3: Series model, indicating that the hydraulic cylinder belongs to the CDT3 series. MX5: Indicates the cylinder body structure type; MX5 typically refers to a hydraulic cylinder with a specific mounting configuration. 25/18/30: Represent the cylinder bore diameter, piston rod diameter, and stroke length, respectively. The cylinder bore diameter is 25 mm, the piston rod diameter is 18 mm, and the stroke length is 30 mm. F11/B11: Indicates the installation method and connection type of the hydraulic cylinder. HHUTWW: Indicates other characteristics of the hydraulic cylinder, such as sealing type and cushioning devices.

Application Areas:

Machine Manufacturing: Used in machine tool feed systems, clamping devices, etc., providing precise motion control and stable clamping force.
Automated Production Lines: Used in automated assembly lines for material handling, component positioning, and other operations, ensuring efficient and precise production processes.
Robotics: Provides power for robot joints, enabling flexible motion control.
Automotive Manufacturing: Used in automotive production lines for body welding, component assembly, and other processes, ensuring efficient and consistent production.
Aerospace: Used in the manufacturing and assembly of aircraft components, requiring high-precision and high-reliability hydraulic systems.
Marine Industry: Used in ship deck machinery, steering gear, and other equipment, providing powerful power support.

Advantages:

High precision and reliability: Rexroth hydraulic cylinders utilize advanced manufacturing processes and high-quality materials to ensure high precision and reliability. The cylinder body undergoes precision machining, with high配合 precision between the piston and piston rod, enabling precise motion control. High-quality seals are used to effectively prevent hydraulic oil leakage and extend service life.
Compact design: The CDT3 series hydraulic cylinders feature a compact structural design, making them suitable for use in equipment with limited space. Despite their small size, their performance is no less impressive, providing sufficient power output.
Multiple mounting options: Multiple mounting options (such as F11/B11) are available, allowing users to select the appropriate mounting configuration based on actual requirements. This flexibility enables the hydraulic cylinders to adapt to various application scenarios and equipment structures.
Efficient power transmission: The internal structure of the hydraulic cylinder is optimized to reduce energy loss, efficiently converting hydraulic energy into mechanical energy. It is suitable for high-frequency reciprocating motion, capable of quickly responding to control signals to enhance production efficiency.
Durability and maintainability: Constructed with durable materials and advanced surface treatment technology, the hydraulic cylinder exhibits enhanced corrosion resistance and wear resistance. Maintenance is straightforward, with easy replacement of seals, thereby reducing maintenance costs.
High adaptability: The hydraulic cylinder can adapt to various working environments, including high-temperature, low-temperature, and high-humidity conditions.
Compatible with multiple hydraulic systems and compatible with hydraulic pumps and control valves from different brands.
High safety performance: The hydraulic cylinder is equipped with multiple safety devices, such as buffer devices and limit switches, effectively preventing accidents. It complies with international safety standards, providing safety assurance for operators and equipment.

FAQ:

Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
