Description:

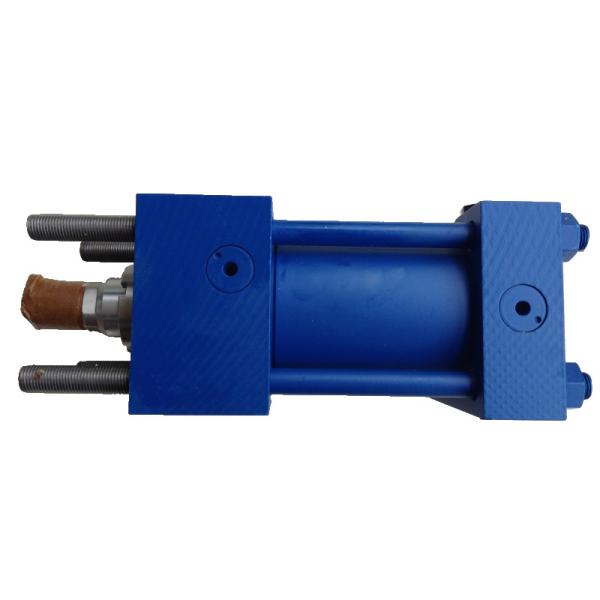

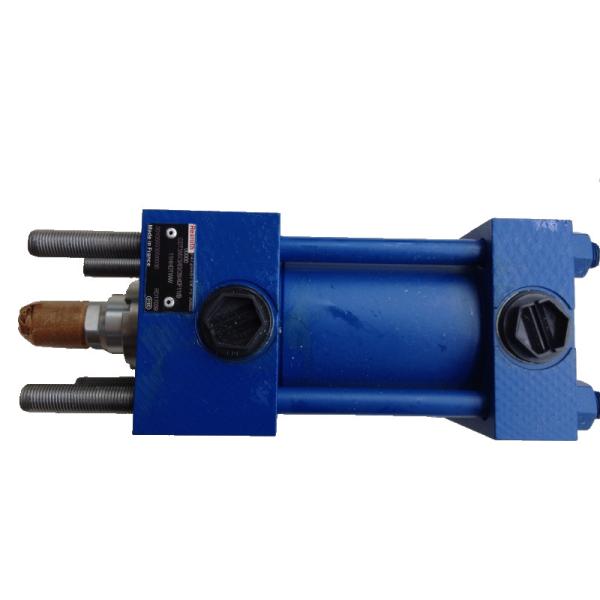

The Rexroth CDT3MX3/63/28/40F11/B11HHDTWW is a high-performance hydraulic cylinder for engineering applications manufactured by Bosch Rexroth, a German company. It belongs to the CDT3 series of hydraulic cylinders and features an axial foot-mounted installation configuration. Its primary technical specifications are as follows: the piston diameter is 63 mm, and the piston rod diameter is 28 mm. Stroke: 40 mm. Maximum operating pressure: 210 bar (static load). Installation conforms to ISO 6020-2, DIN 24554, and NF/ISO 6020-2 standards.

Application areas:

Machine manufacturing: Used for feed, clamping, and other operations in machine tools, providing precise force and position control.
Metal processing: Used in stamping, forging, and other equipment to achieve high-load stamping and forming operations.
Plastic molding: Used in injection molding machines, die-casting machines, and other equipment for mold opening/closing, material injection, and other operations.
Construction machinery: Used in the hydraulic systems of equipment such as cranes and excavators to achieve complex motion control.
Automated production lines: Used in automated assembly lines for material handling and robotic arm motion control.
Paper and printing industry: Used for tension control in paper processing equipment and printing in printing machines.
Automotive manufacturing: Used for high-precision positioning and clamping in welding and assembly processes on automotive production lines.

Advantages:

High reliability: Made from high-quality materials and advanced manufacturing processes, ensuring durability under high loads and frequent use. Designed to withstand extreme conditions, including high pressure and frequent load changes.
Integrated guide sleeves facilitate quick and easy maintenance, reducing downtime.
Precise control: Offers multiple mounting options and connection choices, allowing flexible configuration based on specific application requirements.
Precise design of piston diameter and stroke ensures stability and accuracy under different loads. Optional self-adjusting or adjustable end position buffers further enhance smoothness and precision of operation.
Easy maintenance: Features a patented safety exhaust valve for easy and safe exhausting. Pipe connection positions at the cylinder head and base can be freely selected for convenient installation and maintenance. Maintenance does not require disassembly of the entire hydraulic system, reducing maintenance costs and time.
High adaptability: Compatible with various hydraulic oils, including mineral oil, water-glycol, and phosphate ester. The permissible hydraulic oil viscosity range is broad, from 2.8 mm²/s to 380 mm²/s, accommodating different working environments. It can operate in various installation positions without restrictions.
High performance: It offers high load capacity and rapid response, meeting the high-precision requirements of industrial automation and mechanical manufacturing. The optimized internal structure design reduces energy loss and improves system efficiency.
