Description:

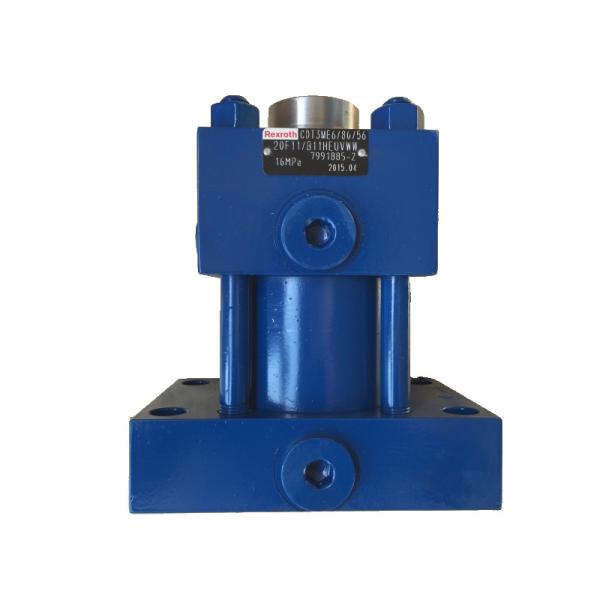

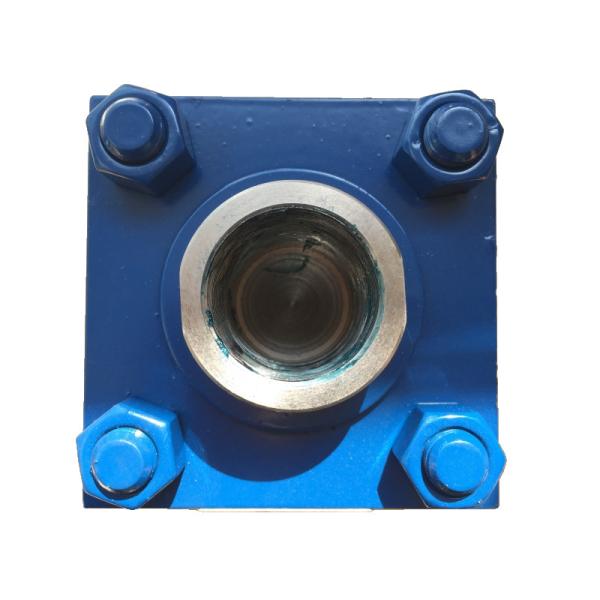

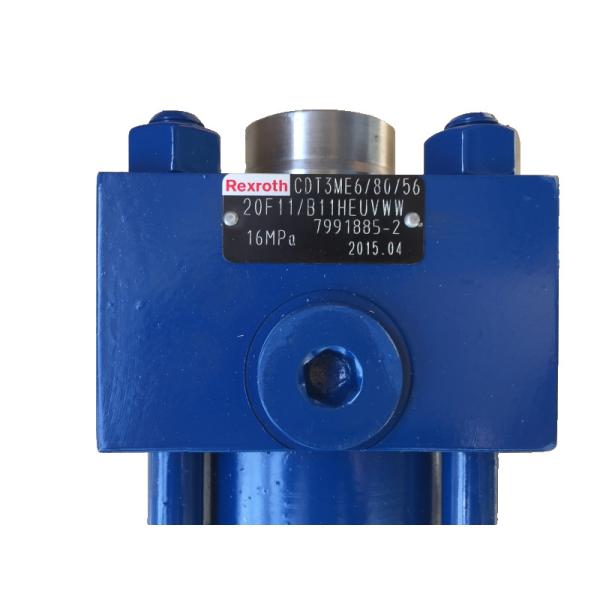

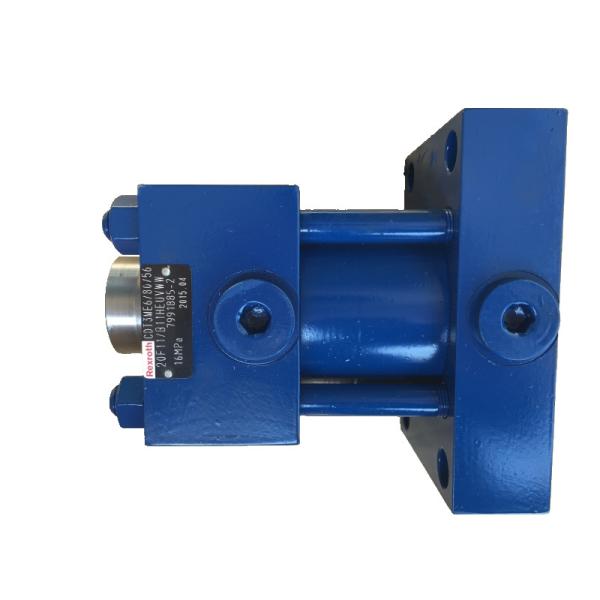

The Rexroth CDT3ME6/80/56/20F11/B11HEUVWW is a rod-type hydraulic cylinder manufactured by Bosch Rexroth in Germany. This hydraulic cylinder belongs to the CDT3 series, featuring high nominal pressure and multiple mounting options. Its mounting dimensions comply with ISO 6020-2, DIN 24554, and NF/ISO 6020-2 standards. The piston diameter is 80 mm, the piston rod diameter is 56 mm, and the stroke length is 20 mm. This hydraulic cylinder is designed to withstand a maximum working pressure of 210 bar under static load conditions.

Application Areas:

Industrial Manufacturing: Used in machine tools, injection molding machines, die-casting machines, and other equipment to achieve precise mechanical motion control. For example, in injection molding machines, hydraulic cylinders are used to control the opening and closing of molds and the injection process of materials, ensuring the stability of the production process and product quality.
Aerospace: In the aerospace industry, hydraulic cylinders are used in critical components such as aircraft landing gear retraction and wing adjustment. These applications require hydraulic cylinders to have high reliability and precise control performance to ensure flight safety.
Construction machinery: In construction machinery such as excavators and loaders, hydraulic cylinders are used to drive the movement of components such as mechanical arms and buckets. Their powerful power output and precise control capabilities can meet the operational requirements of construction machinery in complex working conditions.
Metallurgy industry: In steel mills, hydraulic cylinders are used in equipment such as rolling mills and continuous casting machines to control the lifting and pressure regulation of rollers. Their high pressure and long stroke characteristics meet the stringent requirements of metallurgical equipment for hydraulic cylinders.
Paper industry: In the pressing and drying stages of paper machines, hydraulic cylinders are used to control paper tension and thickness. Their stable performance and precise control enhance paper quality and production efficiency.
Plastic machinery: In plastic molding equipment, hydraulic cylinders are used to control the opening and closing of molds and the molding pressure of plastics. Their precise control capabilities ensure the quality and consistency of plastic products.
Blow molding machine equipment: In blow molding machines, hydraulic cylinders are used to control the opening and closing of blow molding molds and blow molding pressure. Their rapid response and precise control enhance the production efficiency and quality of blow-molded products.
Paper Mill Hydraulic Components: In paper mill hydraulic systems, hydraulic cylinders are used to control the movement and pressure of various equipment. Their stability and reliability ensure the continuity of paper production.
Oilfield Equipment: In oilfield drilling and oil extraction equipment, hydraulic cylinders are used to control the lifting and pressure regulation of drill bits. Their high-pressure and long-stroke characteristics meet the stringent requirements of oilfield equipment for hydraulic cylinders.

Advantages:

High reliability: The Rexroth CDT3ME6/80/56/20F11/B11HEUVWW hydraulic cylinder employs advanced manufacturing processes and high-quality materials, ensuring reliability and durability under various harsh operating conditions. Its long design life enables stable performance during prolonged continuous operation.
Precise control: The hydraulic cylinder is equipped with multiple control options, such as self-adjusting or adjustable end position buffering, enabling precise motion control. Its integrated guide sleeve helps reduce friction and wear, improving control accuracy.
Flexible installation: The hydraulic cylinder's piping connection positions can be freely selected, offering flexible installation locations to accommodate different equipment layouts. Its various installation types (such as front flange-mounted, axial foot-mounted, etc.) meet the needs of different application scenarios.
Easy Maintenance: The hydraulic cylinder is designed with ease of maintenance in mind, with an integrated guide sleeve facilitating quick and easy maintenance. Its compact structure allows for easy disassembly and replacement of components, reducing maintenance time and costs.
High Adaptability: This hydraulic cylinder is compatible with various hydraulic oils, including mineral oil, water-in-oil emulsions, water-glycol, and phosphate esters. Its optimal viscosity range is 20 to 100 mm²/s, with a minimum allowable viscosity of 2.8 mm²/s and a maximum viscosity of 380 mm²/s, meeting the hydraulic oil requirements of different operating conditions.
High safety: The hydraulic cylinder is equipped with a patented safety exhaust valve, facilitating safe and easy exhausting. Its design complies with international safety standards, ensuring safe operation under high-pressure and high-load conditions.
High performance: The Rexroth CDT3ME6/80/56/20F11/B11HEUVWW hydraulic cylinder features a high nominal pressure (160 bar) and maximum operating pressure (210 bar), meeting the demands of high-load and high-pressure applications. Its rapid response and high-precision control enhance equipment production efficiency and product quality.
Optimized Design: The cylinder head and cylinder base of the hydraulic cylinder allow for flexible selection of pipe connection positions, facilitating easy assembly. Its compact design and optimized structure save space and enhance the overall performance of the equipment.
Adaptable to Various Operating Conditions: The hydraulic cylinder can adapt to different installation positions and operating conditions, including horizontal, vertical, and inclined installations. Its design considers the needs of various application scenarios, meeting the requirements of multiple types of equipment.
Brand Advantage: Bosch Rexroth is a globally renowned manufacturer of hydraulic equipment, renowned for its high-quality, high-performance, and highly reliable products. Choosing Rexroth hydraulic cylinders provides users with brand assurance and technical support, reducing equipment operational risks.
