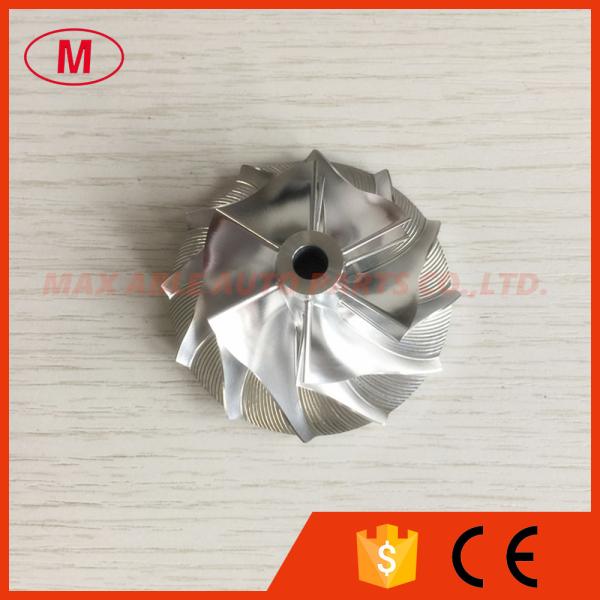

GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
Specifications
Brand Name :
NO
Model Number :
GT15-25
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000pcs
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Description
1. MODEL:GT15-25 forward
2.GT15-25 39.60/56.02mm 707747-0005H 6+6 blades Billet/milling/aluminum 2618 compressor wheel for Alfa Romeo/Lancia 454150-0005/0006/701900-0002/443824-0024
3.Size:
Nose diameter:11.35mm
Inducer:39.60mm
exducer:56.02mm
Tapered tip exducer:58.90mm
Tip height:3.49mm
Superback:2.39mm
bore size :5.99mm
bore type:through
Overall height:26.10mm
Cutback:0.0MM
Trailing Angle:60
SP height angle:-6.00
Splitter height:13.40
Blade height:20.17mm
6+6 blades forward
Fit for OE compressor housing
Tapered tip Angle:30 degree
Application:
454150-0005

454150-0006

701900-0002
443824-0024
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006GT15-25 39.60/56.02mm 707747-0005H 6+6 blades milling/aluminum 2618/billet compressor wheel for 454150-0005/0006
