Specifications
Brand Name :
NO
Model Number :
HE300VG
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Size :
52.00/77.98mm
Type :
Turbochargers
Description
1. MODEL:HE300VG forward

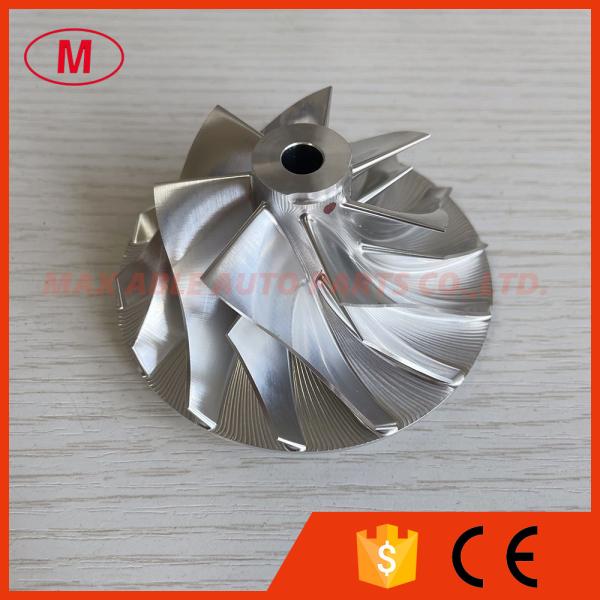

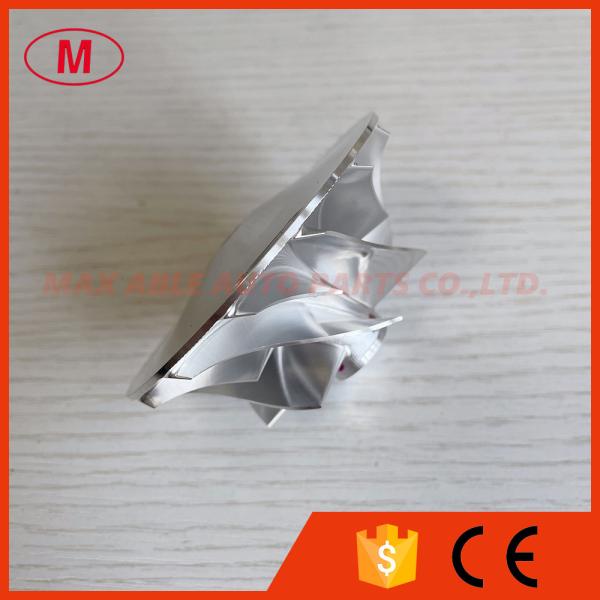

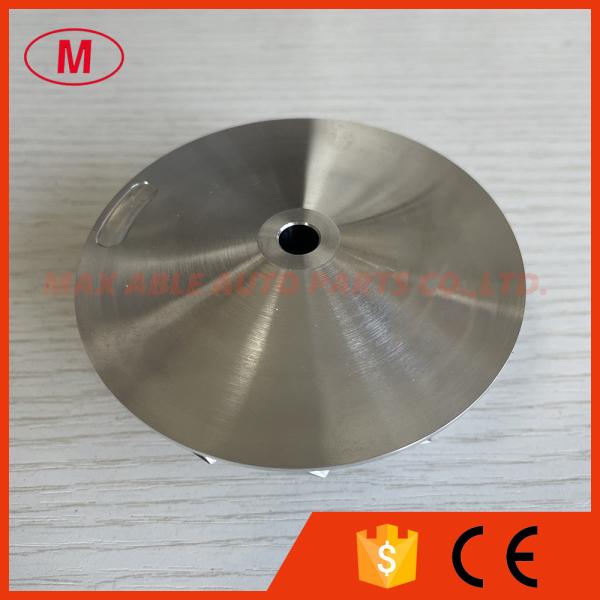

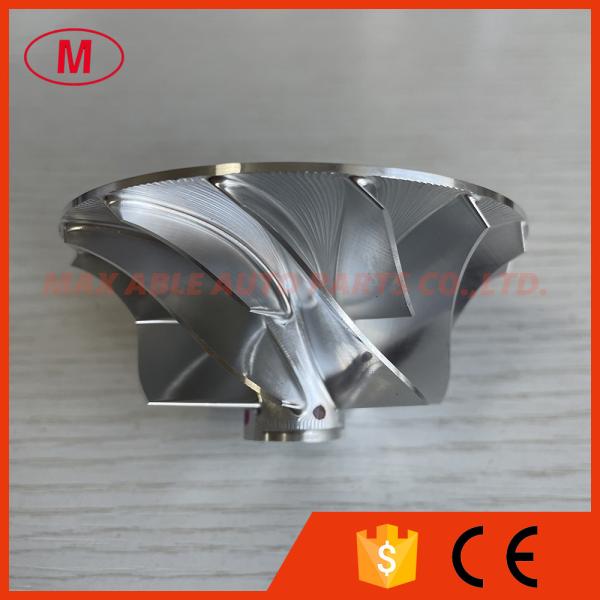

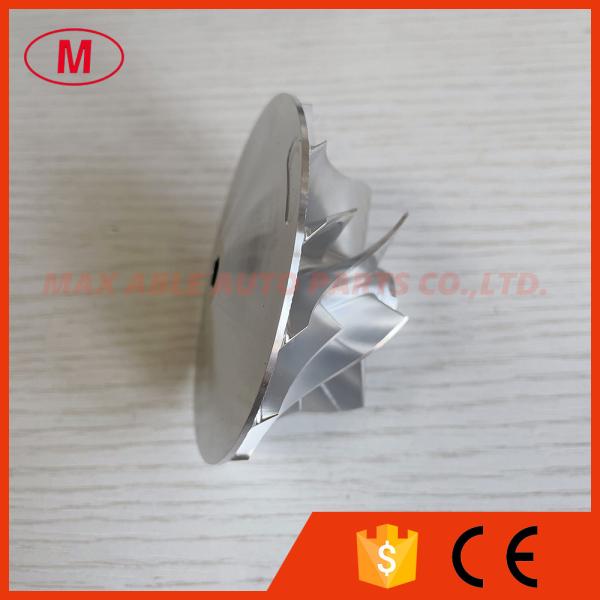

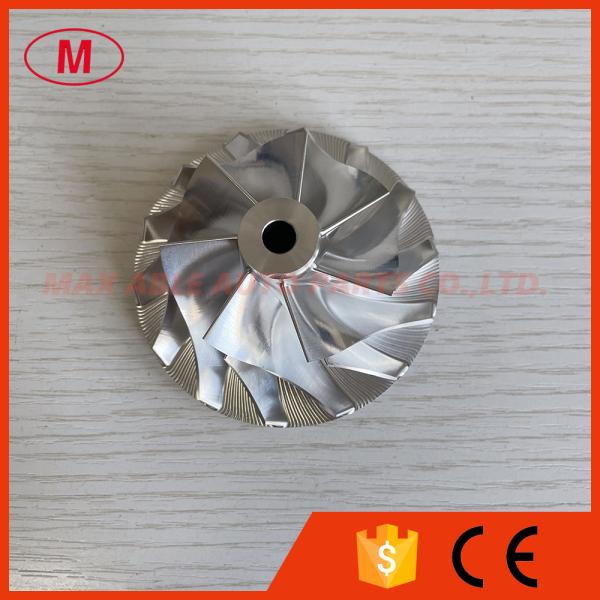

2.HE300VG 4035787 7+7 blades 52.00/77.98mm turbo Billet/milling/aluminum 2618 compressor wheel for QSB 3781640/3781646/3781647/3781648/3781649/3786893/3786893H/3789601/3789624/3789625/3789626/3789627/5328074/5328270/5328271/5328272/5328273/5501336
3.Size:
Nose diameter:16.95mm
Inducer:52.00mm
exducer:77.98mm
Tip height:5.03mm
Superback:5.00mm
bore size :7.00mm
Bore type:through
Overall height:39.00mm
Cutback:2.5mm
Trailing Angle:40 degree
Blade height:29.05mm
sp Height angle:-3.40
Splitter height:16.00mm
7+7 blades forward rotation
It is for OE compressor housing
Tapered tip Angle:0 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719
