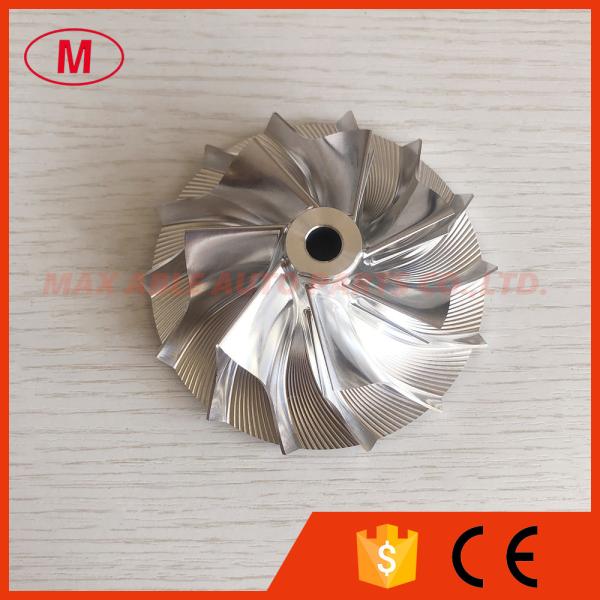

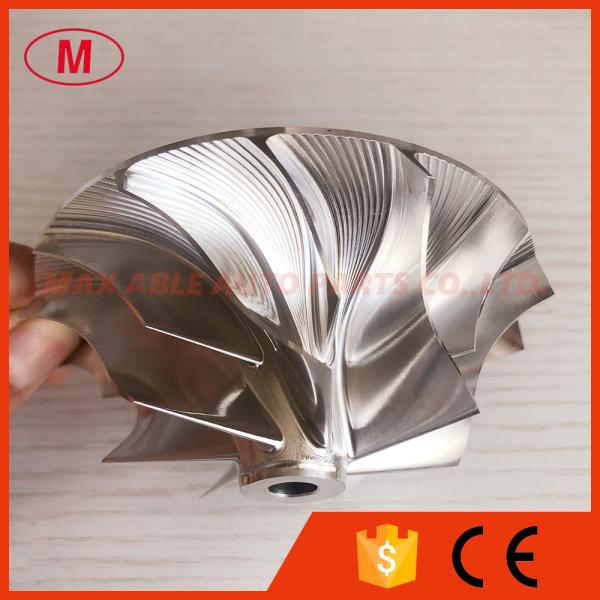

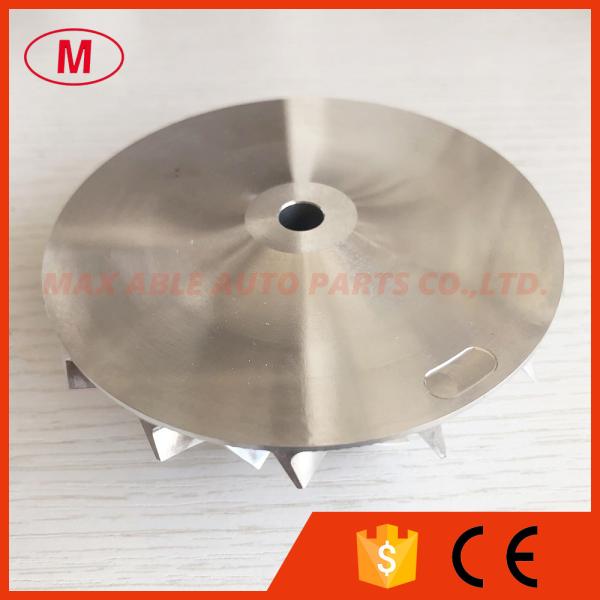

TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
Specifications
Model Number :
TD08
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Size :
40.62/55.93mm
Type :
Turbochargers
Description
1. MODEL: TD08H forward
2.TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo Billet/milling/Aluminum 2618 compressor wheel
3.Size:
Nose diameter:17.00mm
Inducer:64.00mm
exducer:89.97mm
Tapered tip exducer:93.86mm
Tip height:7.49mm
Superback:2.74mm
bore size :7.95mm
bore type: through
Overall height:38.50mm
Cutback:5.0
Trailing Angle:60
Splitter height:19.06mm
Sp height angle:0.00
Blade height:31.58mm
7+7 blades forward
It is for OE compressor housing
Tapered tip Angle:18 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
Skype: maxabledieselparts
Wechat/whatsapp:+ 86-18018657719
TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel

TD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheelTD08H 49174-44301 64.00/89.97mm 7+7 blades turbo milling/Aluminum 2618/billet compressor wheel
