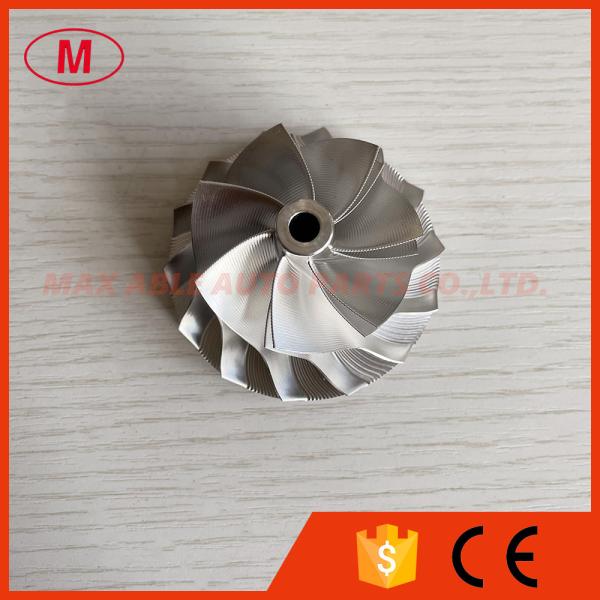

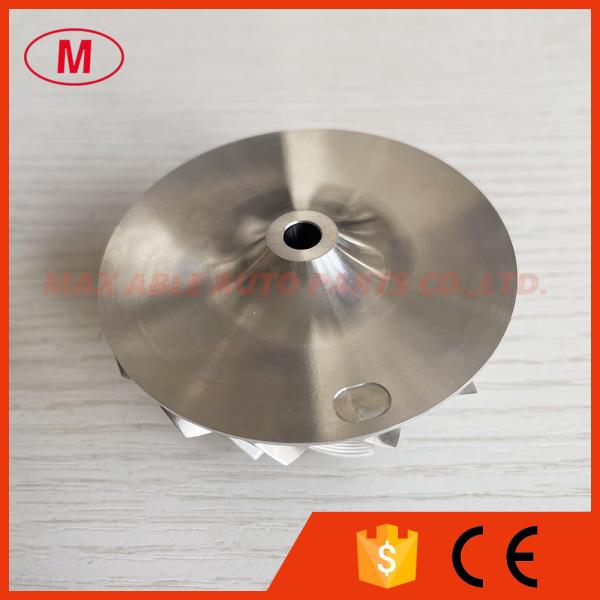

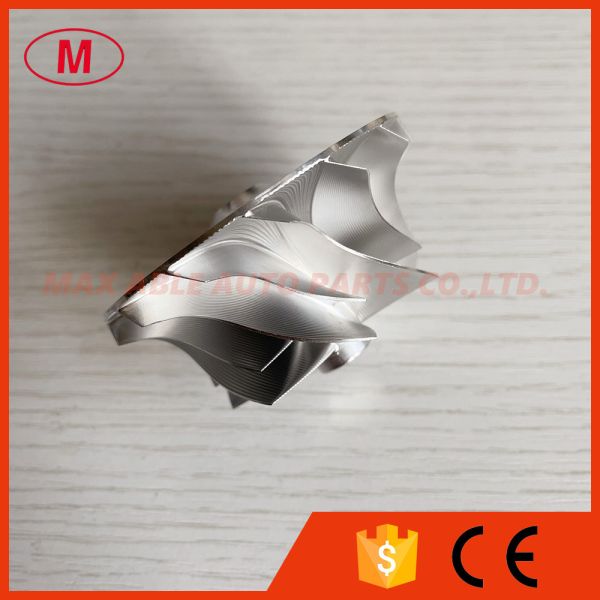

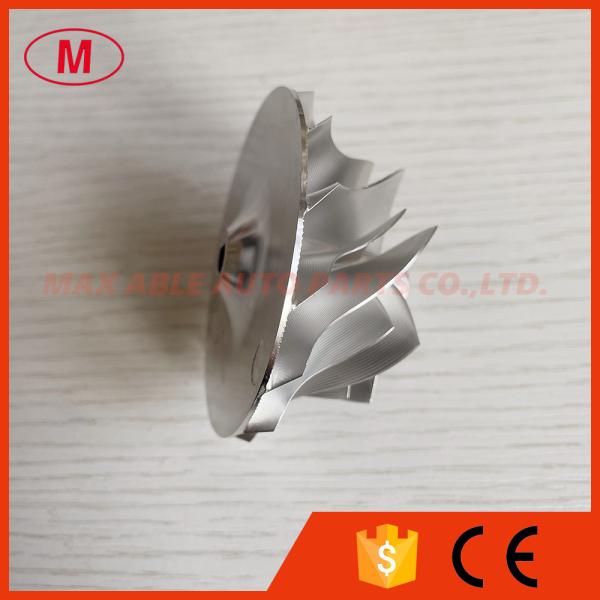

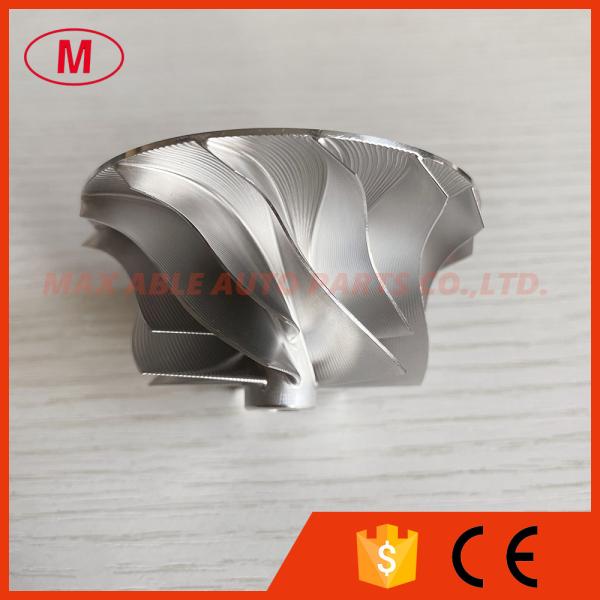

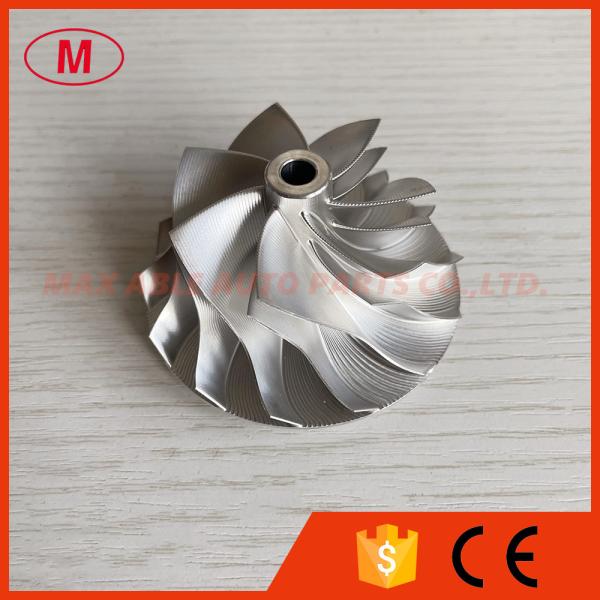

RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/milling/billet compressor wheel
Specifications
Brand Name :
NO
Model Number :
RHF5
Certification :
ISO
MOQ :
1PC
Price :
DISCUSS
Payment Terms :
T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
1000PCS
Delivery Time :
3-7 DAYS
Packaging Details :
neutral packing
Description

1. MODEL:RHF5 forward

2.RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:

Nose diameter:12.00mm

Inducer:48.75mm

exducer:67.50mm

Tapered tip exducer:69.01mm

Tip height :5.70mm

superback:4.50mm

Overall height:38.00mm

Bore size:6.10mm

bore type:throug

Trailing Angle:41 degree

Cutback:2.0

SP height Angle:-2.00

Blade height:29.50mm

Splitter Height:23.00mm

7+7 blades

Tapered tip Angle: 9.1 degree

It is custom size,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me.

All the compressor wheel have been balanced.

We can produce as your requirement.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719
