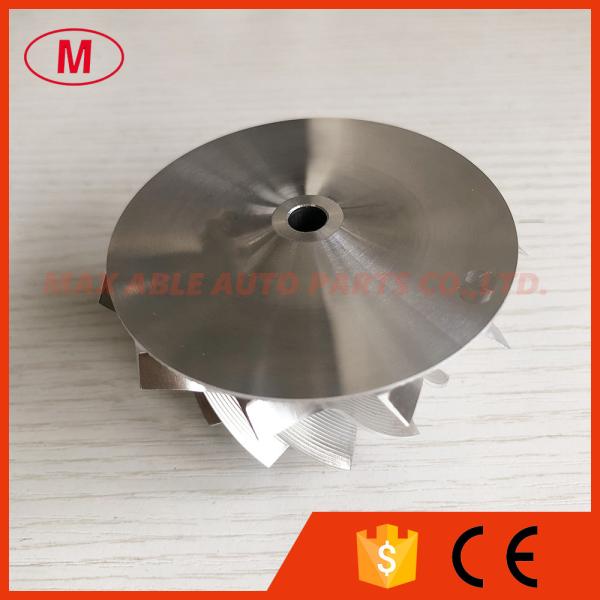

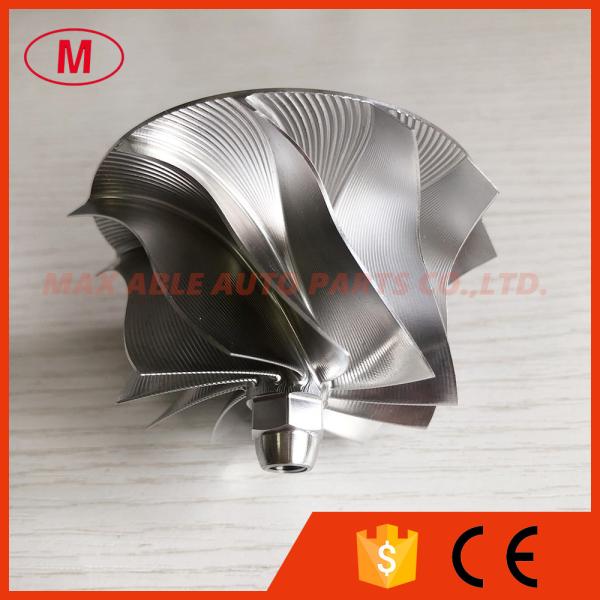

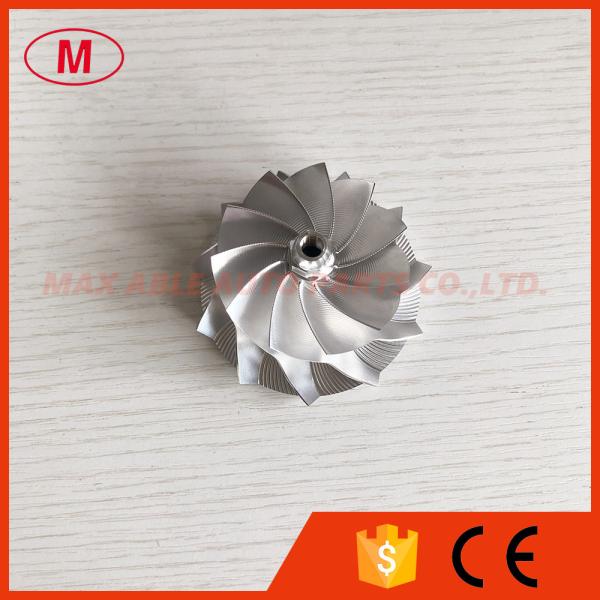

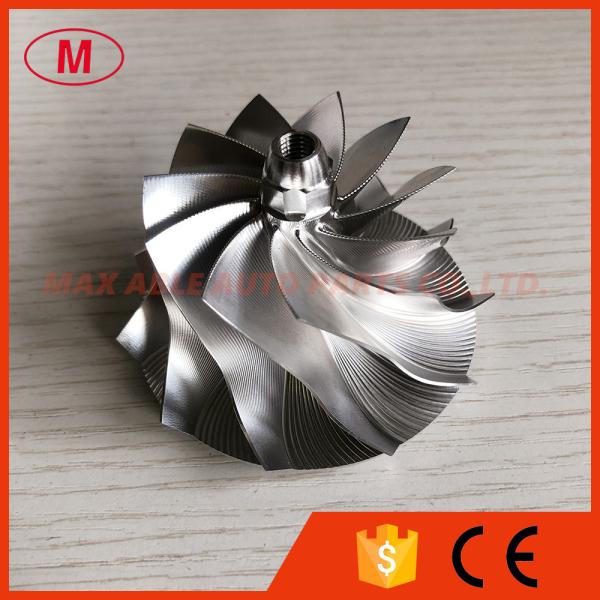

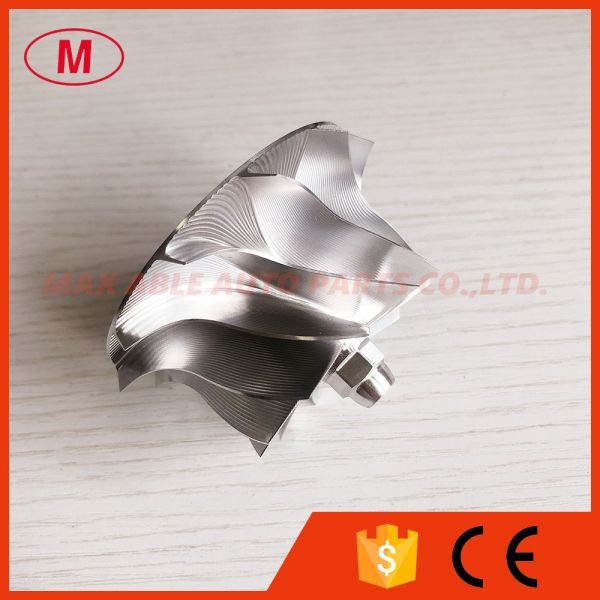

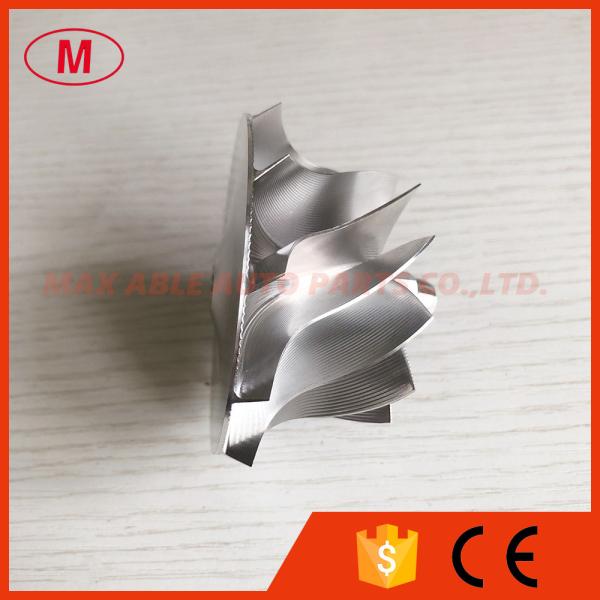

TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
Specifications
Brand Name :
no
Model Number :
TD05H
Certification :
ISO
MOQ :
1PC
Price :
DISCUSS
Payment Terms :
T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
1000PCS
Delivery Time :
3-7 DAYS
Packaging Details :
Neutral packing
Description
1. MODEL:TD05H Forward
2.TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose Diameter:13.00mm
Inducer:52.56mm
exducer:68.01mm
Tapered tip exducer:74.21mm
Tip height:6.37mm
Superback:2.90mm
bore size :6.50mm
Trailing angle:60
Overall height:47.00mm
Bore type:Threaded 1/4-28G-LHT
Cutback:-10.0
Blade height:34.88mm
Sp Height angle:0.00
Splitter height:0.00mm
11+0 blades forward
Point milling
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
TD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheelTD05H 52.56/68.01mm 11+0 blades high performance point milling Bullet Head milling/aluminum 2618/billet compressor wheel
