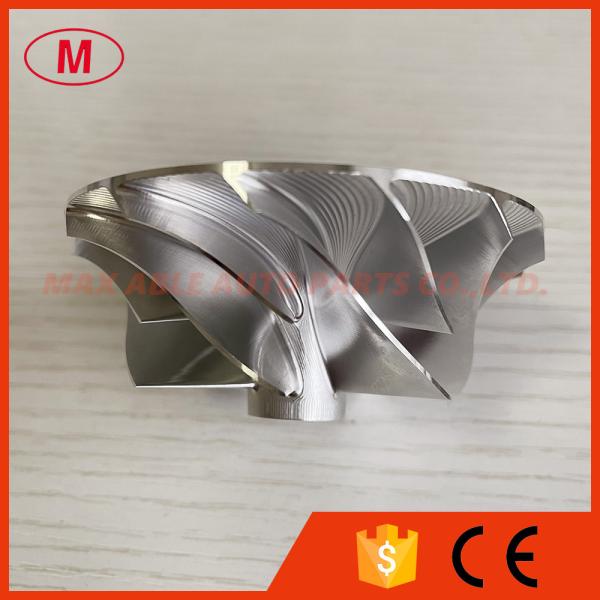

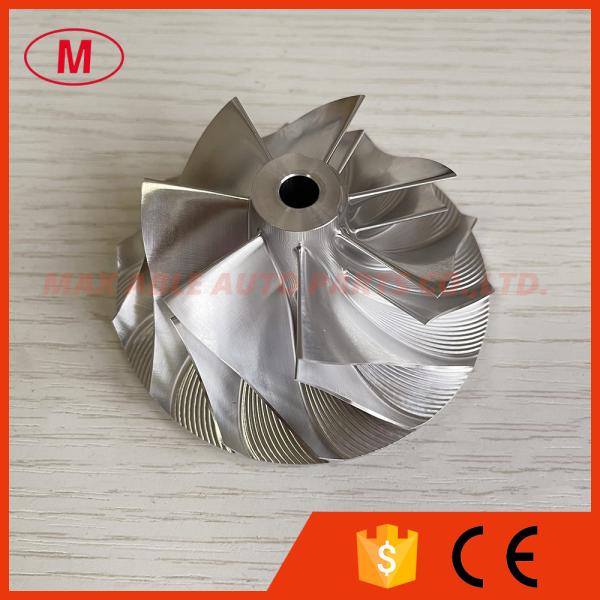

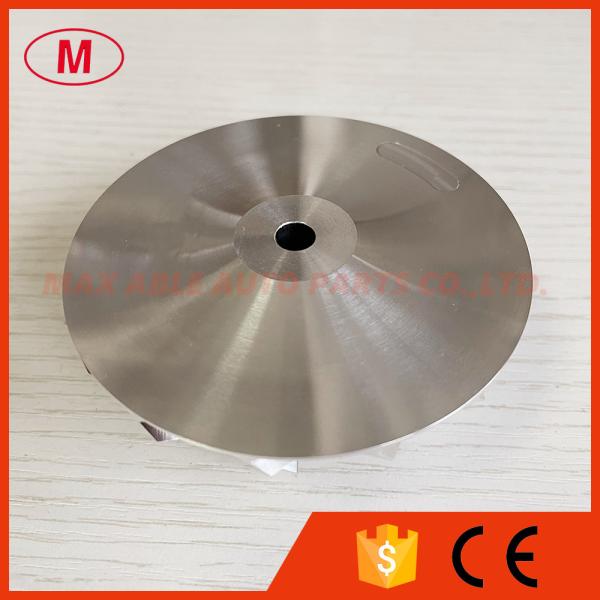

TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
TD05H/TD07 55.11/75.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
Specifications
Brand Name :
no
Model Number :
TD05H/TD07
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
TT,western union ,paypal
Supply Ability :
10000pcs
Delivery Time :
3-7 days after payment
Packaging Details :
neutral packing
Description

1. MODEL:TD05H/TD07 forward

2. TD05H/TD07 55.11/75.00mm 7+7 blades Turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:15.62mm

inducer:55.11mm

exducer:75.00mm

tip height:5.50mm

Overall height:32.95mm

super back:2.70mm

bore size :6.50mm

Trailing angle:45

blades height:25.86mm

Cutback:0.0

Splitter height:17.00mm

SP height angle:-8.30

7+7 blades

forward rotation

Tapered tip angle:0 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719
