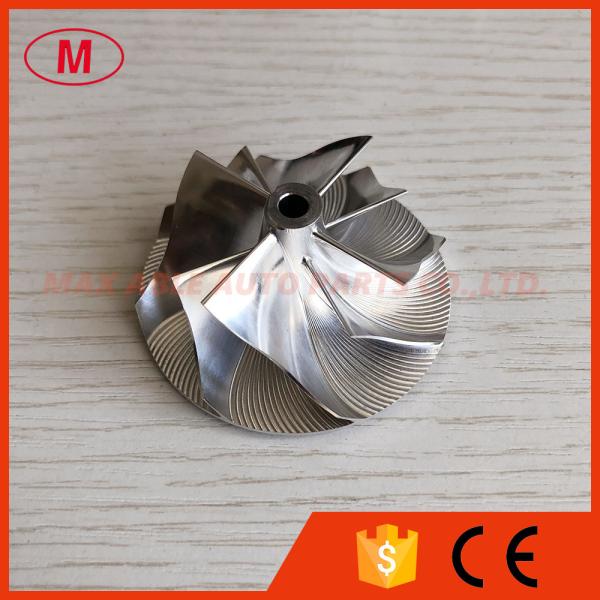

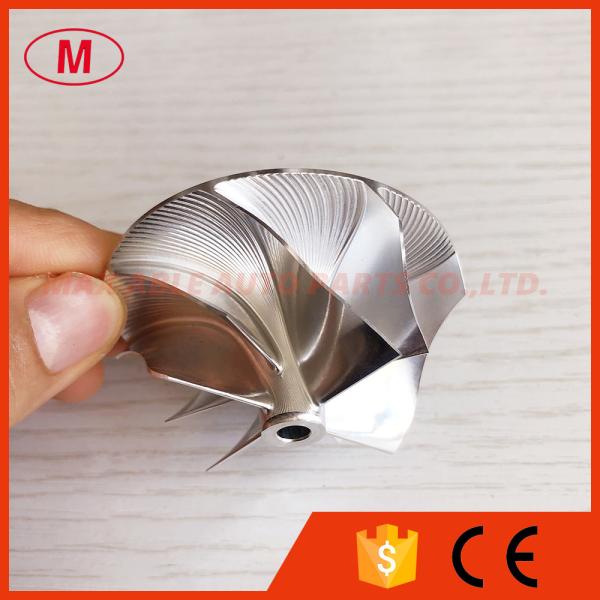

K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
Specifications
Model Number :
K03
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Type :
Turbochargers
Description

1. K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020/0022/0023/0028/0029 1302-003-411 SEAT

2.SIZE:

Nose diameter:9.10mm

inducer:41.85mm

Exducer:56.08mm

tip height:5.85mm

trailing angle:45 degree

Superback:1.80mm

Overall height:25.71mm

bore size :4.61mm

BORE type:Through

cutback:0.0

splitter height:16.70mm

sp height angle:-2.20

Blade height:21.78mm

4+4 blades

It is for OE compressor housing.

tapered tip angle:0 degree

4.Good quality and competitive price

5.Please send email to me or talk to me on online ,if you want to know more details.

All the billet compressor wheel have been balanced.

K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020K04 5304-123-2015 41.85/56.08mm 4+4 blades turbocharger aluminum 2618/milling/billet compressor wheel for 5304-970-0020
