K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel
Specifications
Model Number :
K04
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000pcs
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Size :
40.50/56.08mm
Type :
Turbochargers
Description

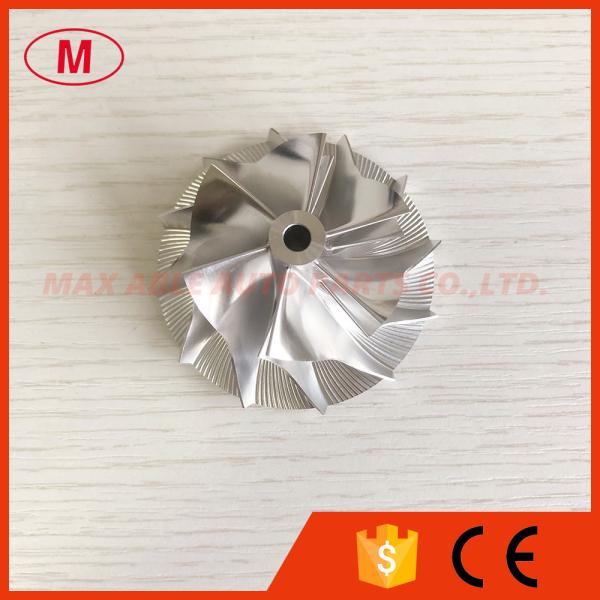

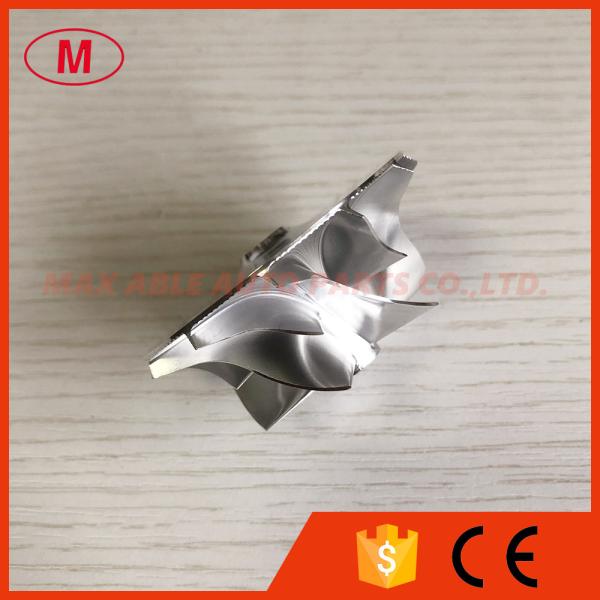

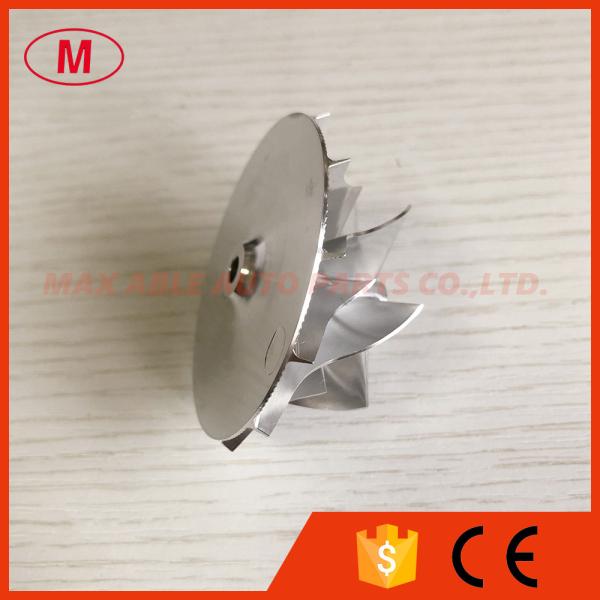

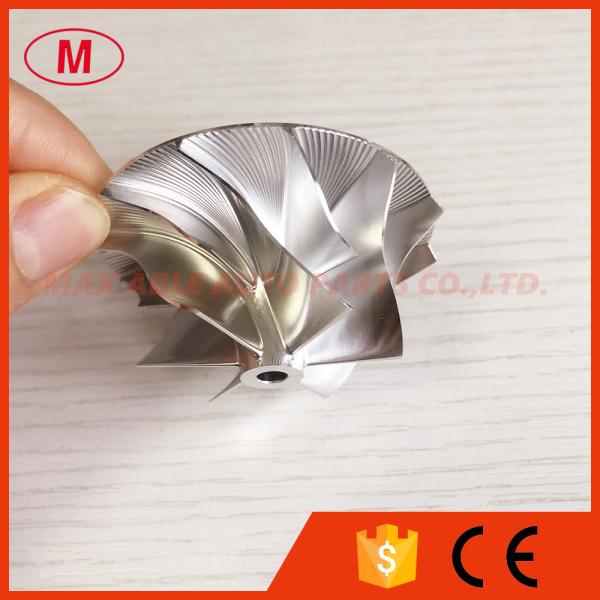

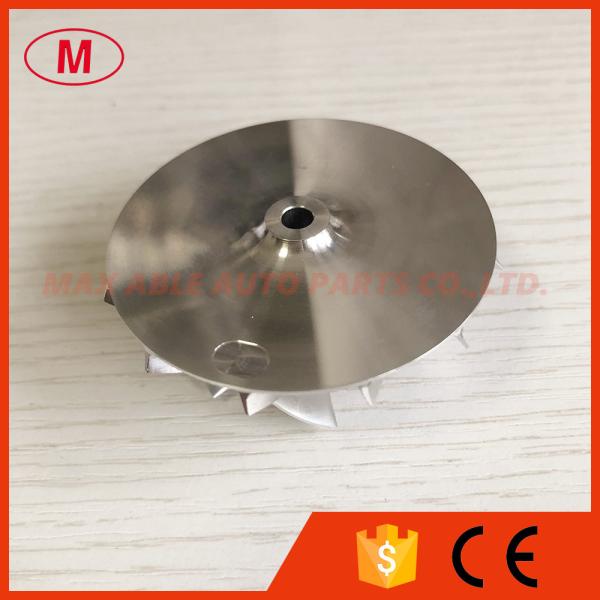

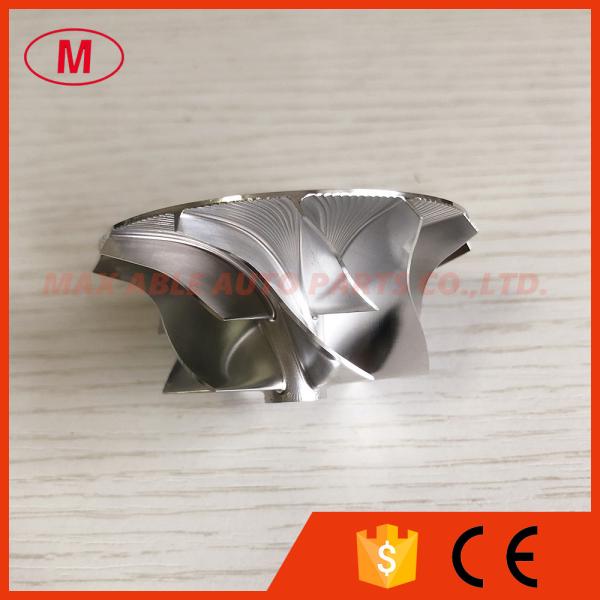

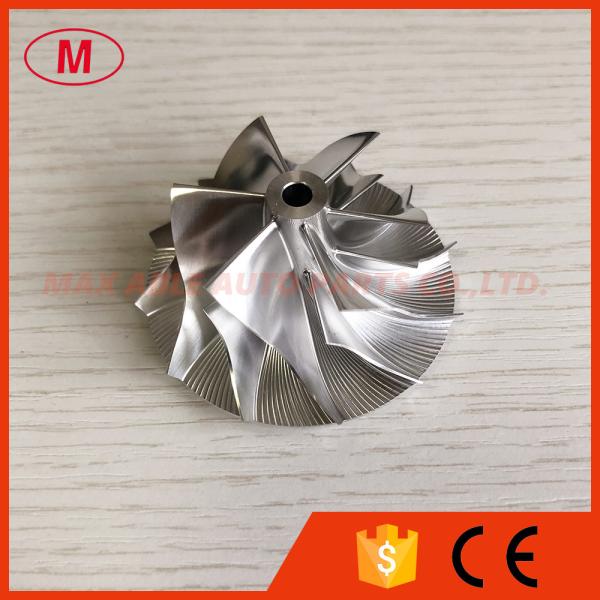

1. K04 5306-123-2034 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel for 5304-970-0126 VW Amarok

2.SIZE:

Nose diameter:9.68mm

inducer:40.50mm

Exducer:56.08mm

Tapered tip exducer :59.22mm

tip height:3.55mm

trailing angle:75 degree

Tip height:3.55mm

Superback:2.60mm

Overall height:27.70mm

bore size :4.61mm

cutback:0.0

splitter height:13.80mm

sp height angle:-4.00

Blade height:23.30mm

6+6 blades

It is for OE compressor housing.

tapered tip angle:30 degree

4.Good quality and competitive price

5.Please send email to me or talk to me on online ,if you want to know more details.

All the billet compressor wheel have been balanced.
