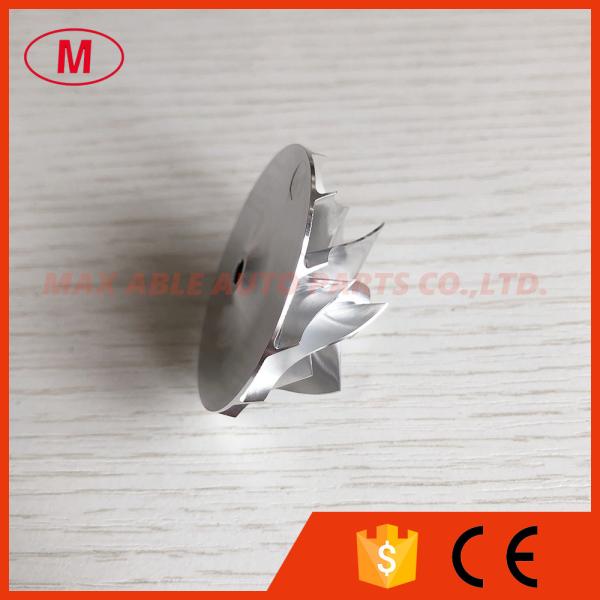

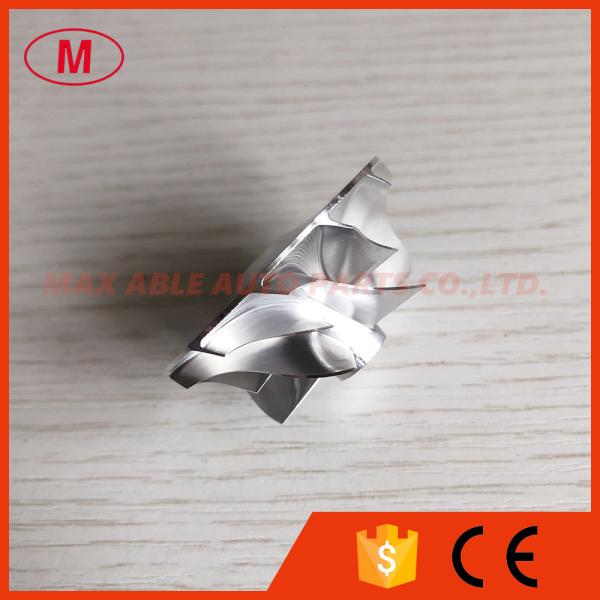

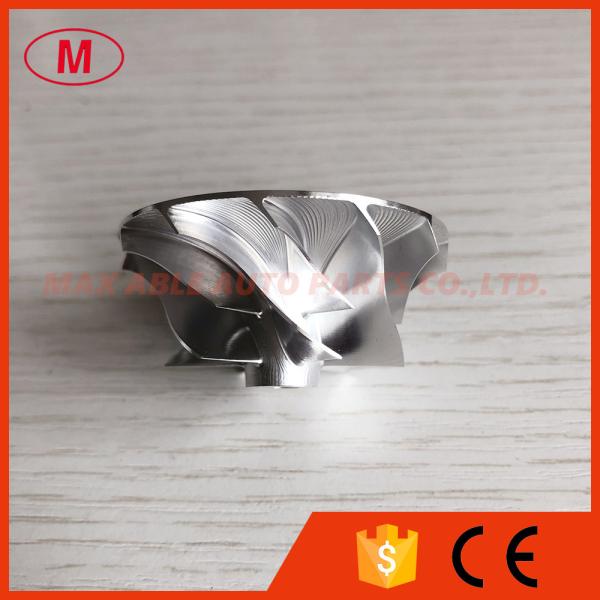

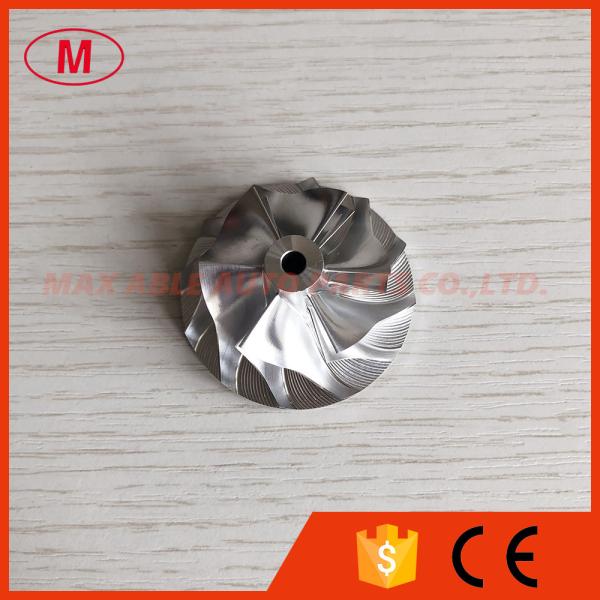

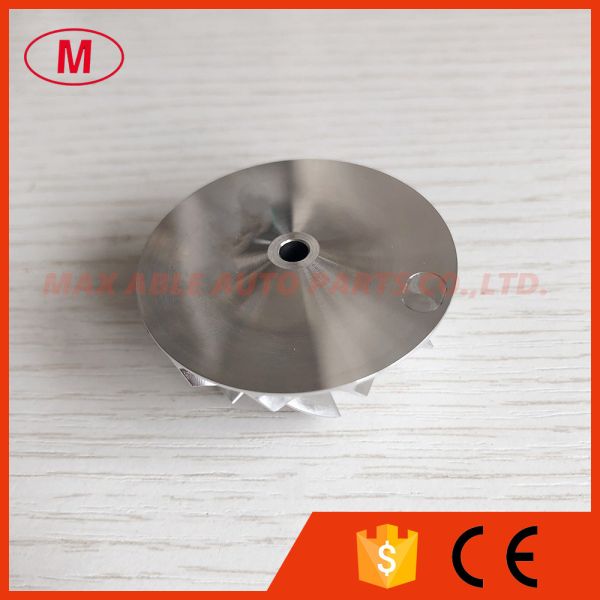

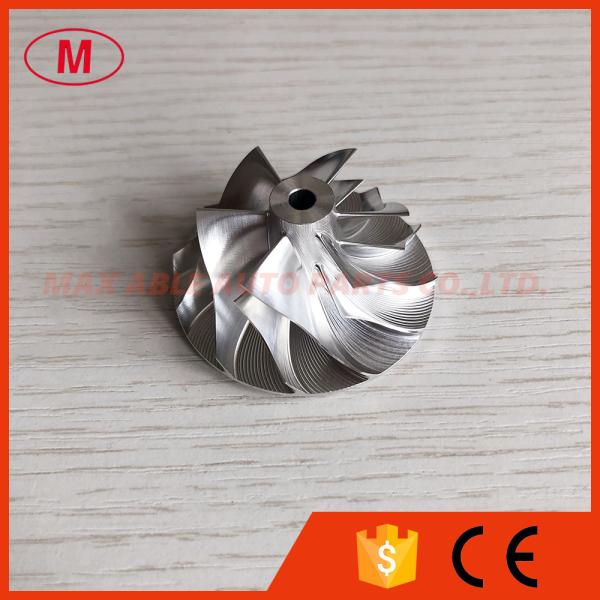

TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
TD03 31.90/44.01mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 49131-06003 OPEL
Specifications
Brand Name :
NO
Model Number :
TD03
Certification :
ISO
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000pcs
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Description

1. TD03 31.90/44.01mm 6+6 blades Billet/milling/aluminum 2618 compressor wheel for OPEL 49131-06003/8-97300-0923/49131-06004/8-97300-0926/49131-06007

2.Size :

Nose diameter:9.67mm

Inducer :31.90mm

Exducer:44.01mm

Tip height:4.07mm

superback:1.68mm

Overall height:21.60mm

bore size:4.00mm

Trailing Angle:50

Cutback:0.0

Splitter height:11.30mm

sp height angle:-2.30

Blades height:17.14mm

6+6 blades

forward rotation

Tapered tip Angle:0 degree

It is fit for OE compressor housing

3.High quality and competitive price.

We have more size and we can produce as your requirement .
