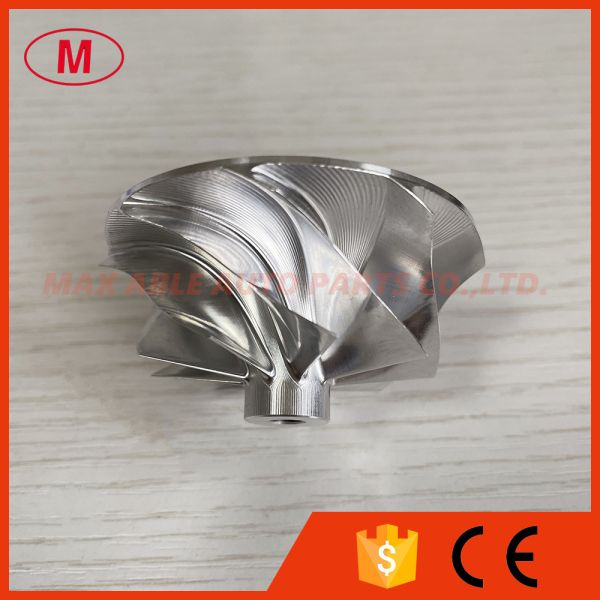

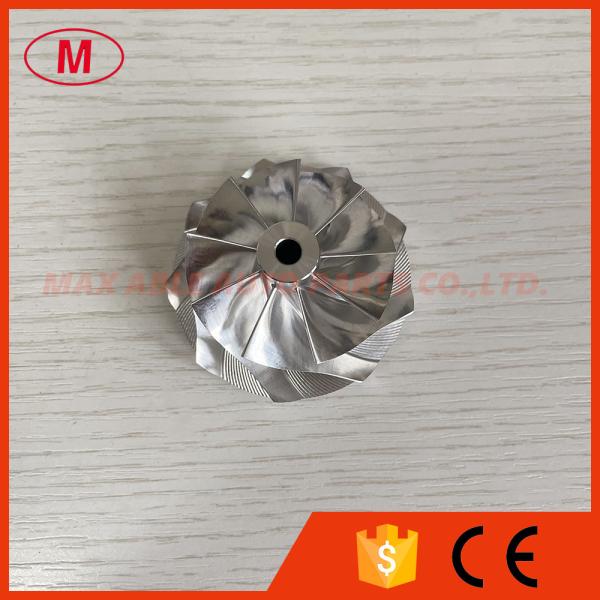

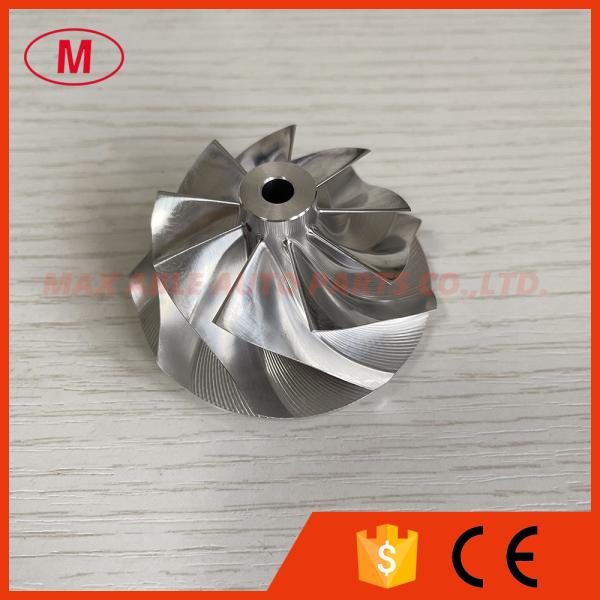

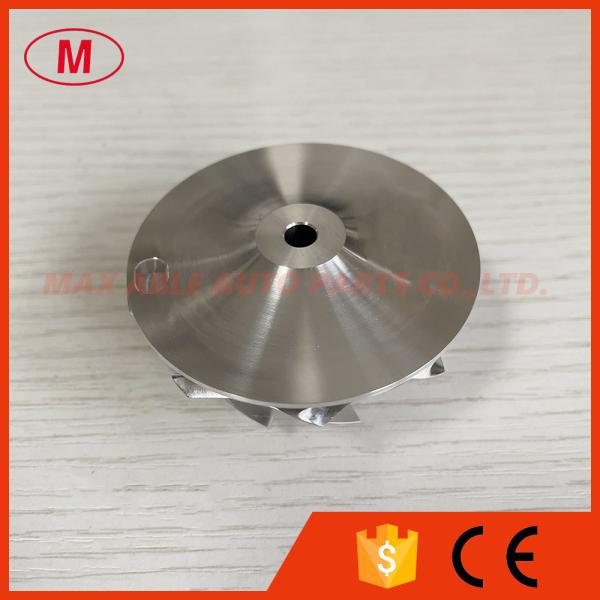

GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S
Specifications
Brand Name :
NO
Model Number :
GBC22-350
Certification :
ISO
MOQ :
1PC
Price :
DISCUSS
Payment Terms :
T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
1000PCS
Delivery Time :
3-7 DAYS
Packaging Details :
neutral packing
Description

1.Model:GBC22-350 forward

2.GBC22-350 9+0blades 44.10/56.02mm 121601, 210327 turbo milling/aluminum 2618/billet compressor wheel for 896055-5003S

3.Size:

Nose diamter:12.44mm

inducer:44.10mm

Exduder:56.02mm

Tapered tip exducer:57.90mm

Tip height:4.97mm

Superback:3.81mm

Overall height:30.92mm

bore size :5.08mm

bore type:through

Trailing angle:35 degree

Cutback:6.6

SP height angle:0.00

Blade height:21.57mm

Splitter height:0.00mm

Fit for OE compressor housing

9+0 blades

Forward rotation

Tapered tip angle:13.5 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

All the billet compressor wheels have been balanced.
