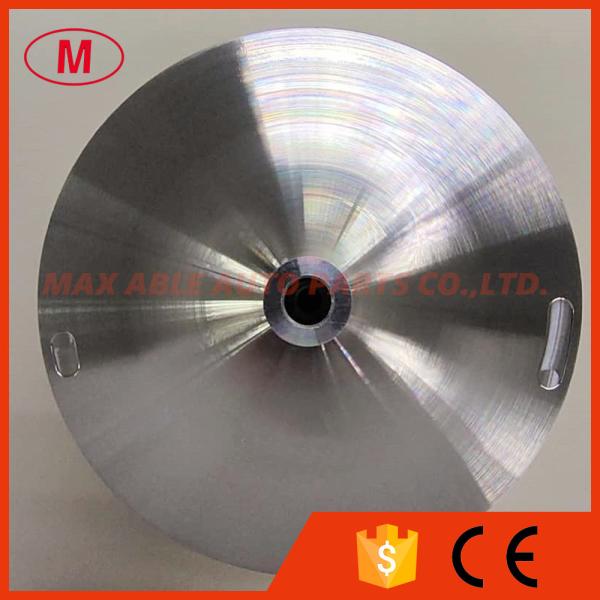

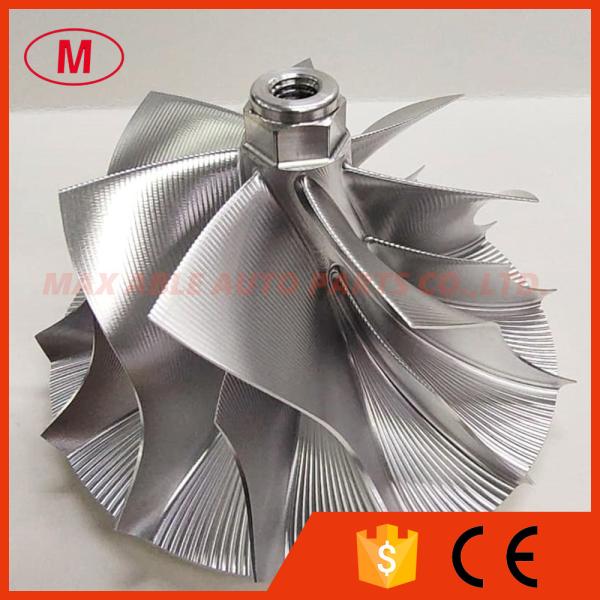

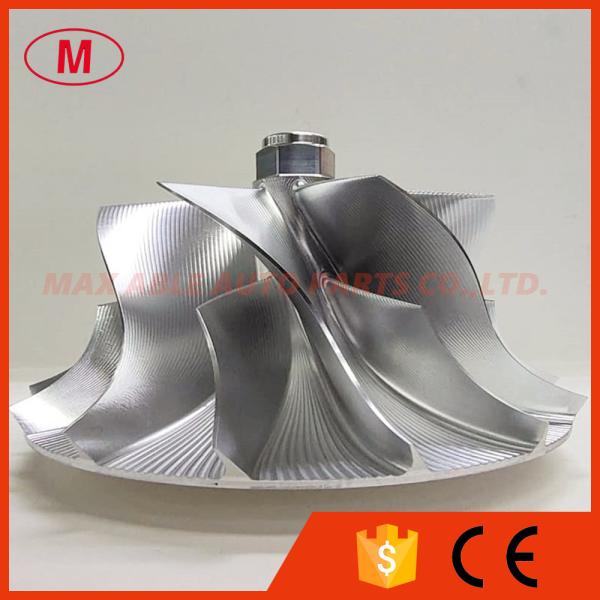

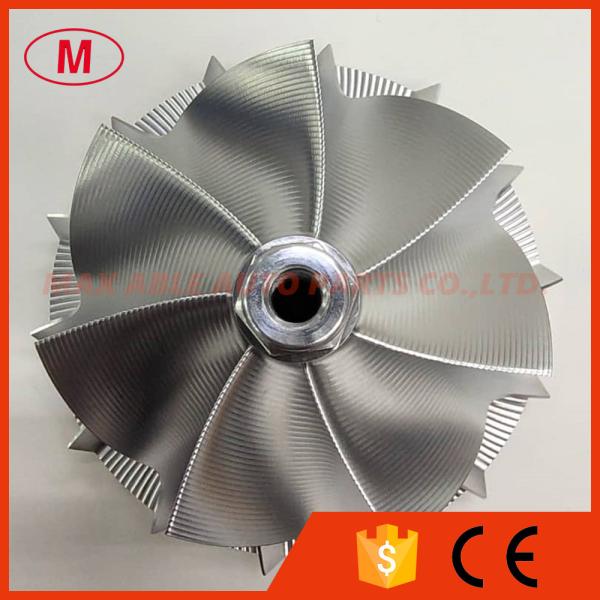

UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
Specifications
Brand Name :
NO
Model Number :
UTW8126
Place of Origin :
CHINA
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Description

1. MODEL:UTW8126 forward

2.UTW8126 10R3092,10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling/aluminum 2618 compressor wheel for 471095-0012,2877210,287-7210 Cater-pillar C30, C32, SR5

3.Size:

Nose diameter:20.00mm

inducer:87.94mm

Exduder:117.57mm

Tapered tip exducer:123.24mm

Tip height:6.41mm

Superback:8.08mm

Overall height:70.97mm

bore size :9.50mm

bore type:Threaded-M9x1.5-LHT

Trailing Angle:60 degree

Cutback:5.0mm

Blades height:50.00mm

Splitter height:25.10mm

Sp height angle:10.30

7+7 blades

Forward rotation

Tapered tip angle:30 degree

Fit for OE compressor housing

Application:

471095-0012,2877210,287-7210

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.the minimun order is 5pcs

The more models we also have.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
UTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheelUTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheelUTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheelUTW8126 10R3092/10R-3092 87.94/117.57mm 7+7 blades point milling high performance turbo billet/milling compressor wheel
