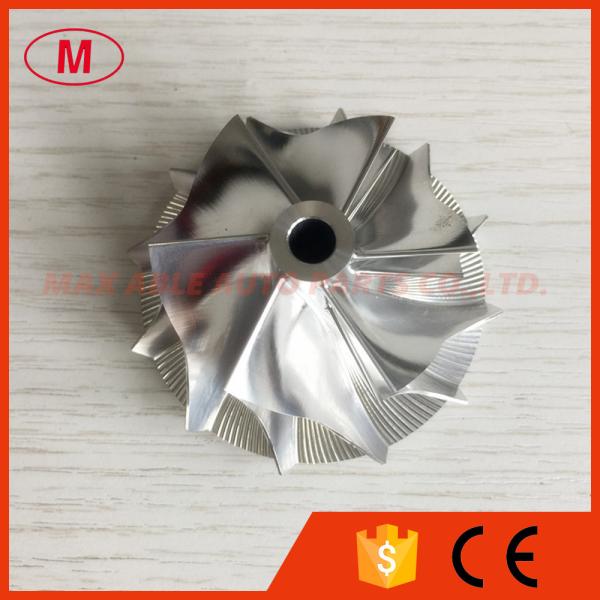

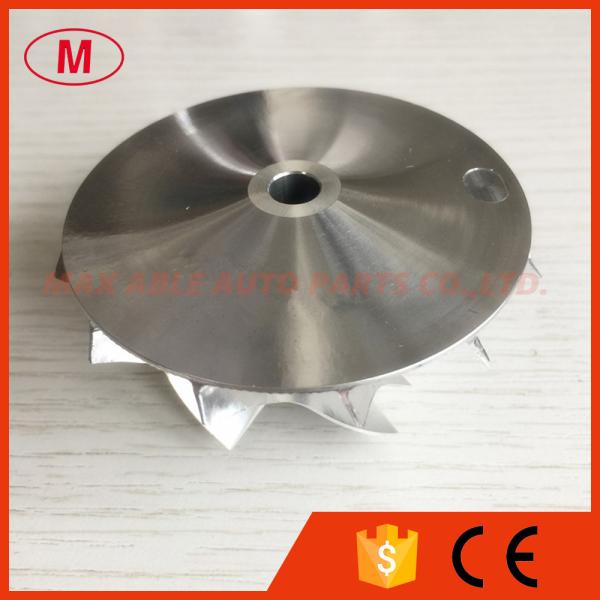

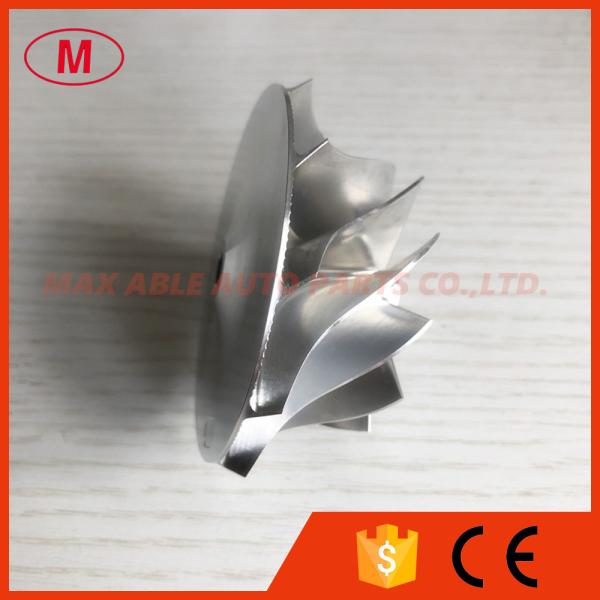

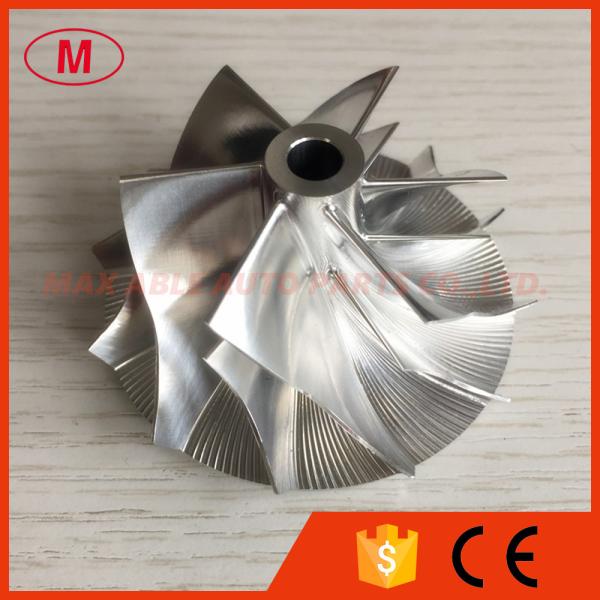

TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheel
TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheel
TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheel
TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheel
TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheel
TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheel
TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheel
TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheel
Specifications
Brand Name :
NO
Model Number :
TD05H 16G small
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000pcs
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Description

1. MODEL:TD05H 16G small forward

2.TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 high performance Turbo Billet/milling/Aluminum 2618 compressor wheel for 49178-02001, 49178-01460, 49178-04340, 49178-04400, 49178-04500, 49178-04510, 49178-05200,49178-06200, 49178-06290, 49178-06300, 49178-06310, 49178-06380, 49178-06390

3.Size:

Nose diameter:11.79mm

Inducer:46.48mm

Exducer:60.00mm

Tapered tip exducer:64.60mm

Tip height:4.99mm

Superback:2.80mm

Overall height:31.40mm

bore size :6.50mm

bore type:through

Trailing angle:60

Cutback:3.0

Blades height:26.80mm

Splitter height:15.80mm

Sp height angle:-3.10

6+6 Blades

forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the billet wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

TD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheelTD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheelTD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheelTD05H 16G small 46.48/60.00mm 6+6 blades 49178-43300 performance Turbo milling/Aluminum 2618/billet compressor wheel
