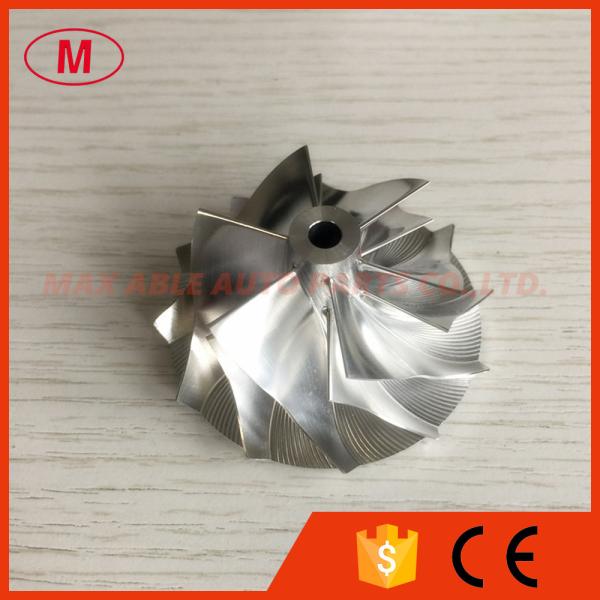

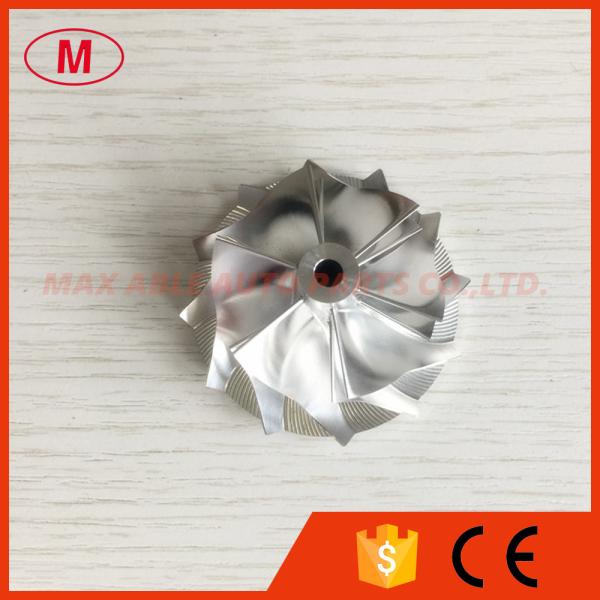

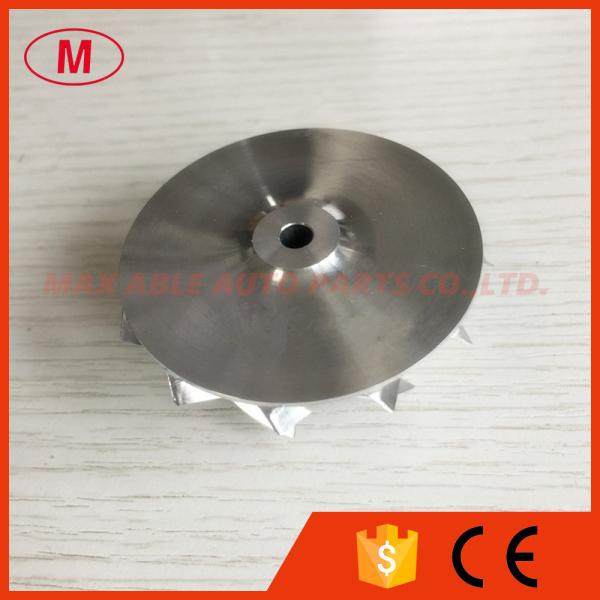

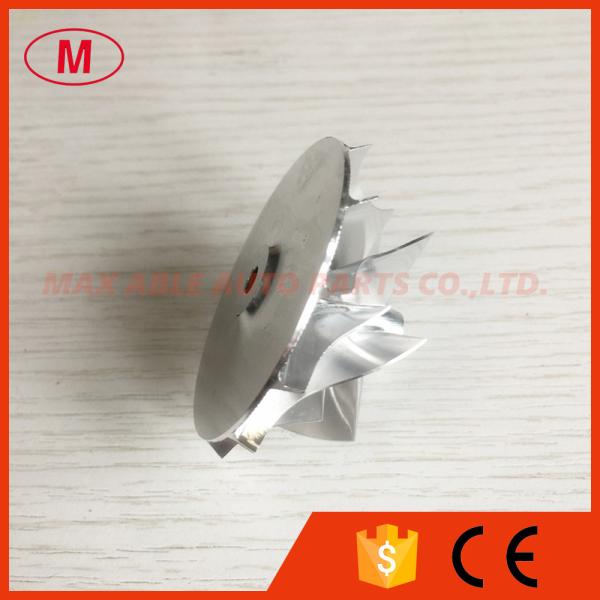

K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
Specifications
Brand Name :
NO
Model Number :
K04
MOQ :
1PC
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Delivery Time :
3-4 DAYS
Packaging Details :
NETRUAL PACKING
Description

1.Model:K04 forward rotation
2.K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5303-988-0046/0081/0083/0084/0096 Fiat/Citroen/Peugeot

3.SIZE:

Nose Diameter:10.13mm

inducer:39.86mm

Exducer:50.96mm

Tapered tip exducer:54.87mm

Tip height:4.39mm

Superback:1.80mm

Overall height:25.66mm

bore size :4.61mm

bore type:through

Trailing angle:60

Cutback:0.0

Blades height:20.08mm

Splitter height:13.10mm

SP Height angle:0.00

6+6 blades

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

4.Good quality and competitive price

5. aluminum 2618/milling/ billet high performance compressor wheel

6.Application:

5303-988-0046

5303-988-0081

5303-988-0083

5303-988-0084

5303-988-0096

7.Please send email to me or talk to me on online ,if you want to know more details.

All the compressro wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

K04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheelK04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheelK04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheelK04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheelK04 39.86/50.96mm 5304-123-2024/5304-123-2021 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
