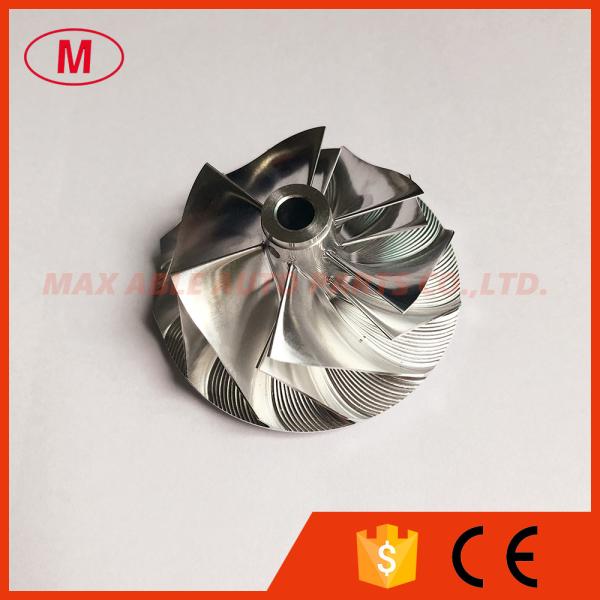

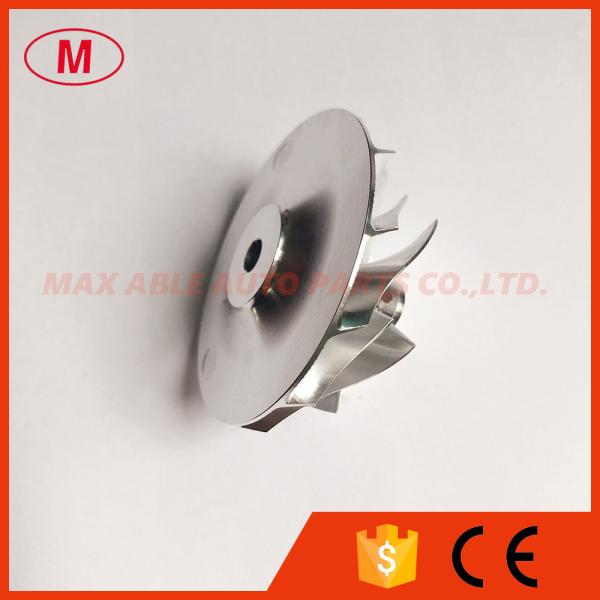

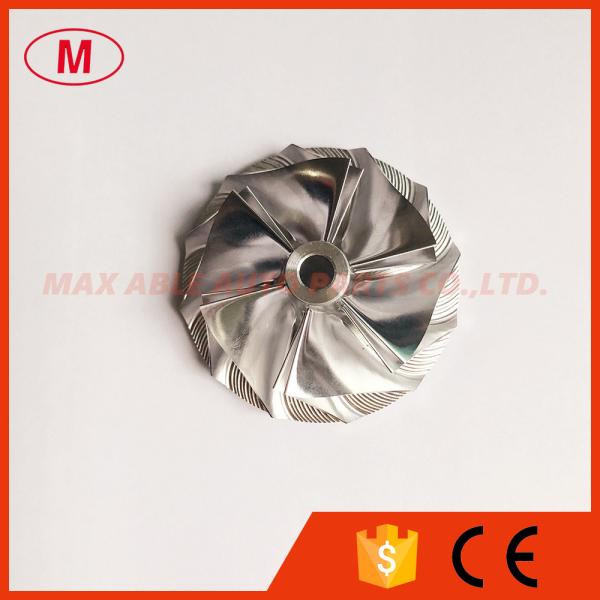

TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco
TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco
TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco
TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco
TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco
TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco
TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco
TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco
Specifications
Brand Name :
NO
Model Number :
TA31
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Size :
46.41/60.25mm
Type :
Turbochargers
Description

1. MODEL:TA31 Forward

2. TA31 46.41/60.25mm 409096-0013 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Kobelco 444836-0001/452064-0001/465103-0002/465133-0004/465189-0001/465286-0004/465358-0003/465404-0003/465503-0001/465562-0004/465564-0006/465576-0004/465593-0001

3.Size:

Nose diameter:12.16mm

inducer:46.41mm

Exducer:60.25mm

Tip height:5.89mm

Superback:3.81mm

Overall height:31.00mm

Bore size:6.35mm

Trailing angle:60

Cutback:1.0

Sp height angle:-4.50

Blade height:20.70mm

Splitter height:13.95mm

6+6 blades

Forward rotation

Tapered tip angle:0 degree

It is for OE compressor housing

Aplication:

444836-0001

452064-0001

465103-0002

465133-0004

465189-0001

465286-0004

465358-0003

465404-0003

465503-0001

465562-0004

465564-0006

465576-0004

465593-0001

4.High quality and competitive price.

5.Any questions please send email to me,we have many size.

All the compressor wheel have been balanced.
