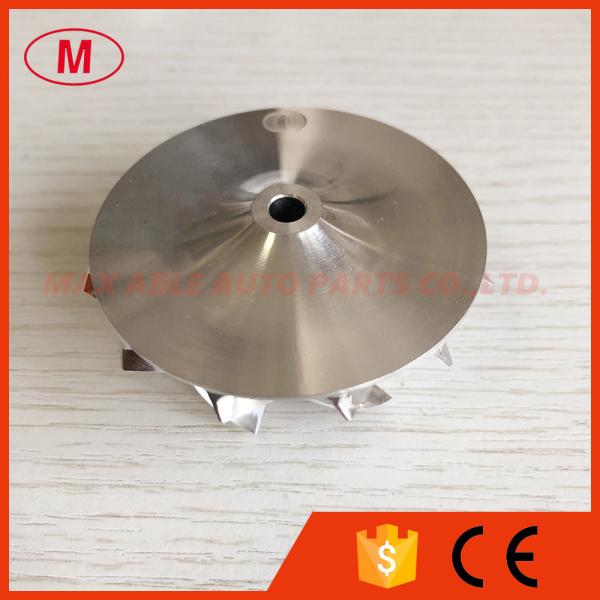

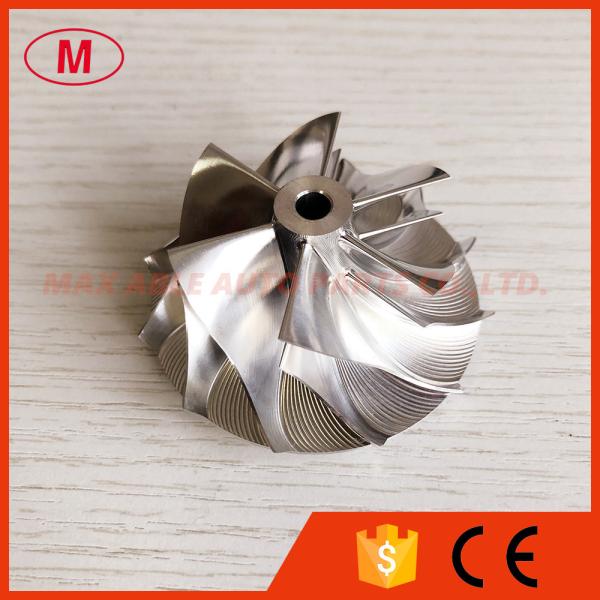

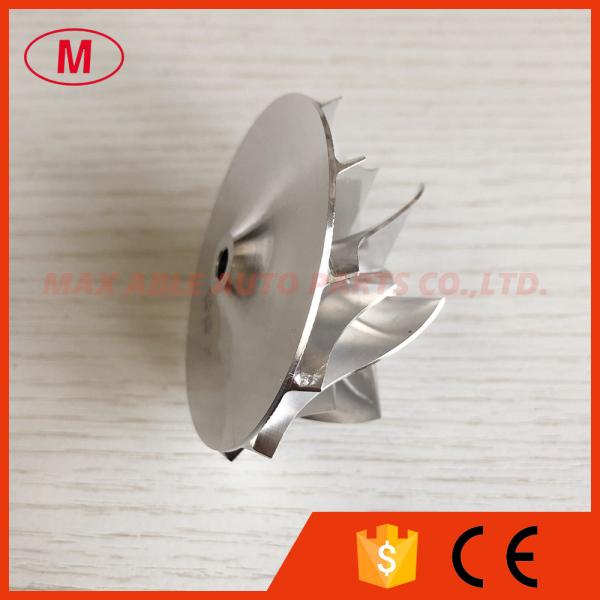

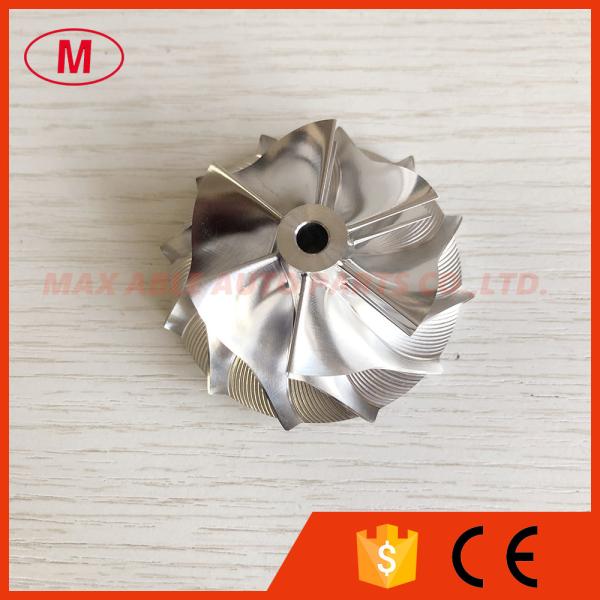

GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose aluminum 2618/billet compressor wheel
GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose aluminum 2618/billet compressor wheel
GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose aluminum 2618/billet compressor wheel
GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose aluminum 2618/billet compressor wheel
GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose aluminum 2618/billet compressor wheel
GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose aluminum 2618/billet compressor wheel
GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose aluminum 2618/billet compressor wheel
GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose aluminum 2618/billet compressor wheel
Specifications
Brand Name :
NO
Model Number :
GT15-25
Certification :
ISO
MOQ :
1PC
Payment Terms :
TT ,western union ,paypal
Supply Ability :
1000pcs
Delivery Time :
3-7 days
Packaging Details :
neutral packing
Description

.1.Model:GT15-25 forward

2.GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose turbo billet/milling/aluminum 2618 compressor wheel for BENZ 765155-0007

3.Size:

Nose diamter:11.49mm

inducer:43.36mm

Exduder:56.03mm

Tapered tip exducer:59.95mm

Tip height:4.40mm

Superback:3.68mm

Overall height:28.50mm

bore size :5.08mm

bore type:through

Trailing angle:75 degree

Cutback:0.0

Blade height:22.94mm

Splitter height:14.90mm

SP Height angle:0.00

It is custom size ,it is fit for OE compressor housing

6+6 blades

Forward rotation

Tapered tip angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

6.Application:

765155-0007

All the billet compressor wheels have been balanced.

The more models we also have.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance short nose aluminum 2618/billet compressor wheel
